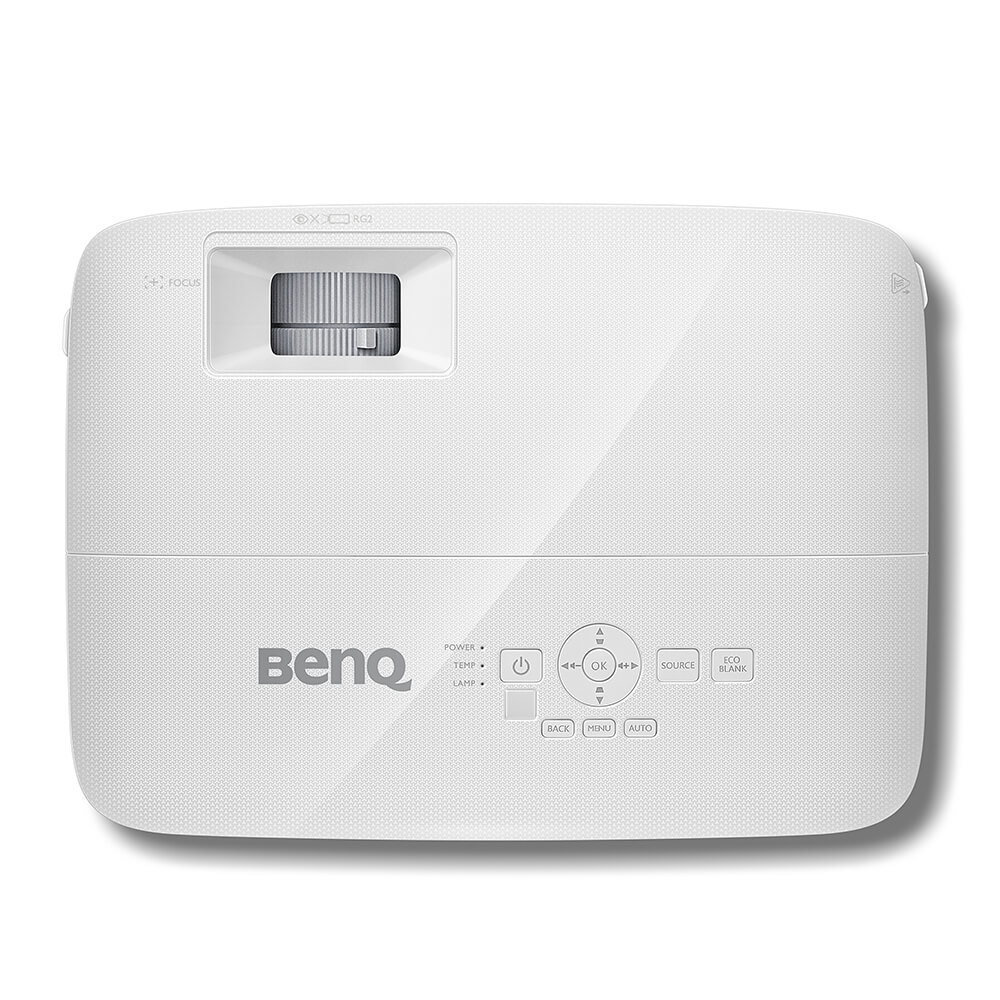

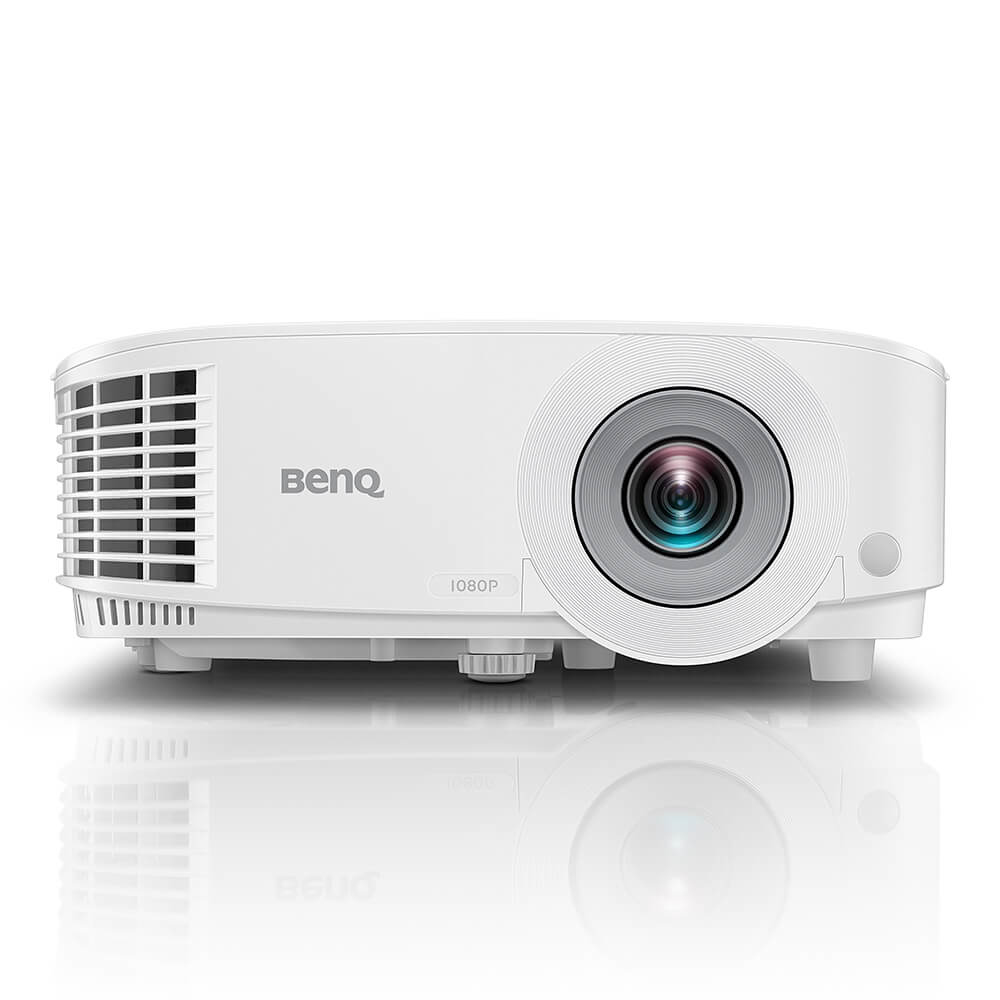

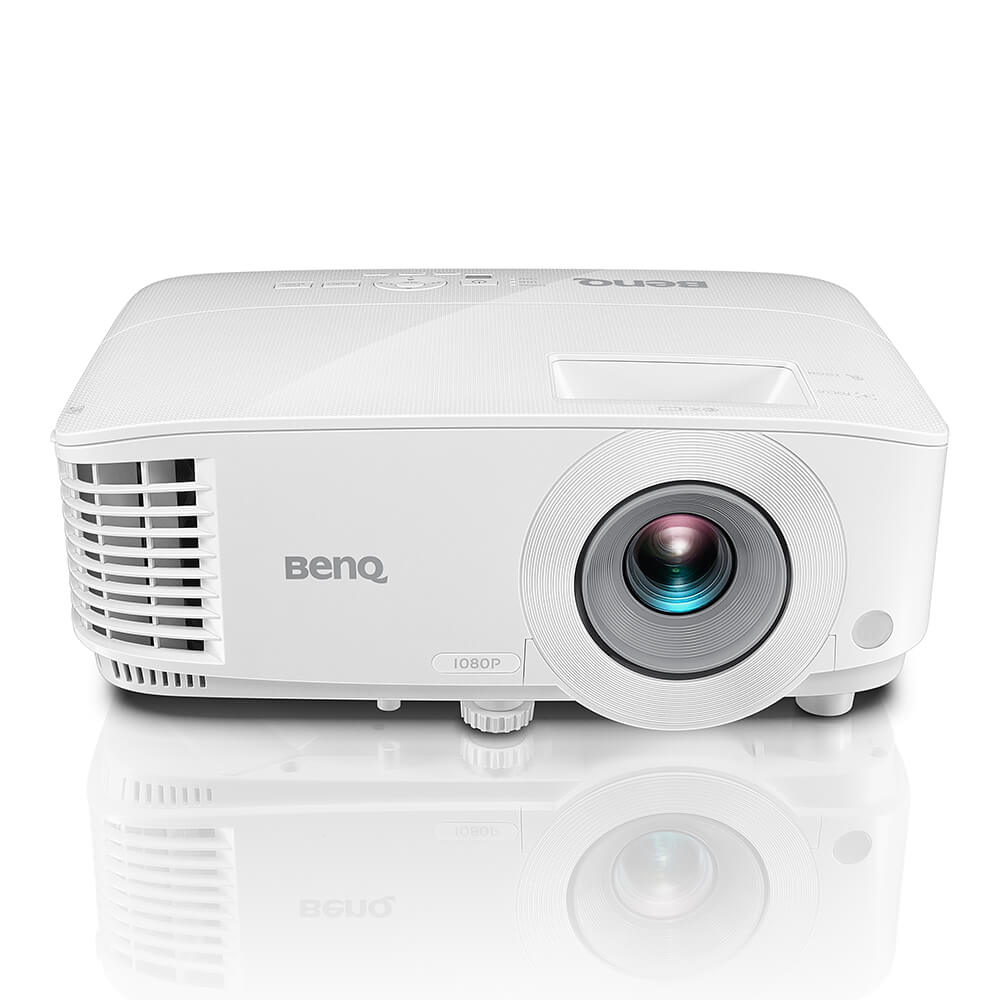

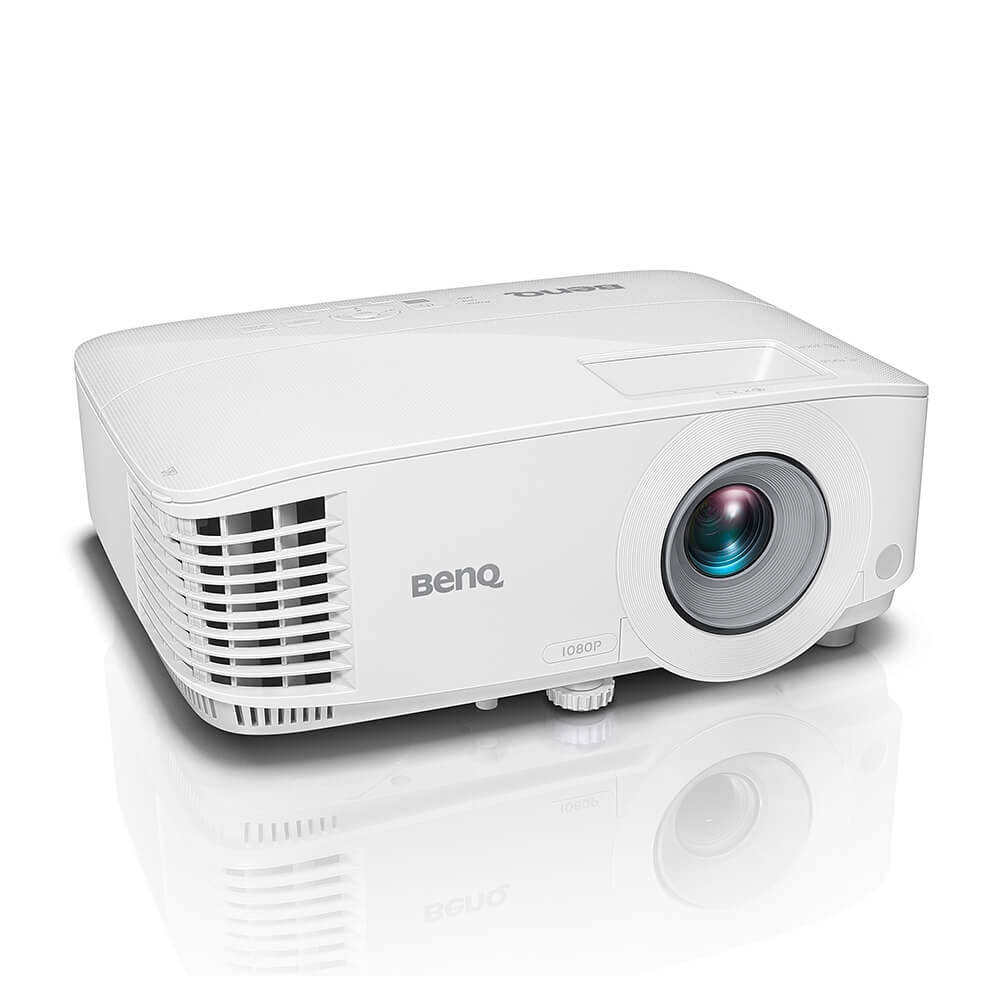

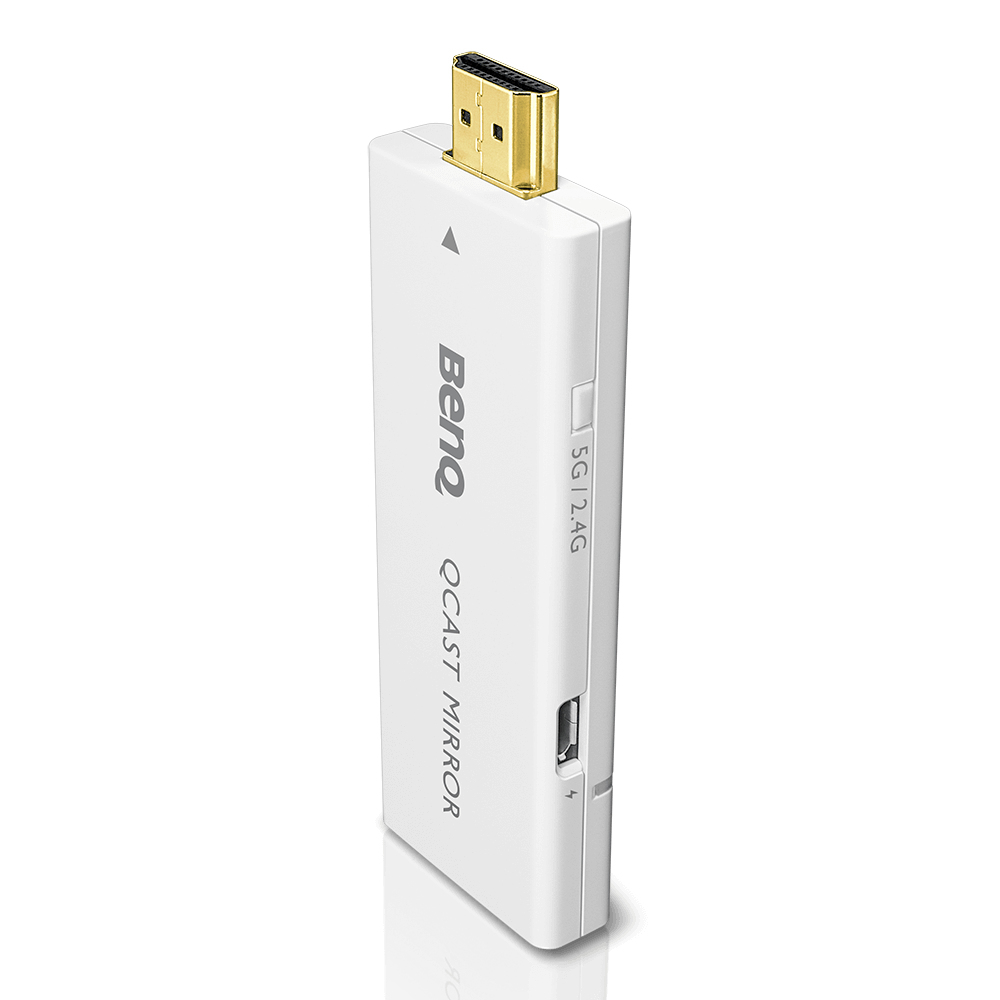

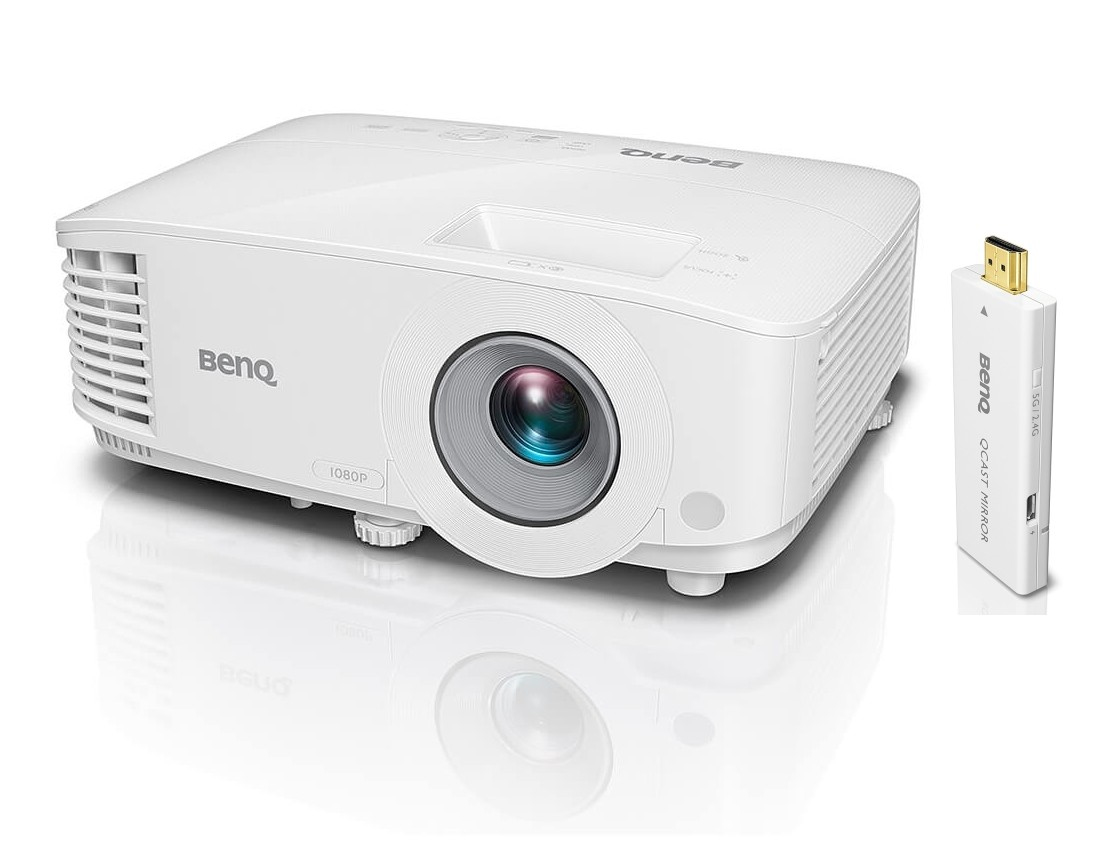

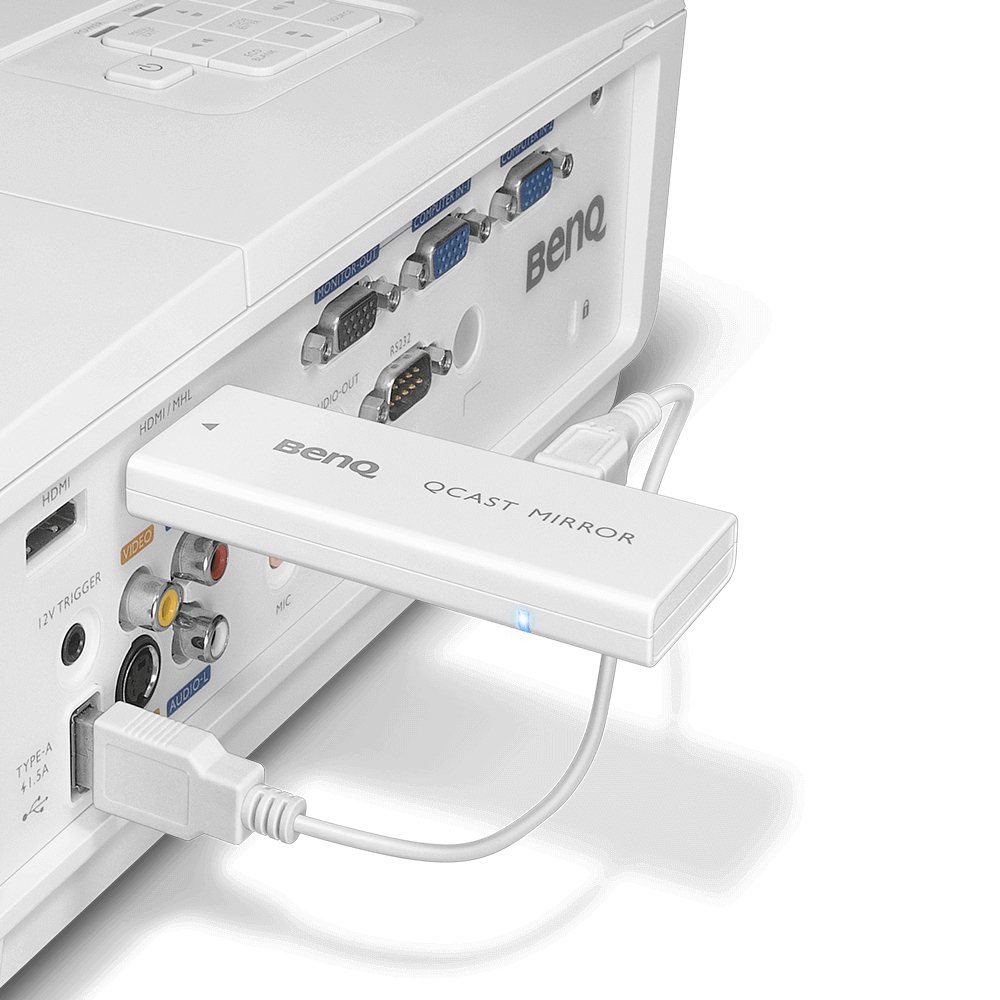

MH606 + QP20
Model MH606 + QP20Part no. BUNDLEBENQ7
74 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight2.3 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 2.3 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MH606 + QP20
- Part number
- BUNDLEBENQ7
- Also known as
- BenQ MH606 + QP20 Standard throw projector 3500 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
74 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp type | UHP |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.49 - 1.64:1 |
| Offset | 108% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Frame Sequential, Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

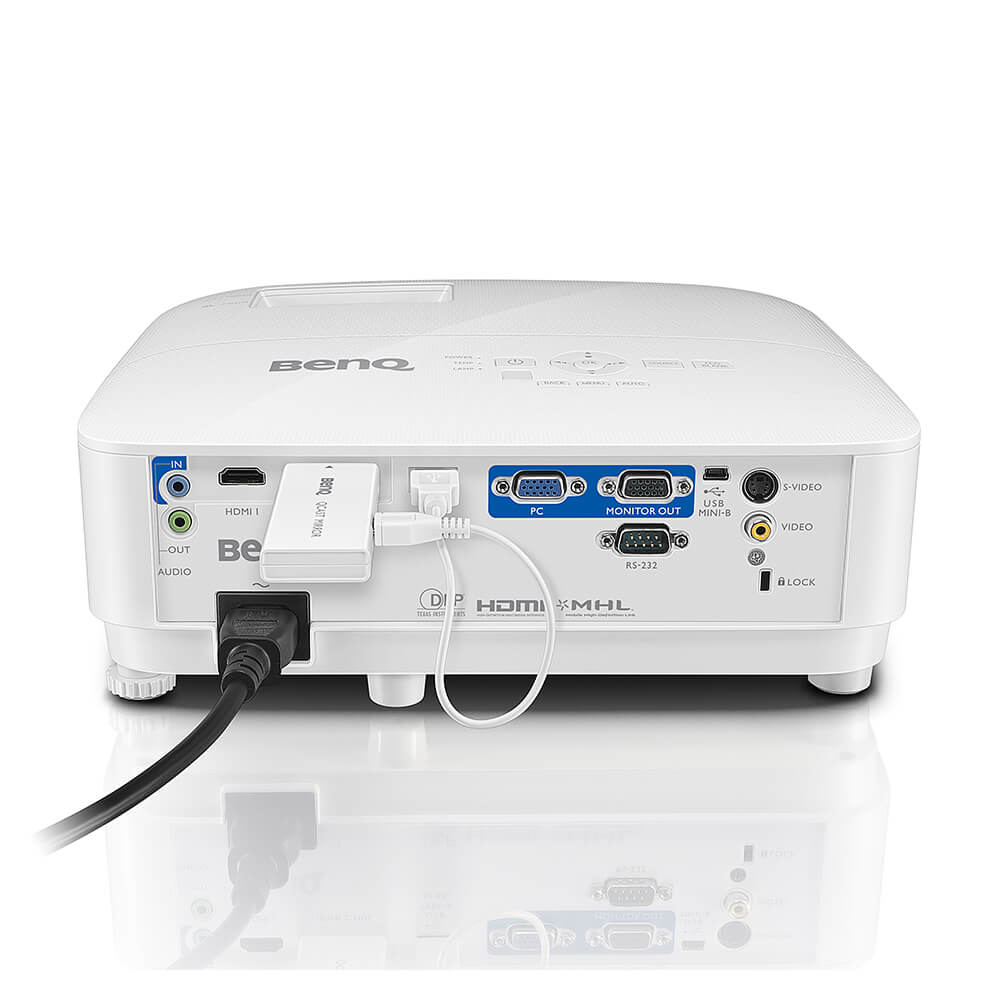

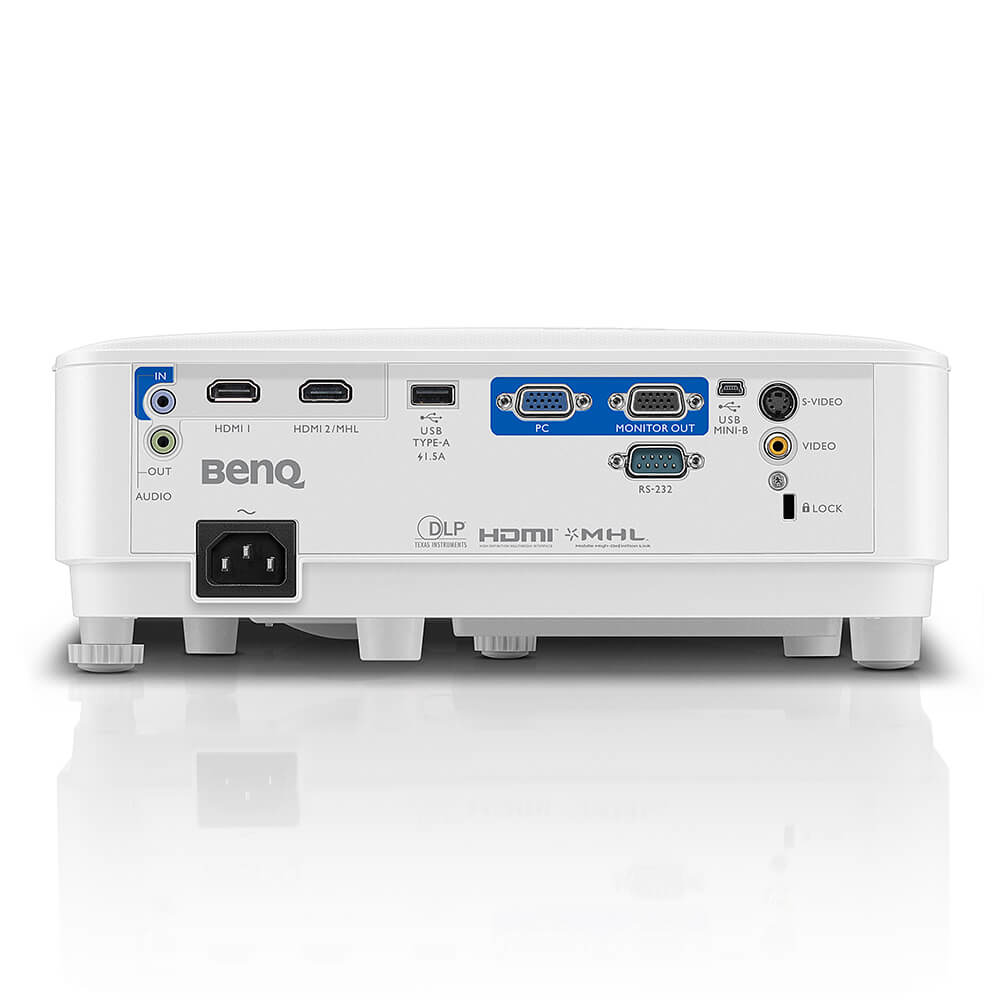

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| Mobile High-Definition Link (MHL) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 29 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
| Image formats supported | JPG |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.3 kg |
| Width | 296 mm |
| Depth | 221 mm |
| Height | 120 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC, VGA |
| Manual | Yes |
