MH535FHD data projector Portable projector 3600 ANSI lumens DLP 1080p (1920x1080) 3D White
Model MH535FHDEAN 840046040451
71 specifications
- Noise32 dB
- TypePortable projector
- Weight2.42 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Portable projector
- Weight
- 2.42 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MH535FHD
- Part number
- MH535FHD
- EAN / UPC
- 840046040451
- Also known as
- BenQ MH535FHD data projector Portable projector 3600 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
71 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 102 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | -40 - 40° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 23 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 203 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 19 - 22.65 mm |
| Aperture range (F-F) | 2.42 - 2.62 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.37 - 1.64 |
| Offset | 107% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

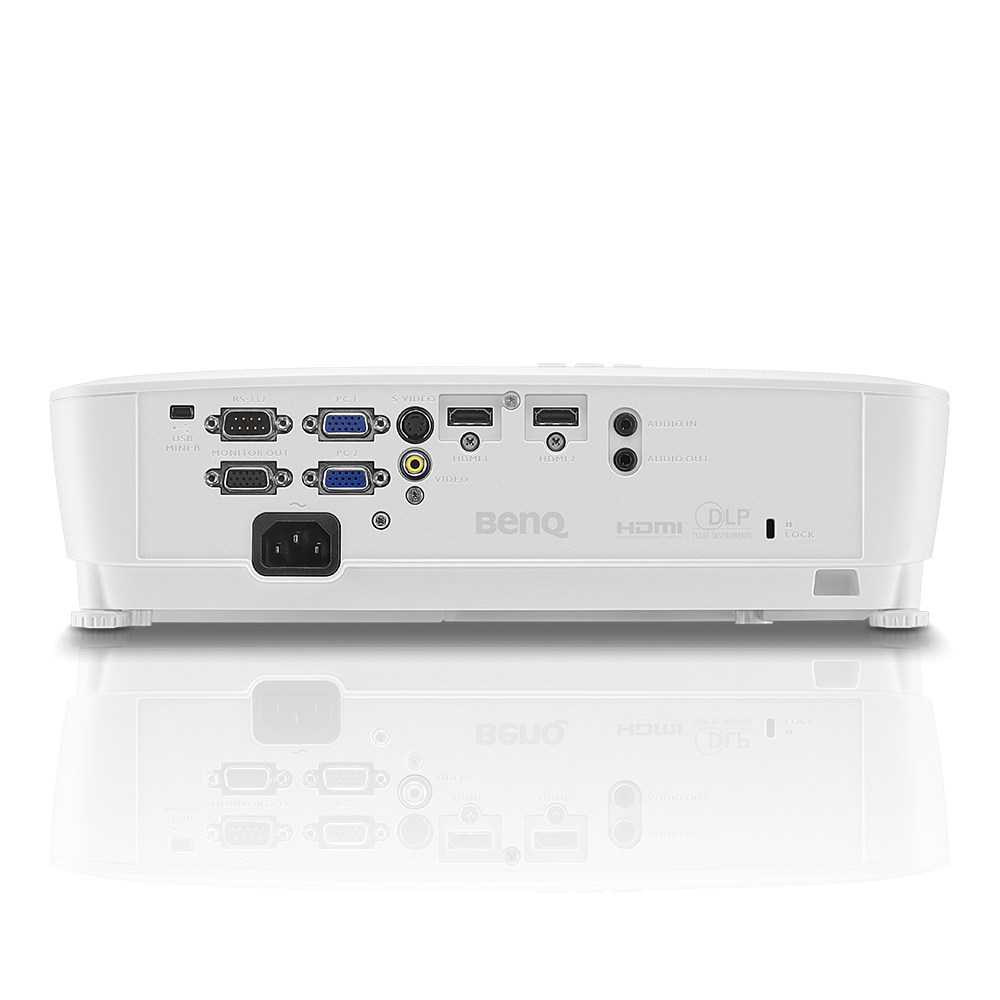

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| RF input | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Portable projector |
| Market positioning | Portable |
| Housing material | Plastic |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 252 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.42 kg |
| Width | 332.4 mm |
| Depth | 241.3 mm |
| Height | 99 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
