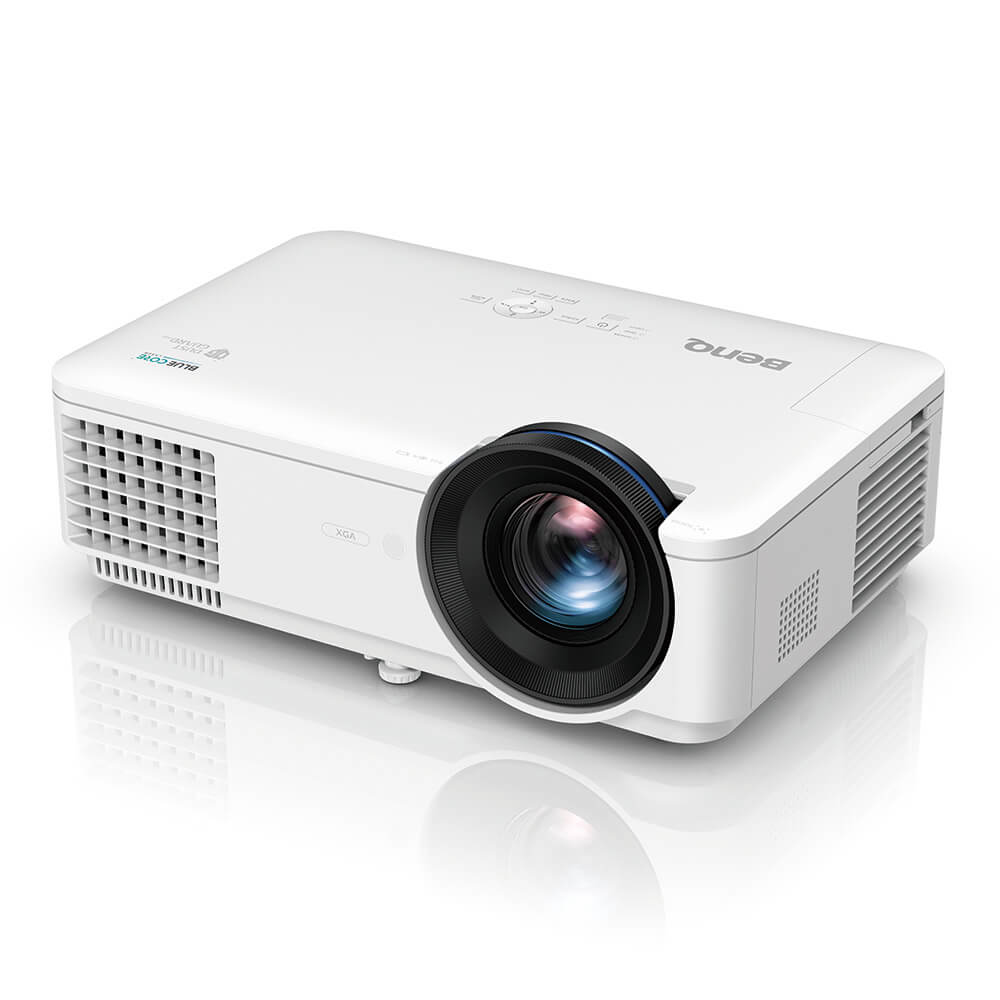

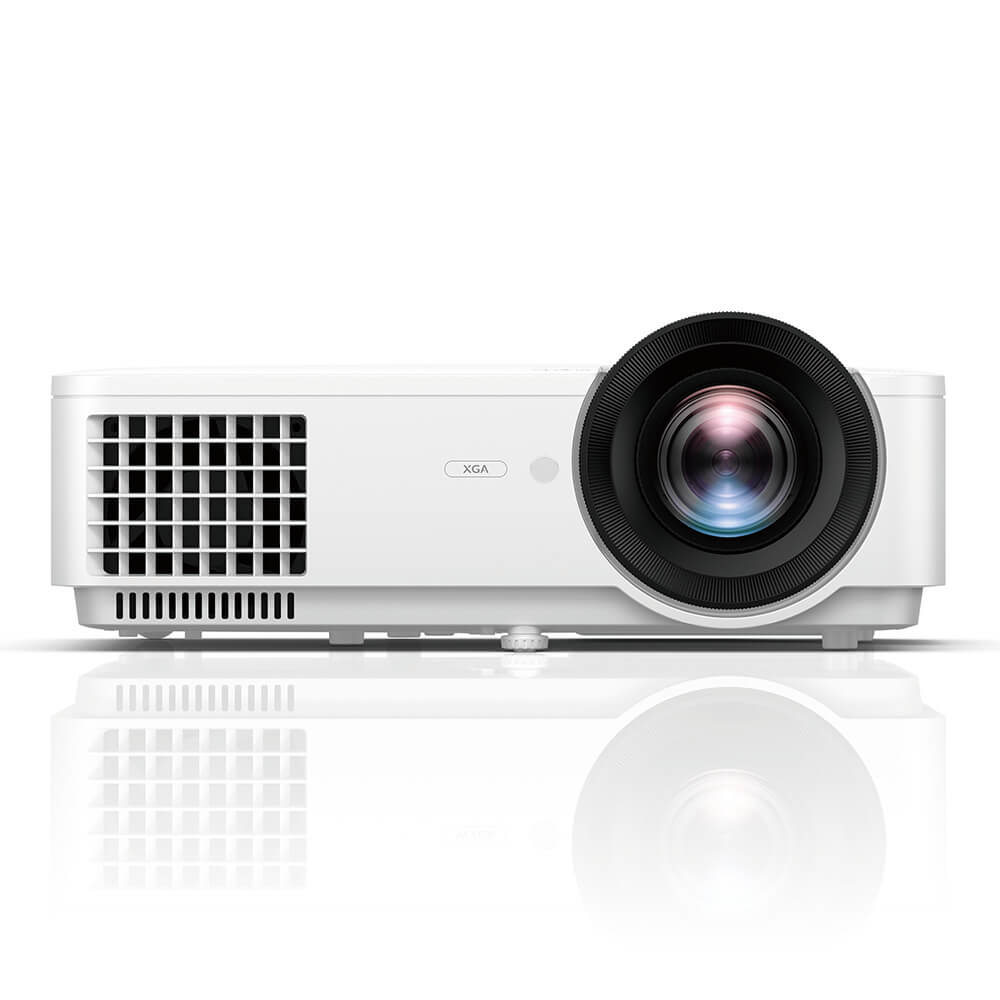

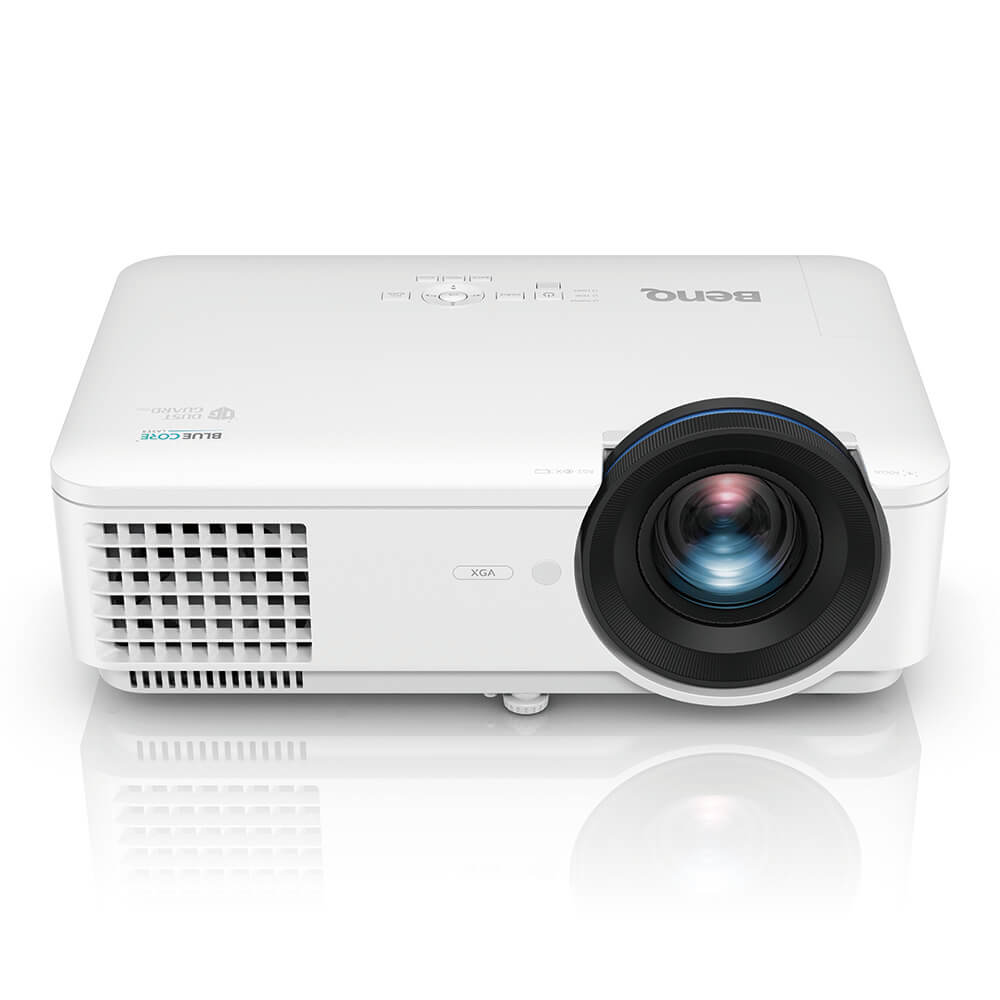

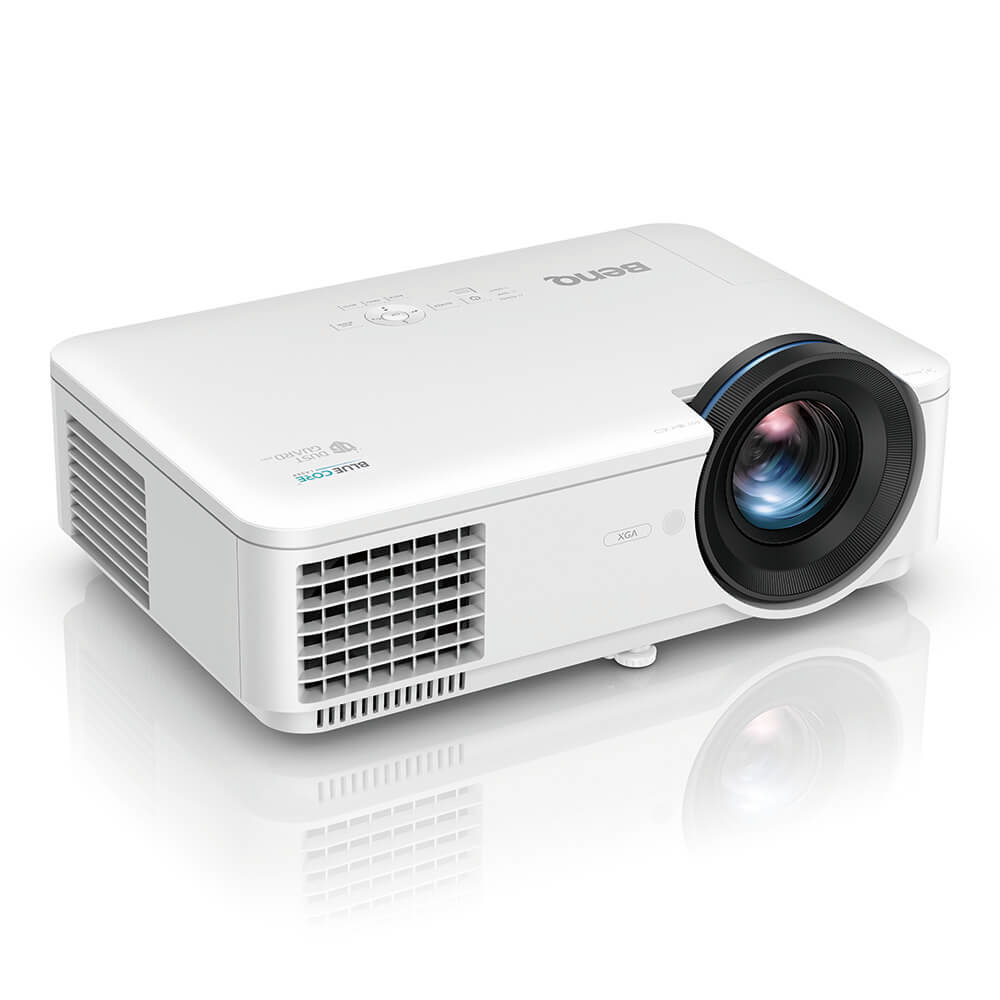

LX820ST data projector Standard throw projector 3600 ANSI lumens DLP WUXGA (1920x1200) White
Model LX820ST
76 specifications
- Noise33 dB
- TypeStandard throw projector
- Weight5.6 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Weight
- 5.6 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LX820ST
- Part number
- LX820ST
- Also known as
- BenQ LX820ST data projector Standard throw projector 3600 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
76 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 1524 - 3048 mm (60 - 120") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 7.46 mm |
| Throw ratio | 0.65 |
| Offset | 108.4% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| Number of OSD languages | 28 |
| Air filter | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 283 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 320 W |
| Power consumption (economy mode) | 234 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.6 kg |
| Width | 410 mm |
| Depth | 272 mm |
| Height | 158 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
