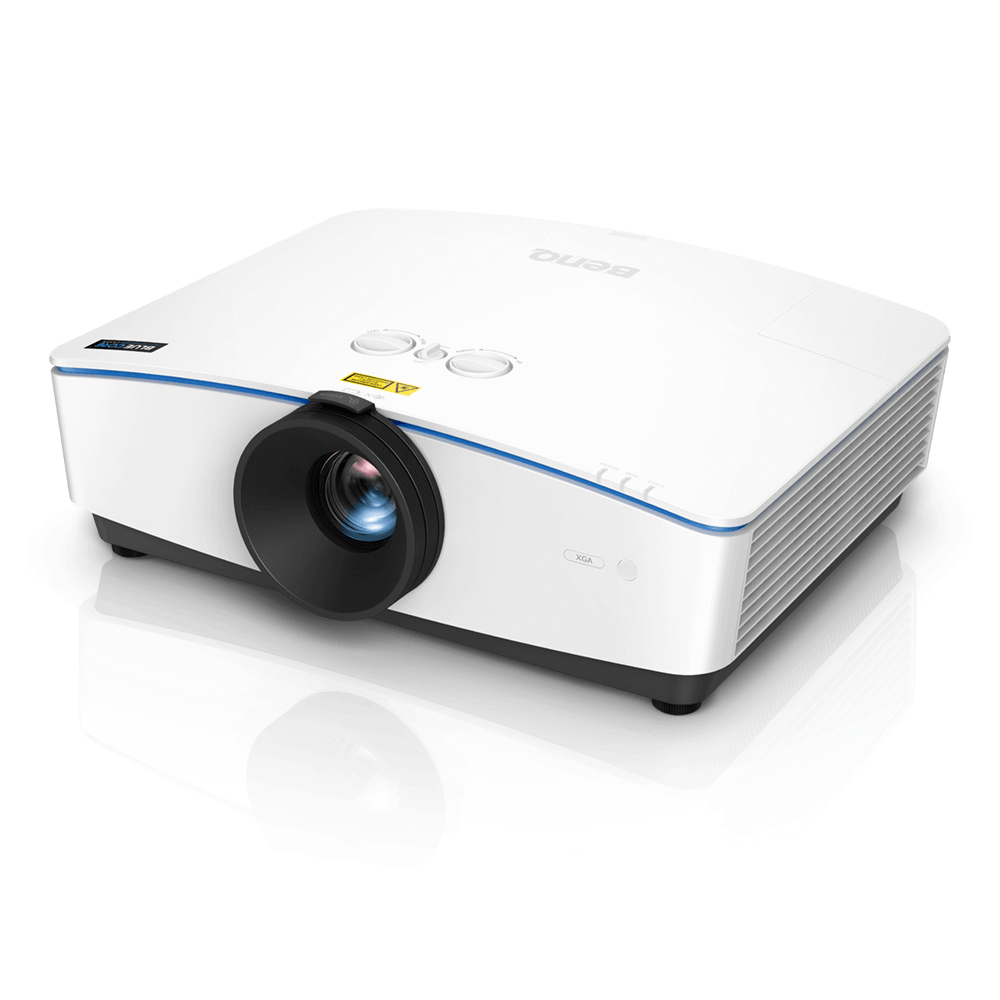

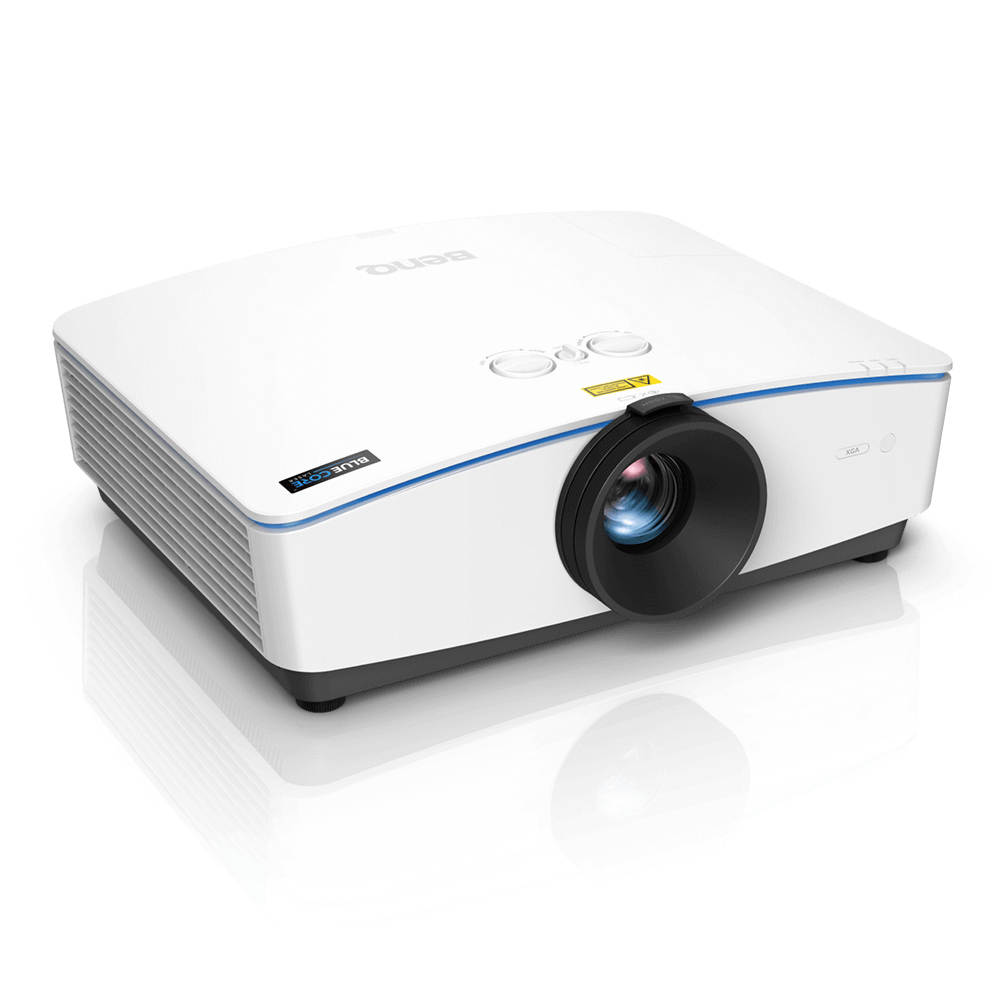

LX770 data projector Standard throw projector 5000 ANSI lumens DMD XGA (1024x768) 3D White
Model LX770EAN 840046038946
70 specifications
- Noise35 dB
- TypeStandard throw projector
- Weight13.8 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 35 dB
- Type
- Standard throw projector
- Weight
- 13.8 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LX770
- Part number
- LX770
- EAN / UPC
- 840046038946, 840046040130
- Also known as
- BenQ LX770 data projector Standard throw projector 5000 ANSI lumens DMD XGA (1024x768) 3D White
Specifications
70 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Zoom ratio | 1.5:1 |
| Throw ratio | 1.81 - 2.79 |
| Horizontal lens shift range | -7.8 - 7.8% |
| Vertical lens shift range | -6.3 - 6.3% |
| Offset | 124.5% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 32 dB |
| Preset modes | 3D, Bright, Presentation |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish |
| Number of OSD languages | 22 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 540 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 540 W |
| Power consumption (economy mode) | 420 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 13.8 kg |
| Width | 538 mm |
| Depth | 184 mm |
| Height | 400 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
