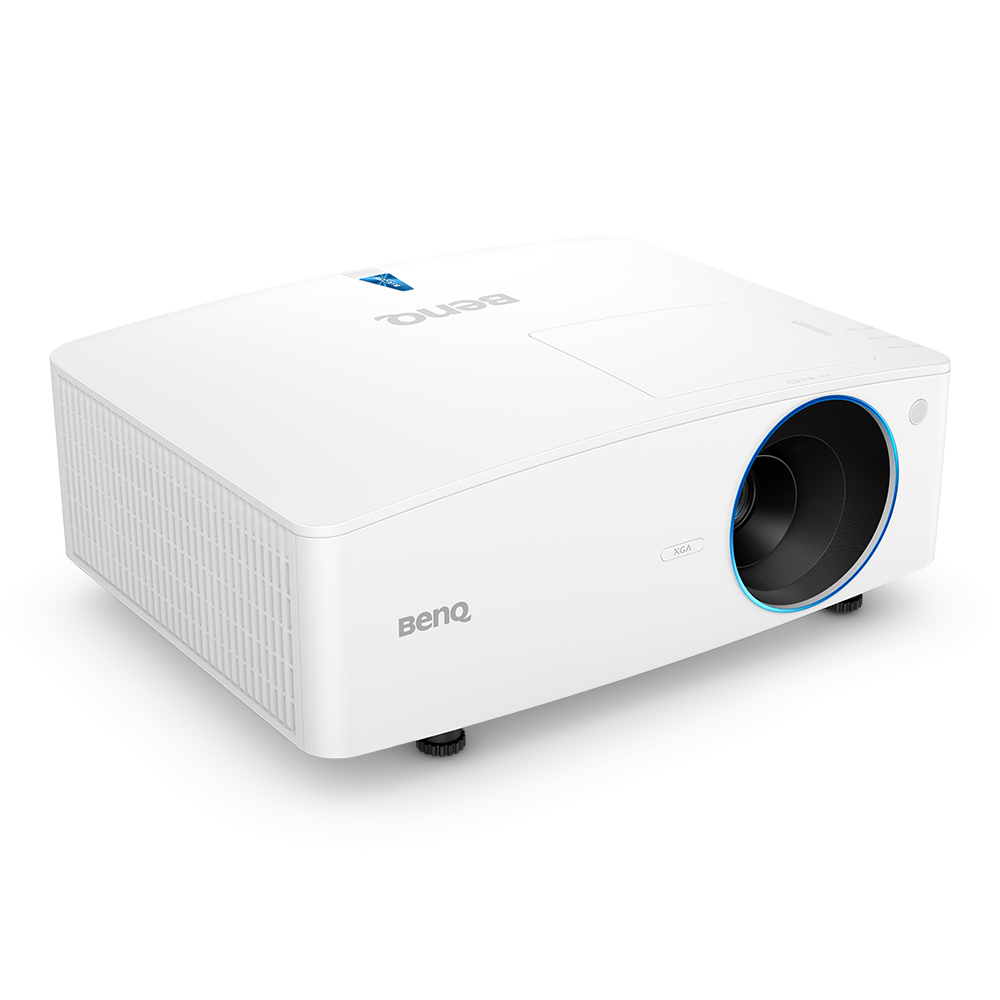

LX710 Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) White
Model LX710Part no. 9H.J3W77.15EEAN 4718755079320
70 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight6.3 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 6.3 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LX710
- Part numbers
- 9H.J3W77.15E, LX710, 9H.J3W77.15L
- EAN / UPC
- 4718755079320
- Also known as
- BenQ LX710 Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) White
Specifications
70 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 4:3 |
| Smart projector | Yes |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | ± 30° |
| Keystone correction, vertical | ± 30° |
| Matrix size | 1.4 cm (0.55") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom ratio | 1.3:1 |
| Optical zoom | 1.3x |
| Throw ratio | 1.51 - 1.97 |
| Offset | 107.5% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RJ-45 |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 29 dB |
| Projection modes | Ceiling, Front, Rear |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, Dutch, English, Spanish, Farsi, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Turkish, Vietnamese |
| Number of OSD languages | 30 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 392 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 392 W |
| Power consumption (economy mode) | 320 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.3 kg |
| Width | 416 mm |
| Depth | 166 mm |
| Height | 312 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| 3D glasses included | Yes |
| Cables included | HDMI |
| Mounting brackets included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
