LW655 Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
Model LW655Part no. 9H.JV377.74EEAN 4718755098529
67 specifications
- Battery8000 mAh
- Noise32 dB
- TypeStandard throw projector
- Weight3 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
Overview
- Battery
- 8000 mAh
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 3 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Brand
- BenQ
- Category
- Data Projector
- Model
- LW655
- Part number
- 9H.JV377.74E
- EAN / UPC
- 4718755098529
- Also known as
- BenQ LW655 Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
Specifications
67 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | No |
| Screen size compatibility | 0 - 2540 mm (0 - 100") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.901 - 21.6076 mm |
| Aperture range (F-F) | 2.43 - 2.78 |
| Zoom capability | Yes |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.187~1.544 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Video colour modes | DICOM simulation mode, Presentation, Vivid |

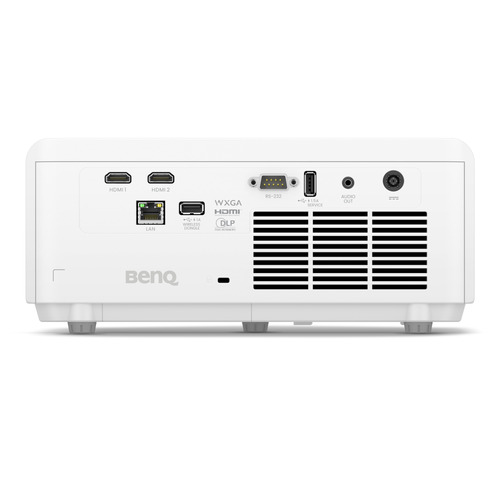

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC/Battery |
| Power consumption (typical) | 170 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 8000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 279.2 mm |
| Depth | 120.5 mm |
| Height | 224.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Manual | Yes |
