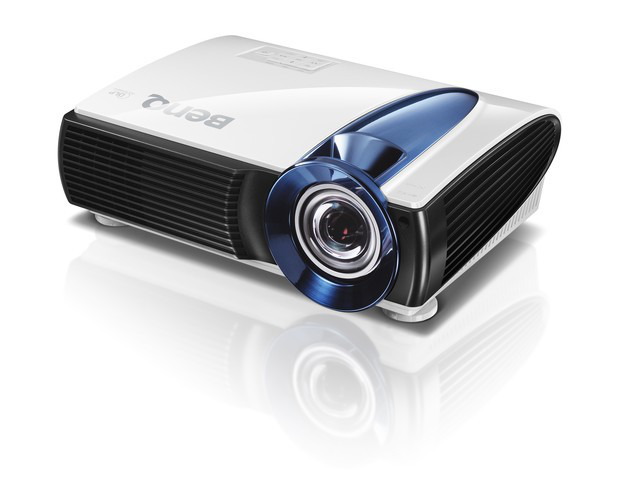

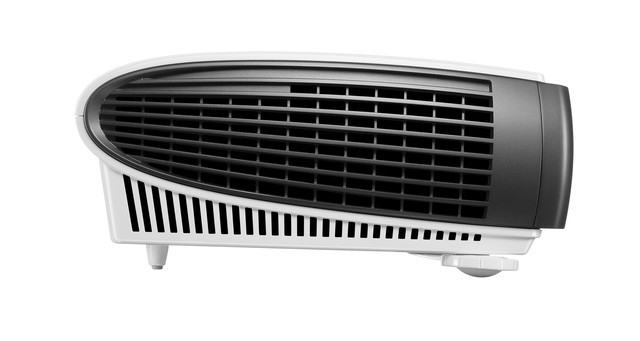

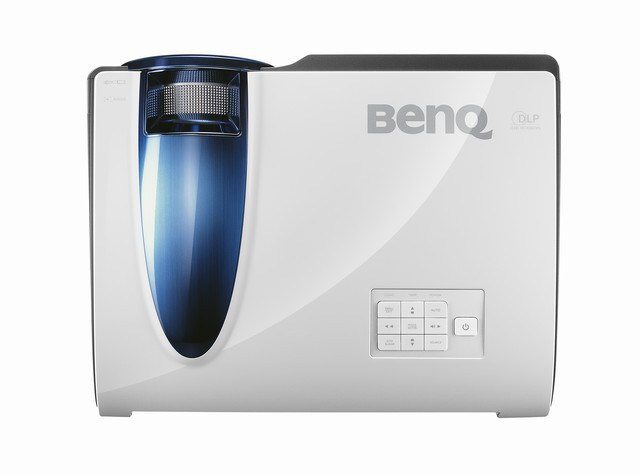

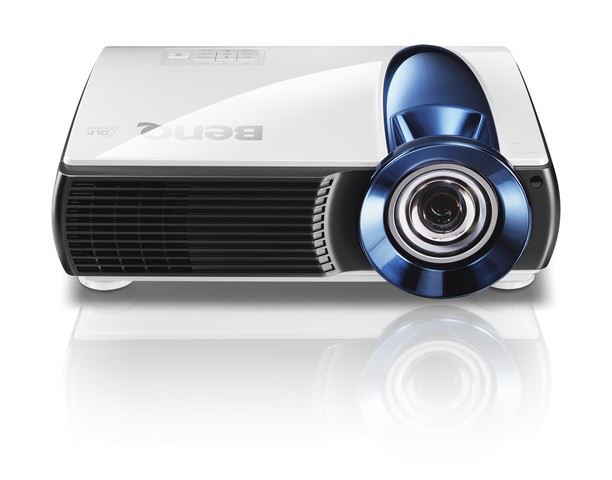

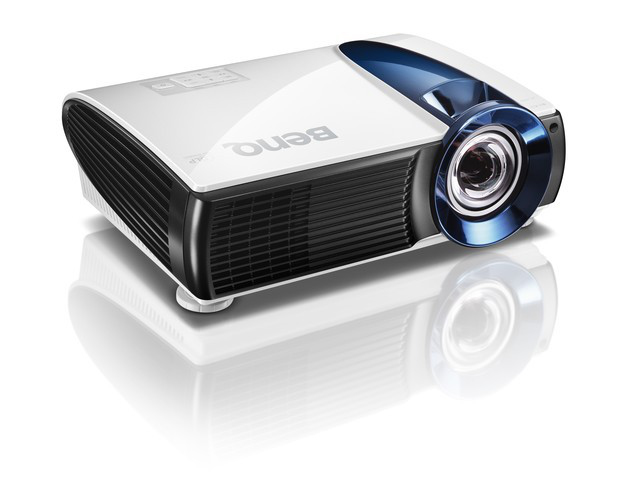

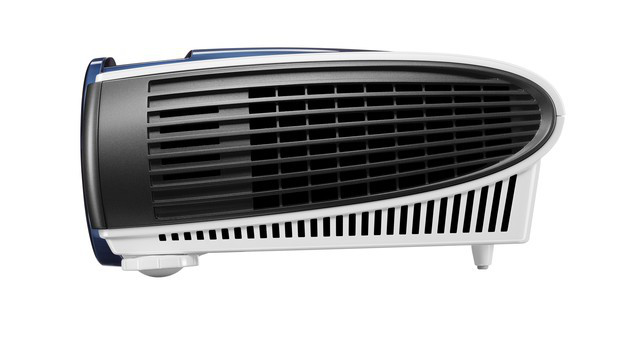

BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White
Model LW61STPart no. 9H.J5W77.14EEAN 4718755032615
76 specifications
- ConnectivityWired
- Noise33 dB
- TypeShort throw projector
- Weight5.1 kg
- ColourBlack, Blue, White
- Projector brightness2000 ANSI lumens
Overview
- Connectivity
- Wired
- Noise
- 33 dB
- Type
- Short throw projector
- Weight
- 5.1 kg
- Colour
- Black, Blue, White
- Projector brightness
- 2000 ANSI lumens
- Brand
- BenQ
- Category
- Data Projector
- Model
- LW61ST
- Part numbers
- 9H.J5W77.14E, 9H.J5W77.14U, 9H.JSW77.14E, 9H.J5W77.14E+MOUNT, 9H.J5W77.14X, LW61ST
- EAN / UPC
- 4718755032615, 840046023706
- Also known as
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White
Specifications
76 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Screen size compatibility | 2032 - 7620 mm (80 - 300") |
| Contrast ratio (dynamic) | 80000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 31 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | ± 30° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 6.95 mm |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Zoom ratio | Fixed |
| Digital zoom | 2x |
| Throw ratio | 0.49 - 0.91:1 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
| 3D Ready | Yes |
| Supported graphics resolutions | 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 640 x 480 (VGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

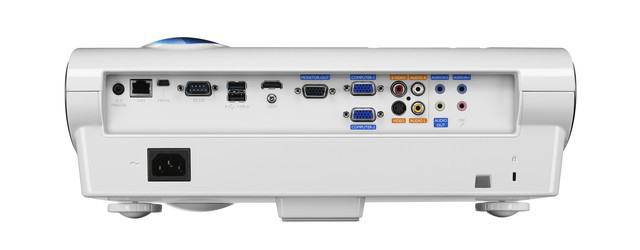

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Audio (L/R) in | 2 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A, USB Type-B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 32 dB |
| HDCP | No |
| Preset modes | Cinema, Dynamic, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, INC, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| Noise reduction | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | Black, Blue, White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.1 kg |
| Width | 393.5 mm |
| Depth | 298 mm |
| Height | 149.6 mm |
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 16:10 |
| Audio input | 2 |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 393.5 x 298 x 149.6 mm |
| RS-232 ports | 1 |
What people say
Reviews & ratings
BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White
No reviews yet
Be the first to tell others how BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White
All data projector comparisons- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsBenQ W7000 Standard throw projector 2000 ANSI lumens DLP 1080p (1920x1080) 3D BlackCompare specs
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsBenQ LX60ST data projector Short throw projector 2500 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, WhiteCompare specs
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsBenQ MS500H Standard throw projector 2700 ANSI lumens DLP SVGA (800x600) 3D BlackCompare specs

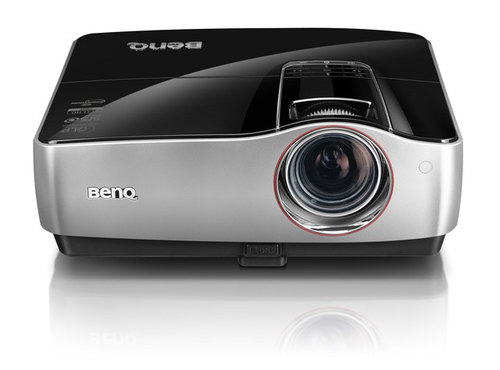

- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsBenQ SH910 4000 ANSI lumens DLP 1080p (1920x1080) Black, SilverCompare specs
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsASUS P1 Portable projector 200 ANSI lumens DLP WXGA (1280x800) BlackCompare specs
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsEpson PowerLite Pro G5750WUCompare specs
- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsAcer P1220 2700 ANSI lumens DLP XGA (1024x768) 3D BlackCompare specs

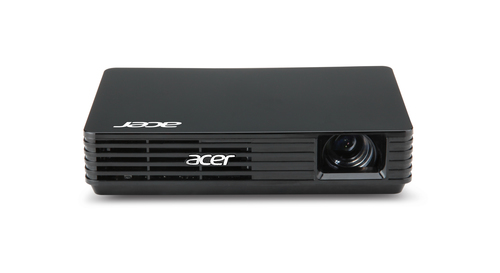

- BenQ LW61ST data projector Short throw projector 2000 ANSI lumens DLP WXGA (1280x800) 3D Black, Blue, White vsAcer C120 LEDCompare specs
