LU960ST Standard throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Model LU960STPart no. 9H.JN577.25EEAN 3548383381011
71 specifications
- TypeStandard throw projector
- Weight12 kg
- ColourBlack
- Projector brightness5500 ANSI lumens
- Light source typeLaser
- Zoom ratio1.1:1
Overview
- Type
- Standard throw projector
- Weight
- 12 kg
- Colour
- Black
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Laser
- Zoom ratio
- 1.1:1
- Brand
- BenQ
- Category
- Data Projector
- Model
- LU960ST
- Part numbers
- 9H.JN577.25E, LU960ST
- EAN / UPC
- 3548383381011, 4718755084041
- Also known as
- BenQ LU960ST Standard throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Specifications
71 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 38000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | F/# = 1.9 ~ 1.954, f = 8.14 ~ 8.921mm |
| Zoom ratio | 1.1:1 |
| Throw ratio | 0.77-0.84 |
| Horizontal lens shift range | -24 - 24% |
| Vertical lens shift range | -62 - 62% |
| Offset | 0% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |

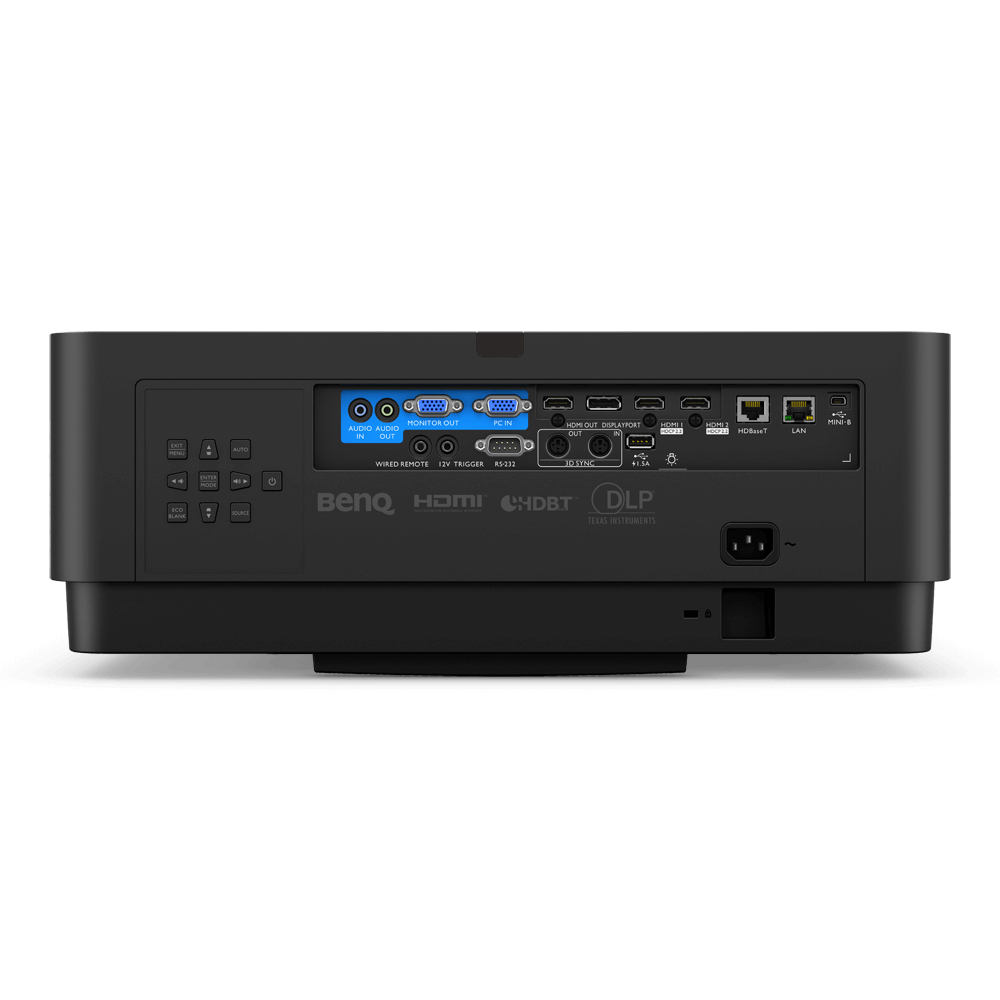

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0a |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| 3D sync port | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 28 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 450 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 500 W |
| Power consumption (economy mode) | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12 kg |
| Width | 479.6 mm |
| Depth | 402 mm |
| Height | 182.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
