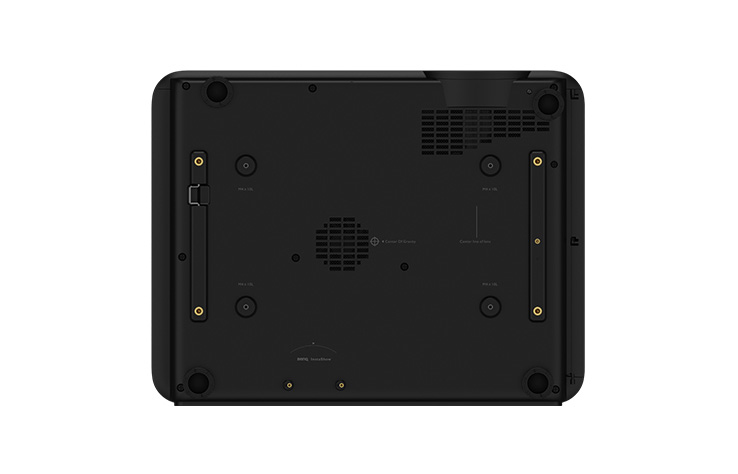

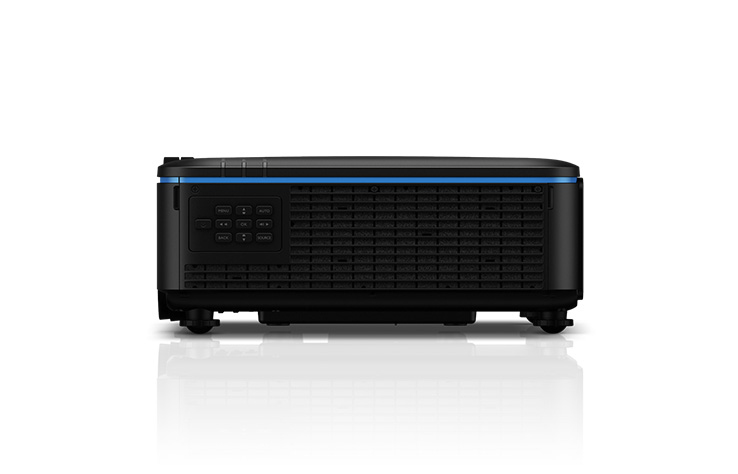

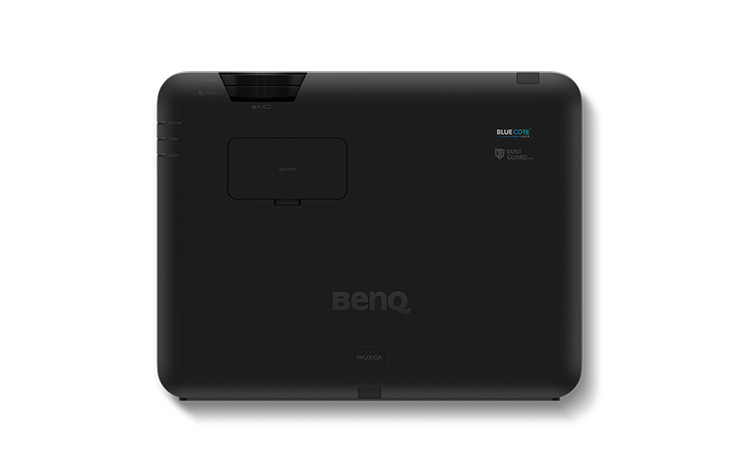

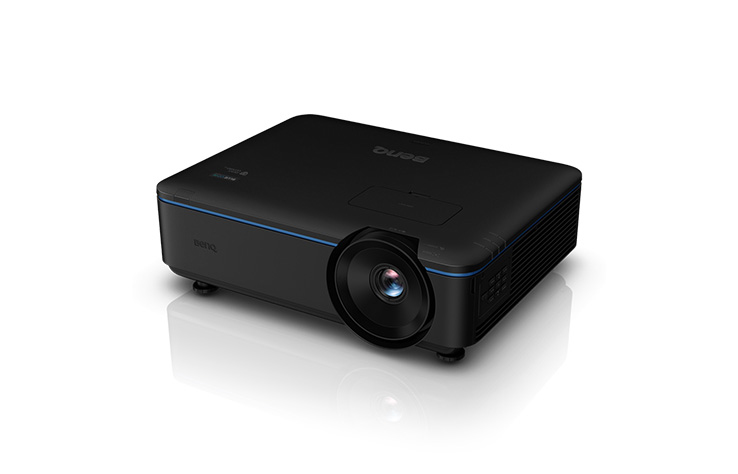

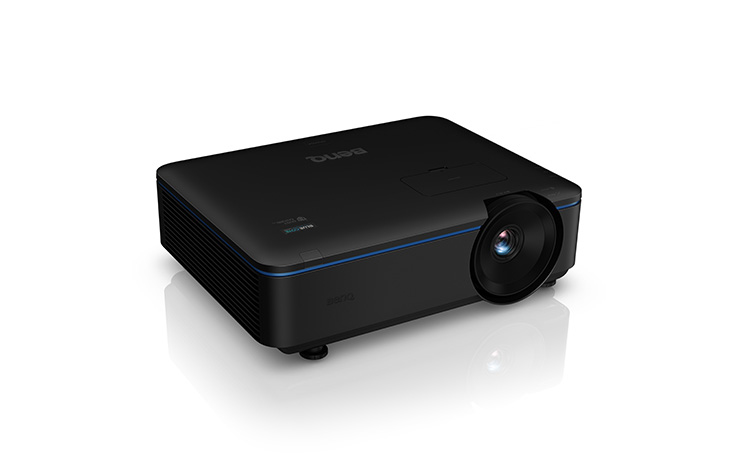

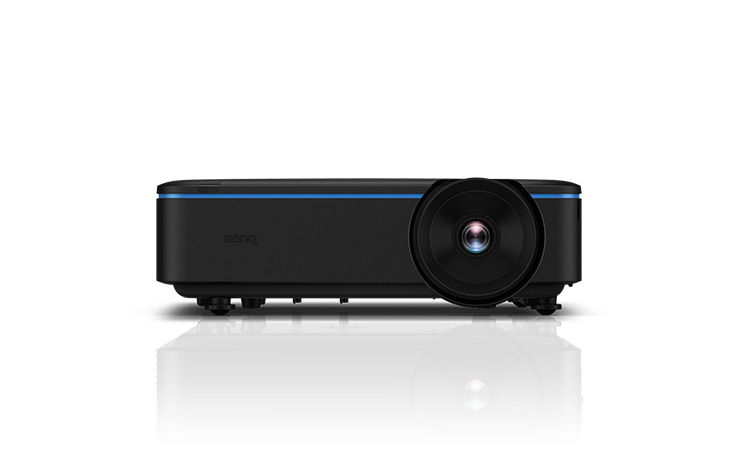

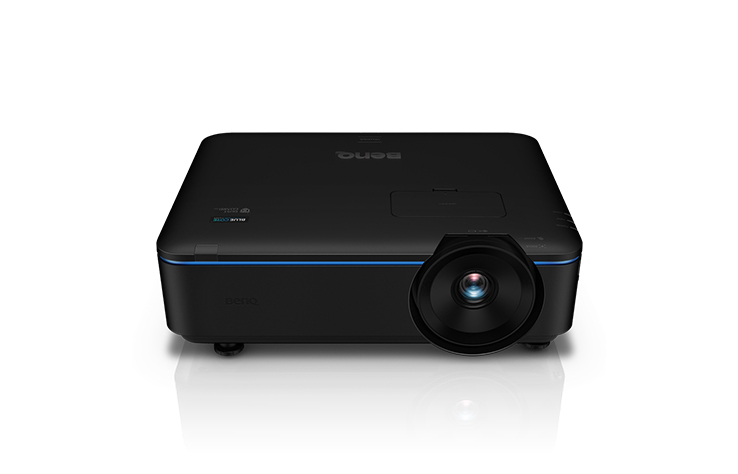

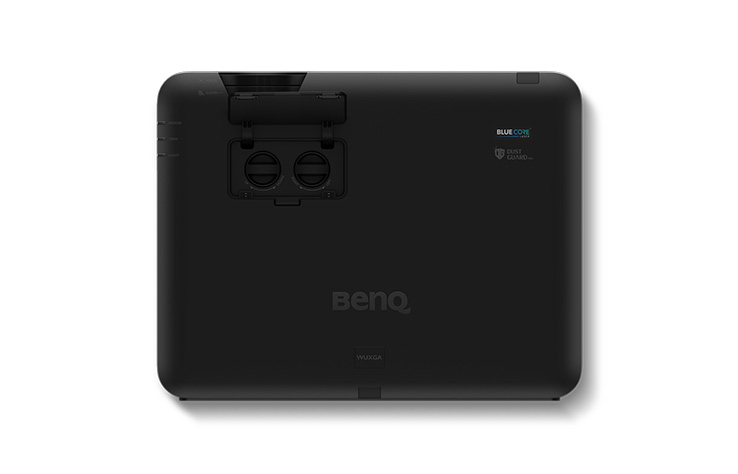

LU951 Standard throw projector 5200 ANSI lumens DLP WUXGA (1920x1200) Black
Model LU951Part no. 9H.JJ677.18EEAN 4718755076961
87 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight9.4 kg
- ColourBlack
- Projector brightness5200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 9.4 kg
- Colour
- Black
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LU951
- Part numbers
- 9H.JJ677.18E, 9H.JJ677.14E, LU951
- EAN / UPC
- 4718755076961
- Also known as
- BenQ LU951 Standard throw projector 5200 ANSI lumens DLP WUXGA (1920x1200) Black
Specifications
87 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance (wide) | 1.75 - 5.83 m |
| Projection distance (tele) | 2.8 - 9.32 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 14.3 - 22.9 mm |
| Aperture range (F-F) | 1.81 - 2.1 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.36 - 2.18 |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

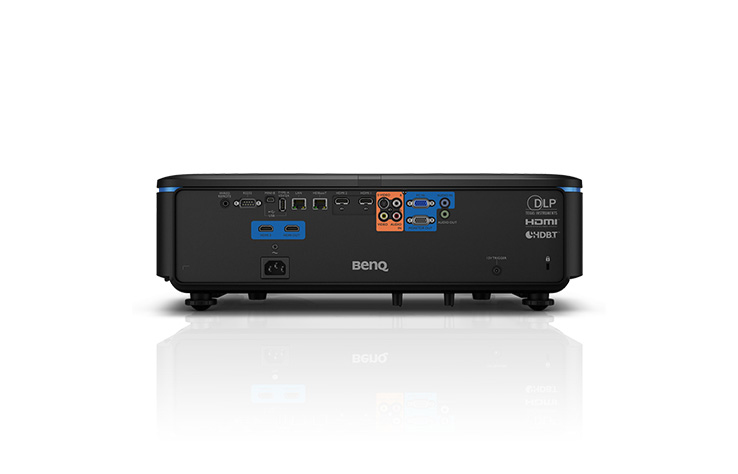

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 4 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 35 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Swahili, Thai, Turkish, Vietnamese |
| Number of OSD languages | 30 |
| Air filter | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 475 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 530 W |
| Power consumption (economy mode) | 365 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.4 kg |
| Width | 490 mm |
| Depth | 380 mm |
| Height | 159 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
