LU935ST Short throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Model LU935STPart no. 9H.JNC77.15REAN 840046044176
65 specifications
- Noise39 dB
- TypeShort throw projector
- Weight7 kg
- ColourBlack
- Projector brightness5500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 39 dB
- Type
- Short throw projector
- Weight
- 7 kg
- Colour
- Black
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LU935ST
- Part numbers
- 9H.JNC77.15R, 9H.JNC77.15E, 9H.JNC77.15L
- EAN / UPC
- 840046044176, 4718755084188
- Also known as
- BenQ LU935ST Short throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Specifications
65 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 8.6 - 9.4 mm |
| Aperture range (F-F) | 1.83 - 1.86 |
| Zoom type | Manual |
| Throw ratio | 0.81 - 0.89 |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
| Offset | 0% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Frame Sequential, Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

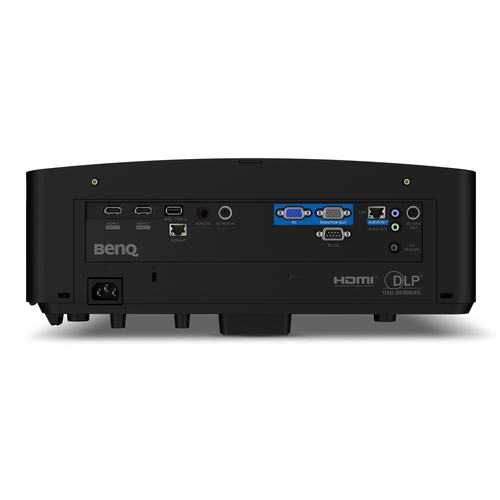

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0a |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| 3D sync port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 39 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 30 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 440 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 495 W |
| Power consumption (economy mode) | 315 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
| Width | 416 mm |
| Depth | 351 mm |
| Height | 166 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | Wired |
| Batteries included | Yes |
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| Security updates end date | 31/12/2024 |
