LK970/DLP 4K 5000L
Model LK970/DLP 4K 5000LPart no. LK970EAN 840046035297
61 specifications
- Noise37 dB
- TypeLarge venue projector
- Weight19.2 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Large venue projector
- Weight
- 19.2 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LK970/DLP 4K 5000L
- Part number
- LK970
- EAN / UPC
- 840046035297, 3540260178370, 4718755070396
- Also known as
- BenQ LK970/DLP 4K 5000L Large venue projector 5000 ANSI lumens 4K (4096x2400) Black
Specifications
61 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 4K (4096x2400) |
| Contrast ratio (typical) | 100000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 2413 - 5080 mm (95 - 200") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 60000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Aperture range (F-F) | 2.13 - 2.38 |
| Zoom ratio | 1.47:1 |
| Throw ratio | 1.38 - 2.02:1 |
| Horizontal lens shift range | -25 - 25% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

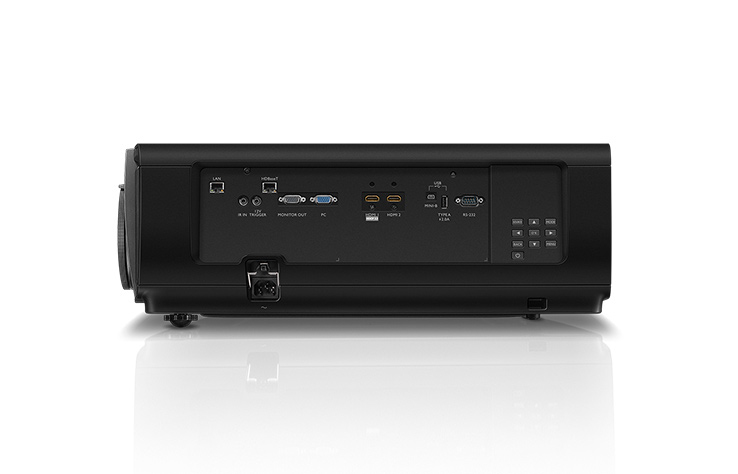

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Thai, Turkish |
| Number of OSD languages | 28 |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Desktop, Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 540 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 595 W |
| Power consumption (PowerSave) | 430 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 19.2 kg |
| Width | 470.7 mm |
| Depth | 564.7 mm |
| Height | 224.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Manual | Yes |
