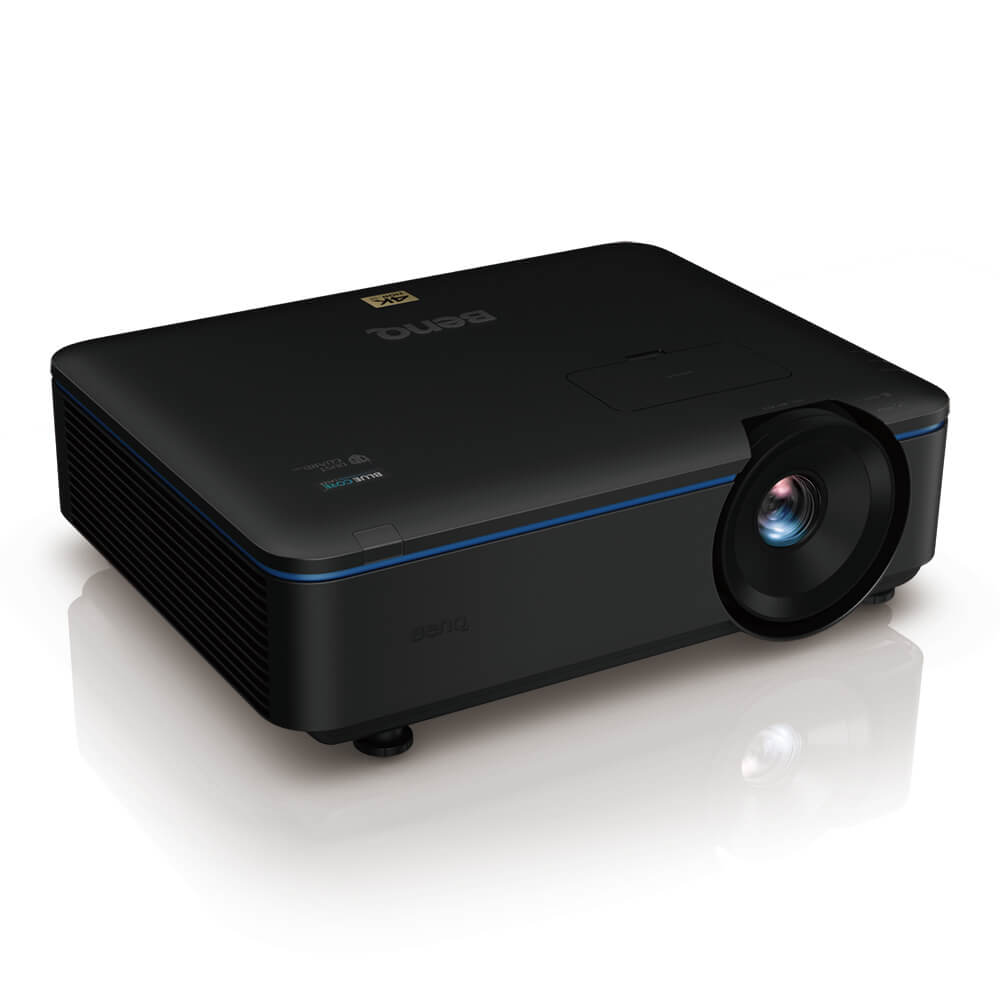

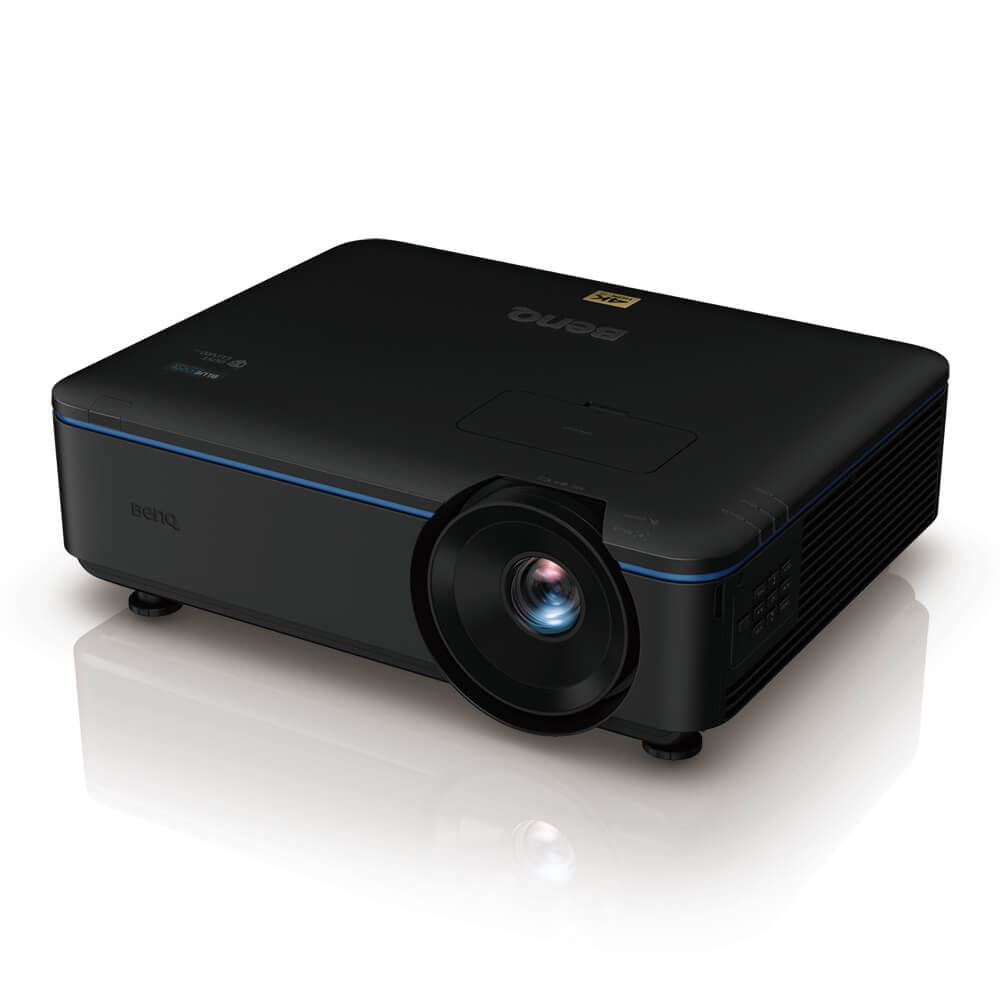

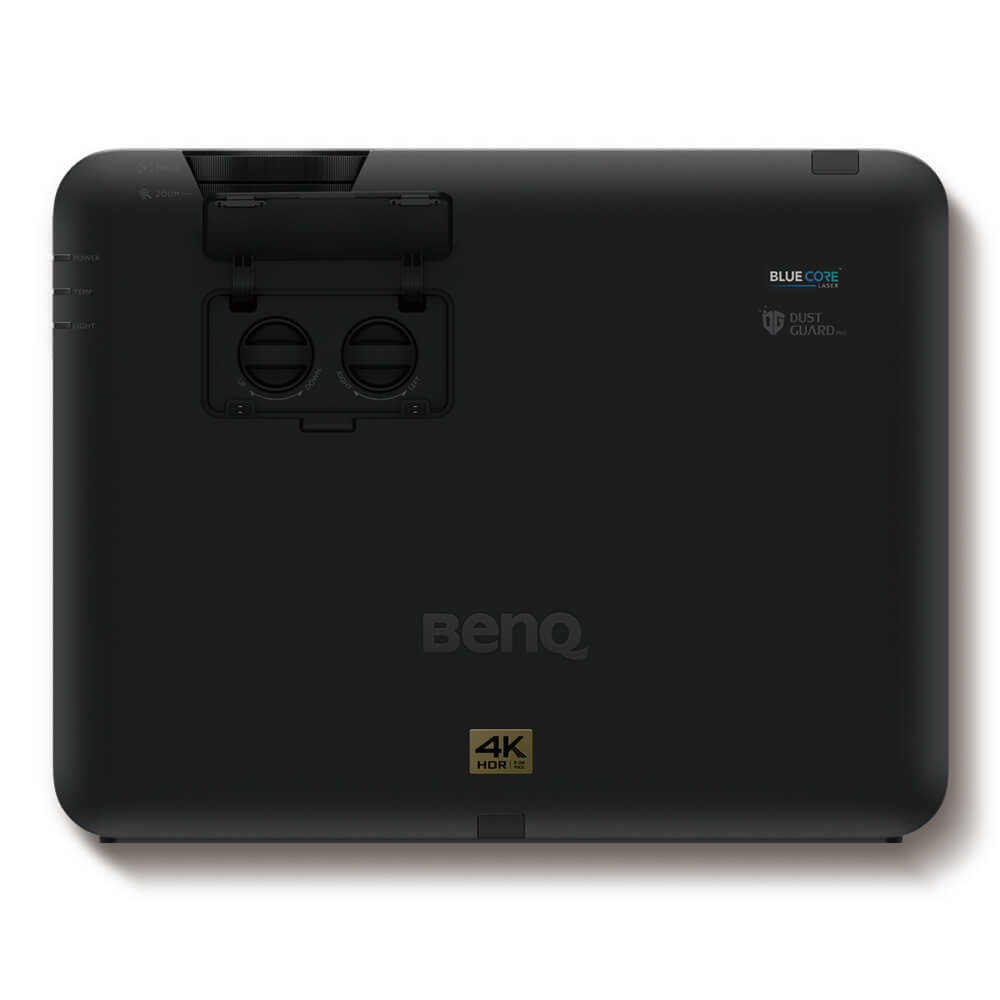

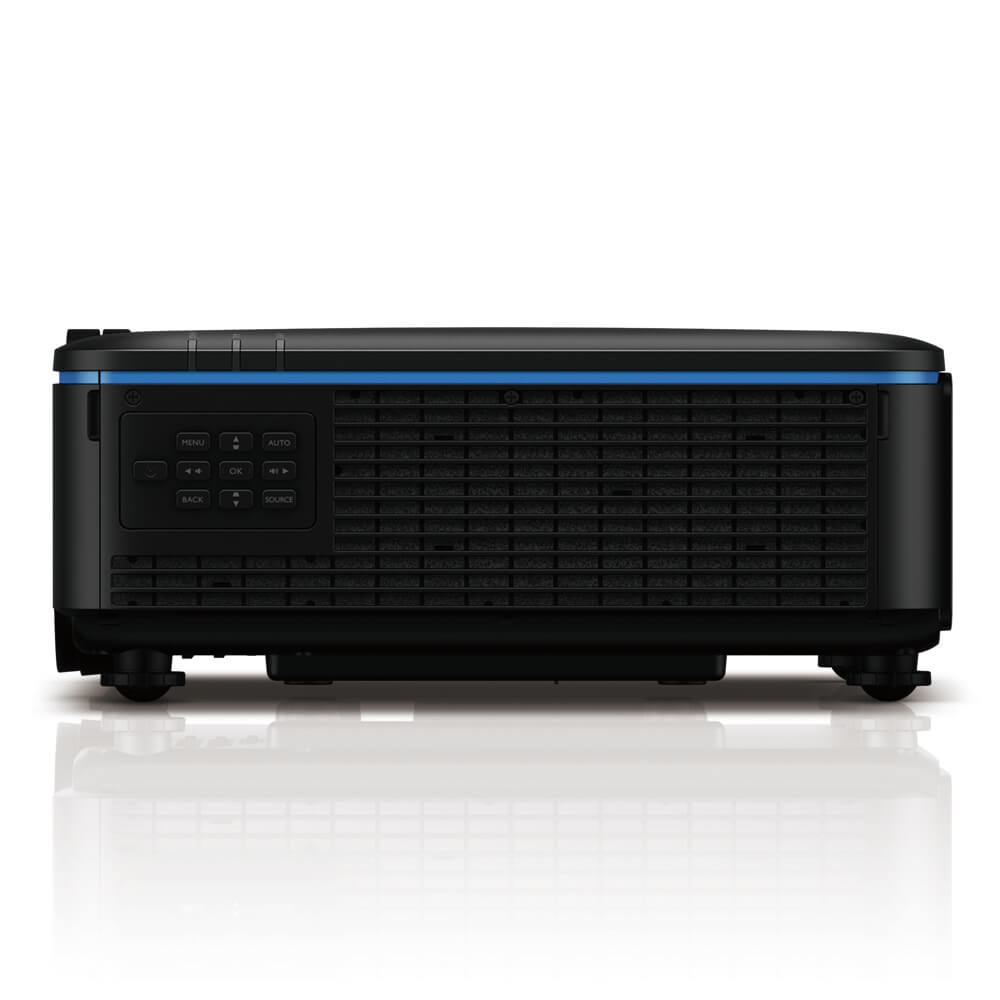

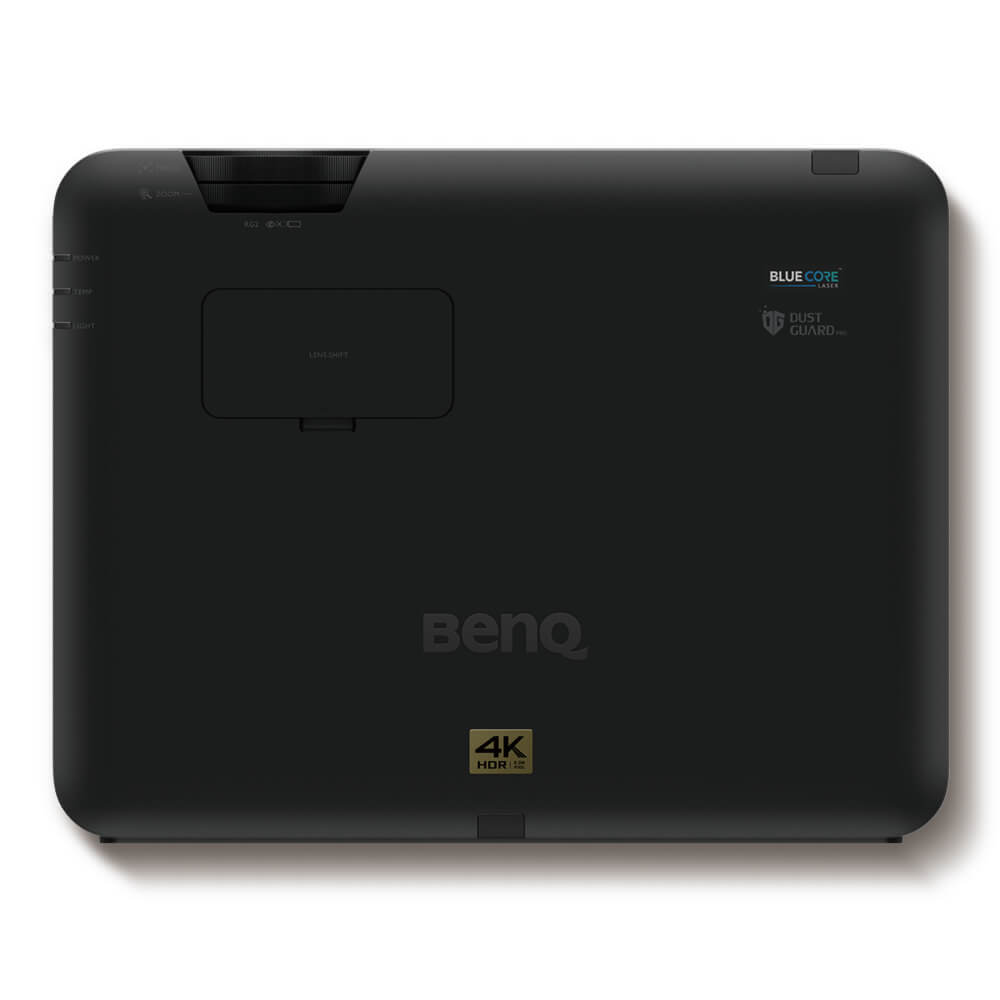

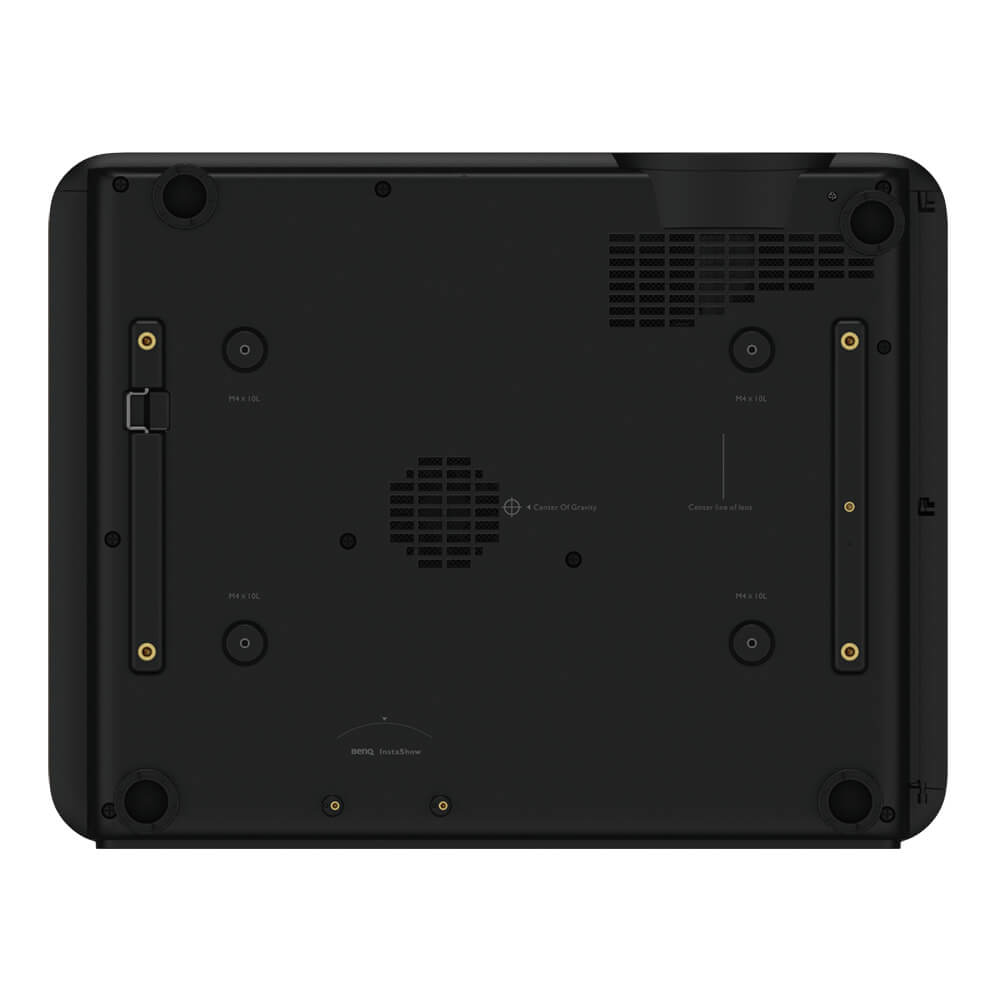

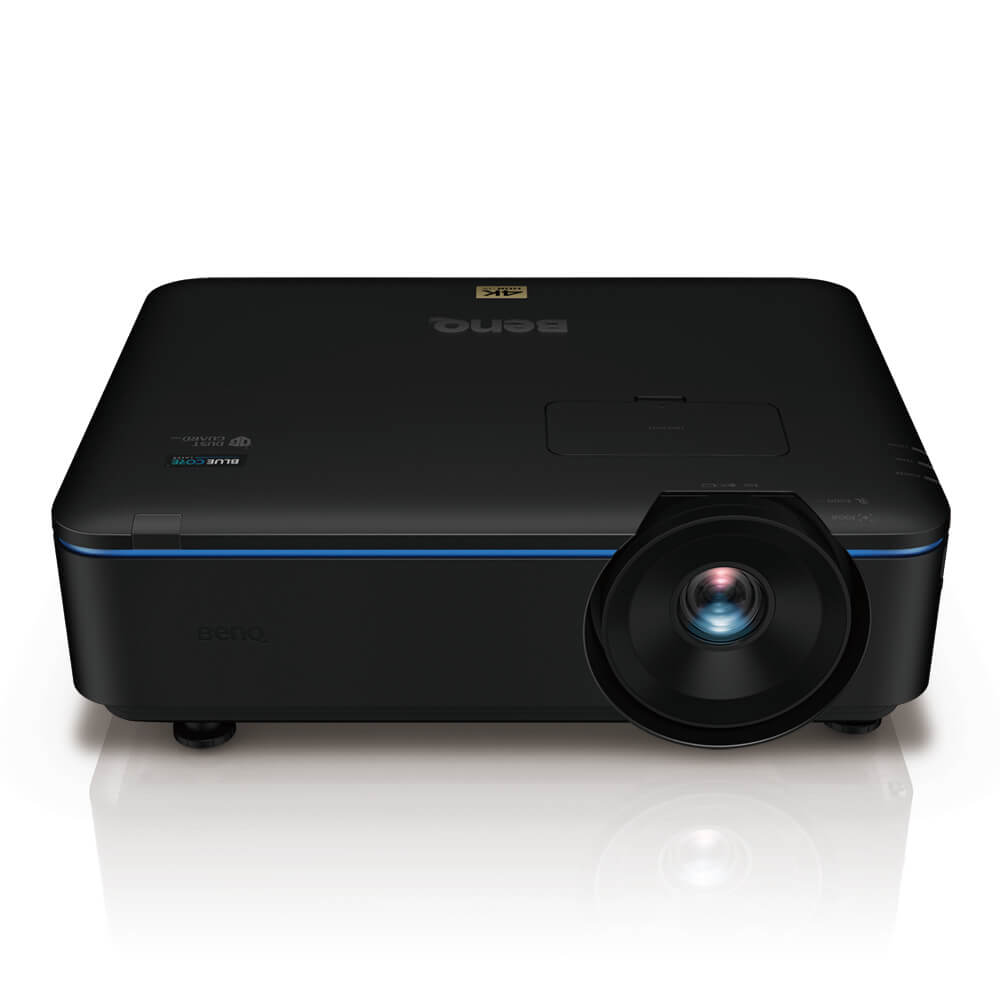

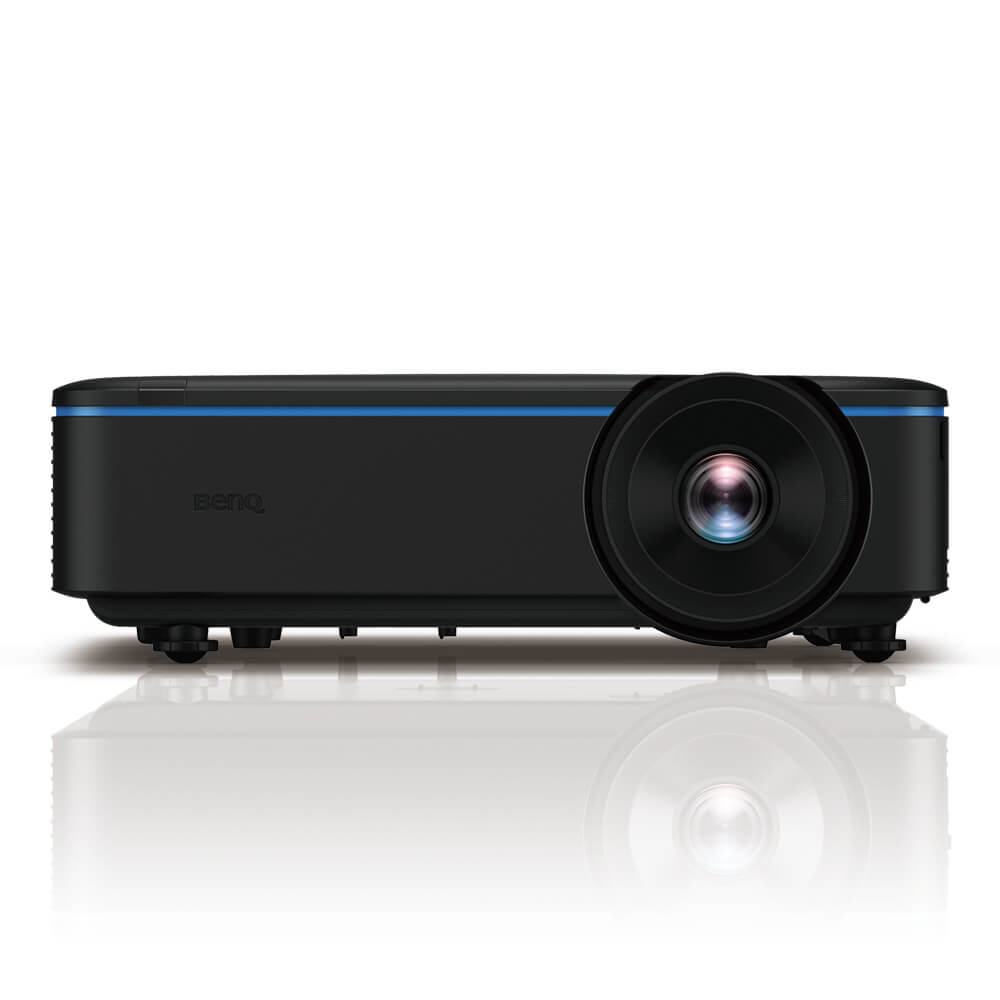

BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black
Model LK953STPart no. 9H.JJP77.15EEAN 840046040420
83 specifications
- Noise40 dB
- TypeShort throw projector
- Weight10.1 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 40 dB
- Type
- Short throw projector
- Weight
- 10.1 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LK953ST
- Part numbers
- 9H.JJP77.15E, 9H.JJP77.17E, LK953ST, 9H.JJP77.16E
- EAN / UPC
- 840046040420, 4718755075360
- Also known as
- BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black
Specifications
83 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance (wide) | 1.07 - 3.58 m |
| Projection distance (tele) | 1.18 - 3.94 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 8.6 - 9.4 mm |
| Aperture range (F-F) | 1.83 - 1.86 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 0.81 - 0.88 |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

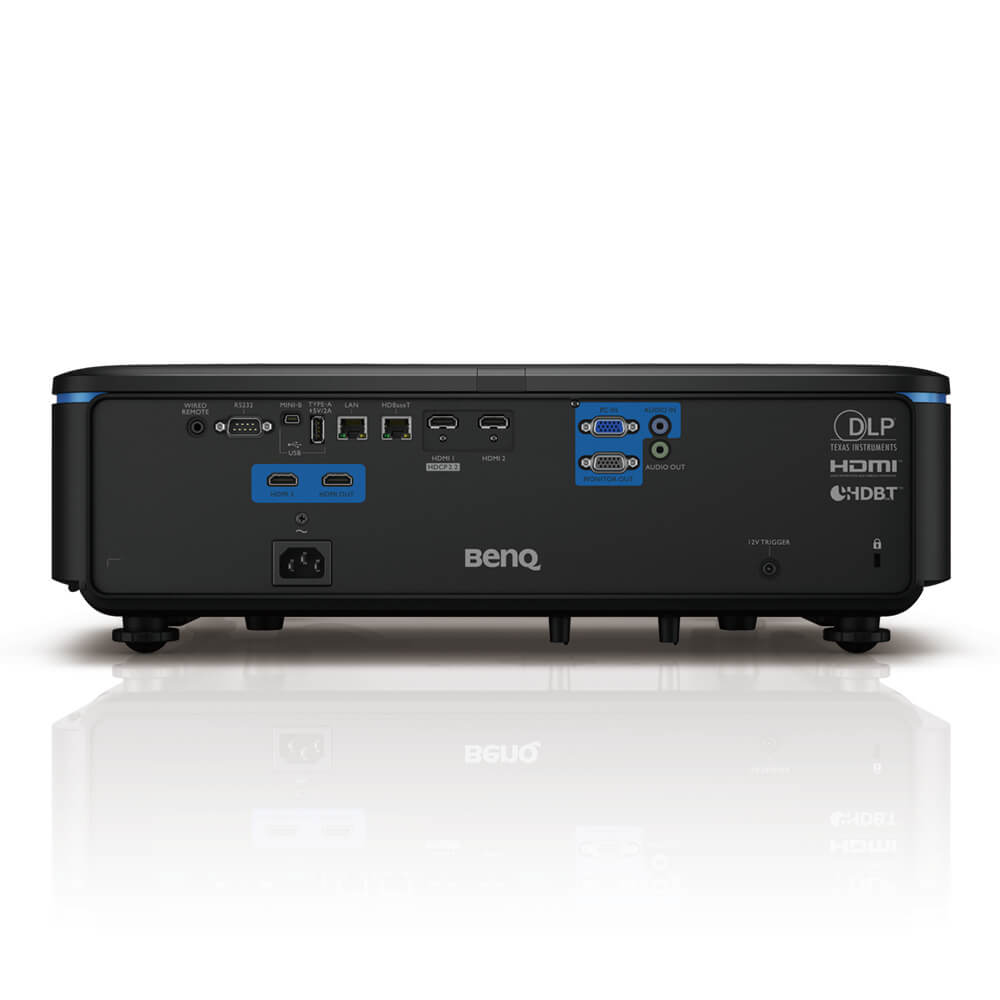

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 4 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 40 dB |
| Noise level (economic mode) | 38 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 30 |
| Air filter | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Short throw |
| Product colour | Black |
| Placement | Ceiling, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 520 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 585 W |
| Power consumption (economy mode) | 390 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10.1 kg |
| Width | 490 mm |
| Depth | 380 mm |
| Height | 159 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
What people say
Reviews & ratings
BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black
No reviews yet
Be the first to tell others how BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black
All data projector comparisons- BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black vsBenQ MW707 Standard throw projector 3500 ANSI lumens DLP WXGA (1280x800) WhiteCompare specs

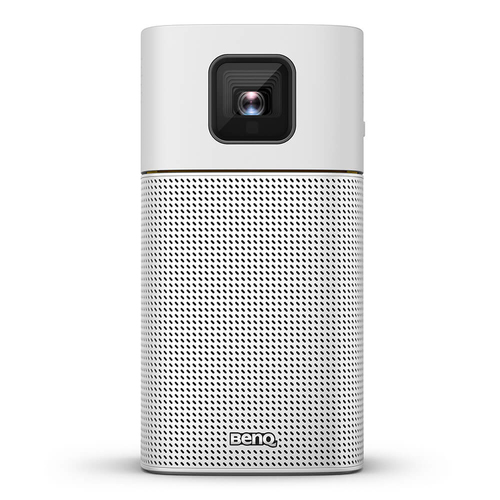

- BenQ LK953ST Short throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) Black vsBenQ GV1 Short throw projector 200 ANSI lumens DLP WVGA (854x480) Silver, YellowCompare specs
