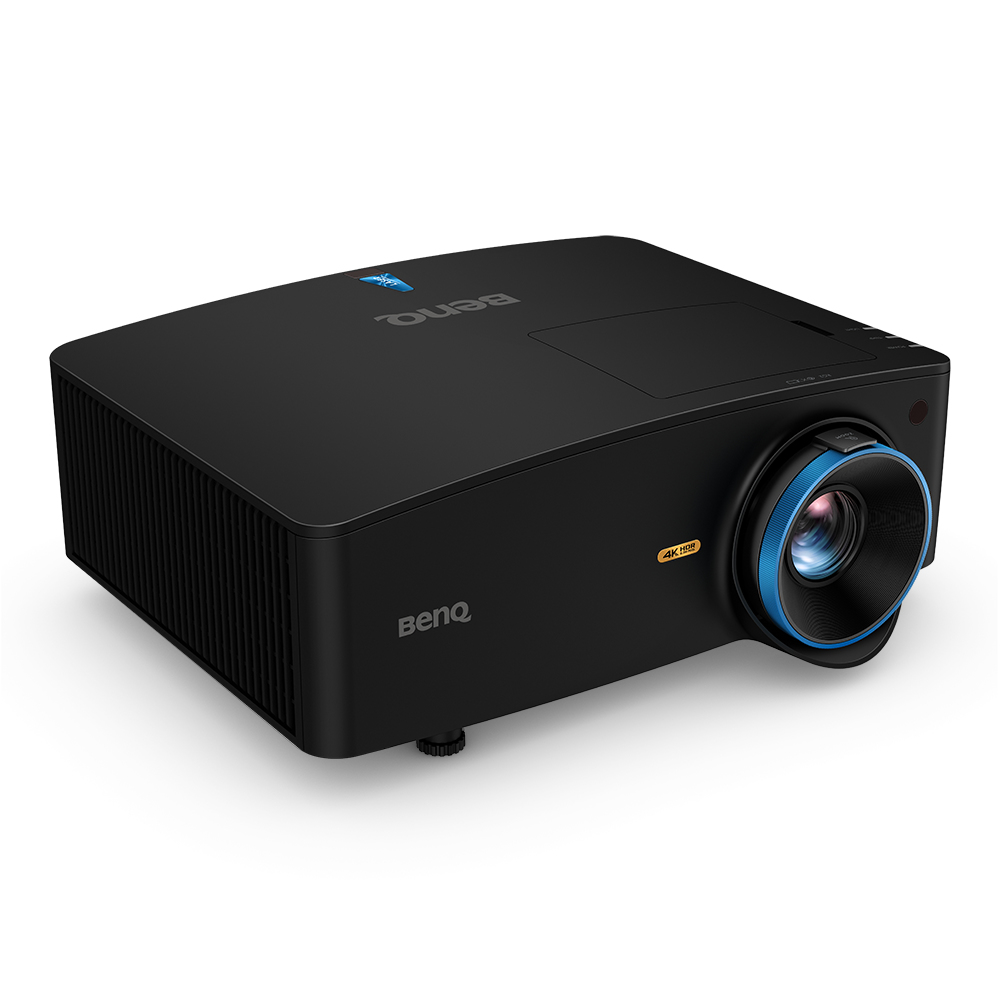

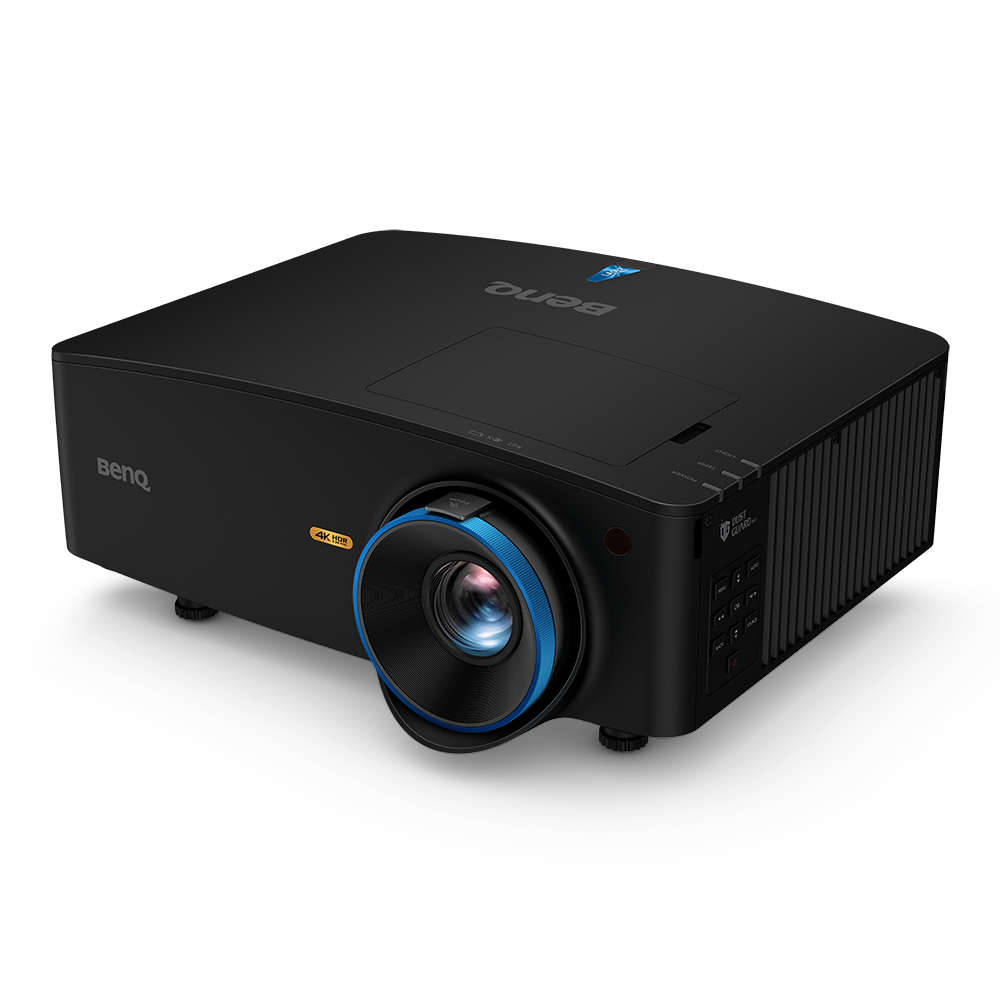

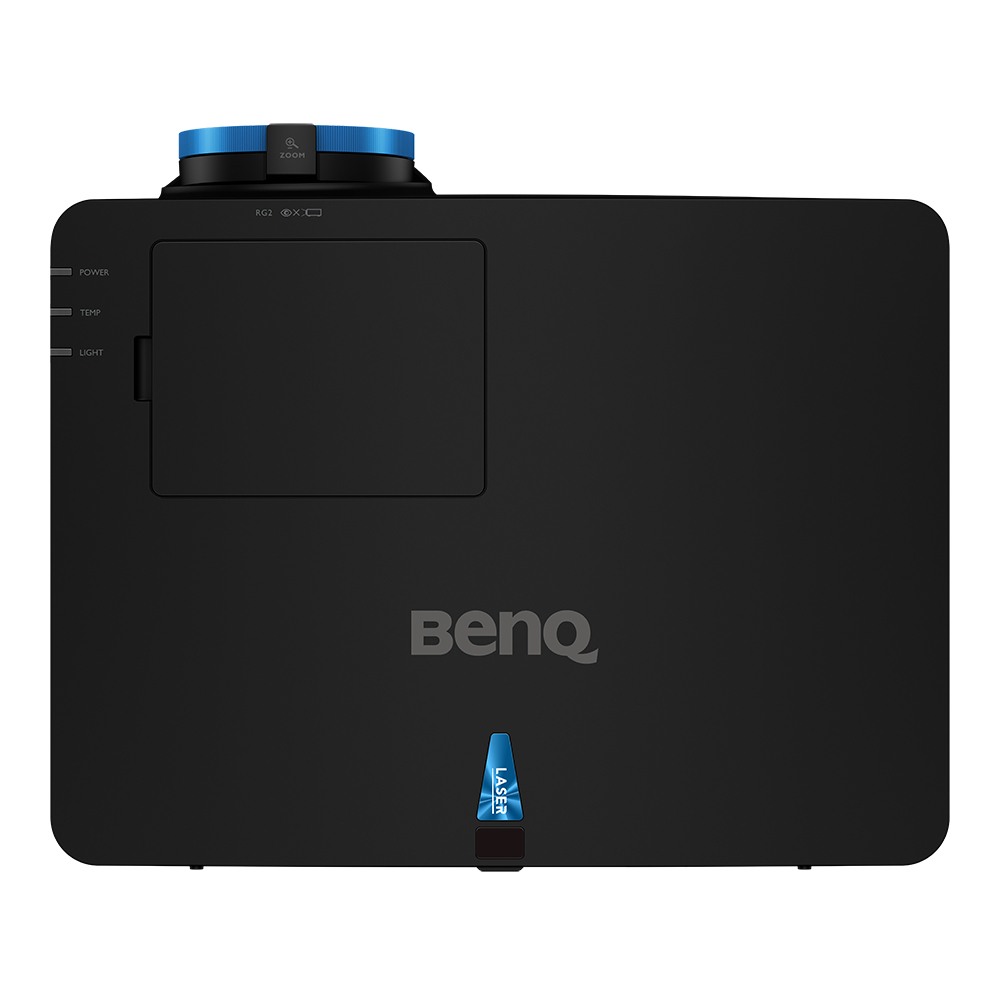

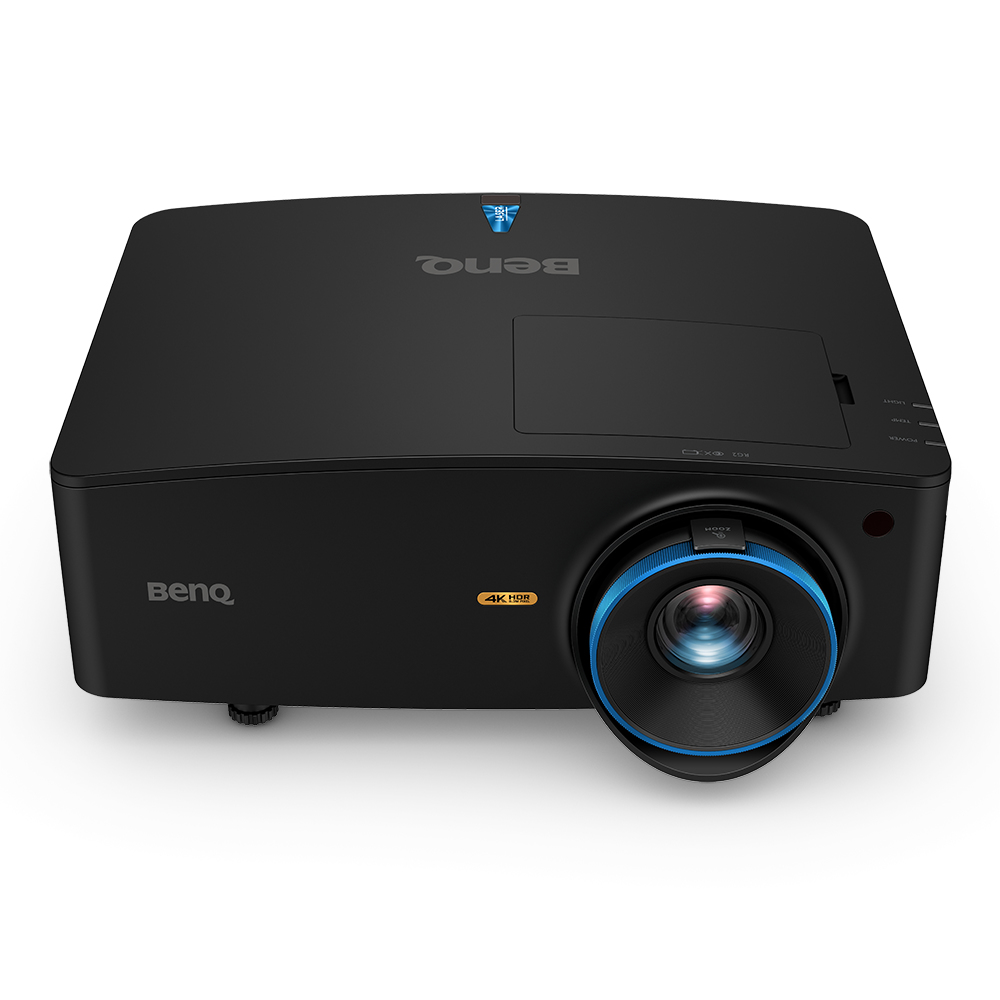

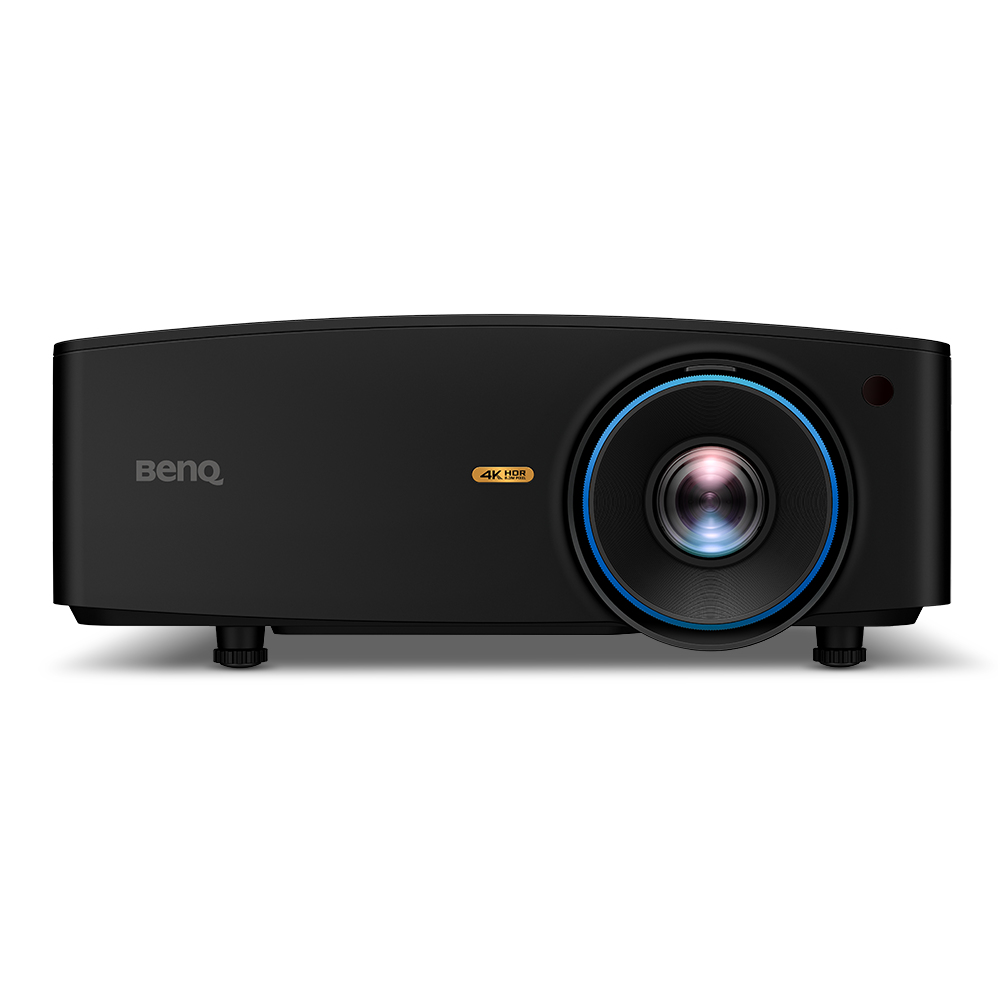

LK936ST data projector Short throw projector 5100 ANSI lumens DLP UHD 4K (3840x2160) 3D Black
Model LK936STEAN 840046045777
62 specifications
- Noise40 dB
- TypeShort throw projector
- Weight7 kg
- ColourBlack
- Projector brightness5100 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 40 dB
- Type
- Short throw projector
- Weight
- 7 kg
- Colour
- Black
- Projector brightness
- 5100 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- LK936ST
- Part numbers
- LK936ST, 9H.JPG77.15E
- EAN / UPC
- 840046045777, 4718755086878
- Also known as
- BenQ LK936ST data projector Short throw projector 5100 ANSI lumens DLP UHD 4K (3840x2160) 3D Black
Specifications
62 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5100 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 2.4:1, 4:3, 16:10, 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 8.6 - 9.4 mm |
| Aperture range (F-F) | 1.83 - 1.86 |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Throw ratio | 0.81 - 0.89 |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
| Offset | 0% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

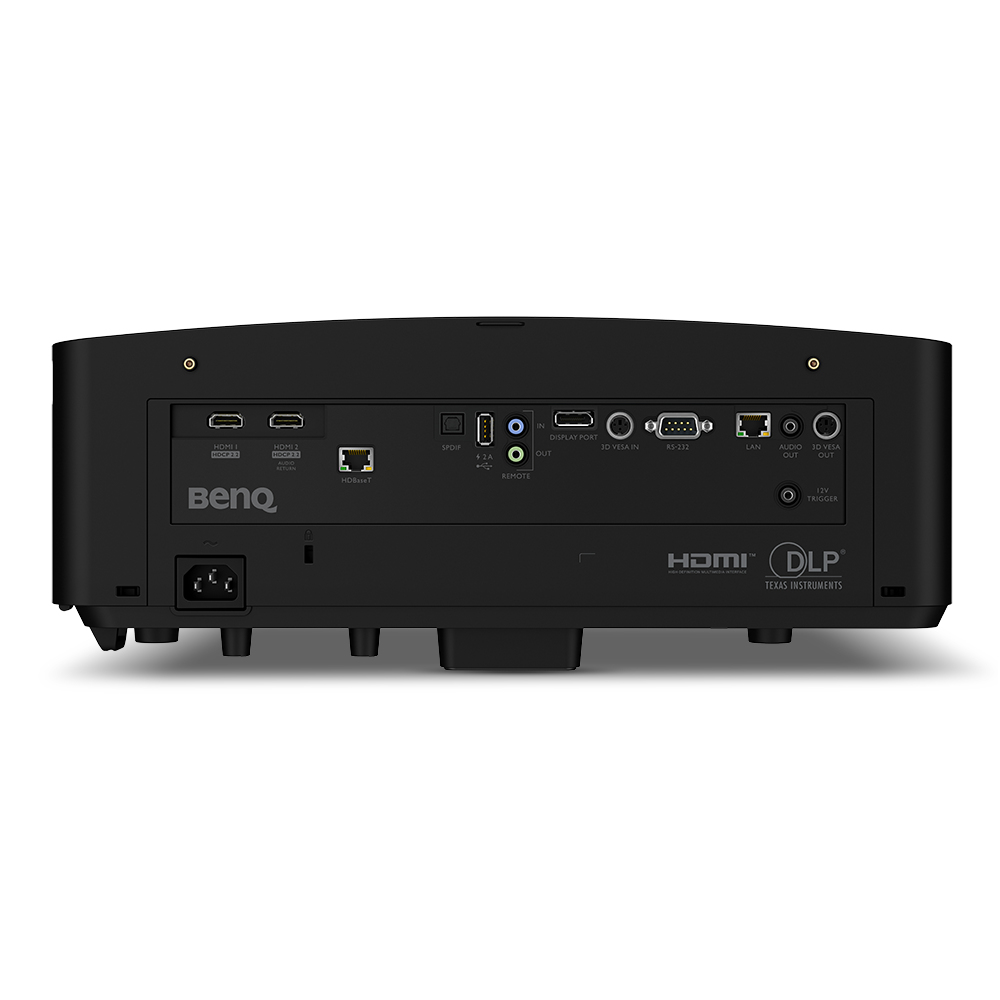

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| Composite video in | 1 |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 40 dB |
| Noise level (economic mode) | 33 dB |
| HDCP | Yes |
| Preset modes | 3D, Bright, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 30 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 440 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
| Width | 416 mm |
| Depth | 351 mm |
| Height | 166 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, HDMI |
