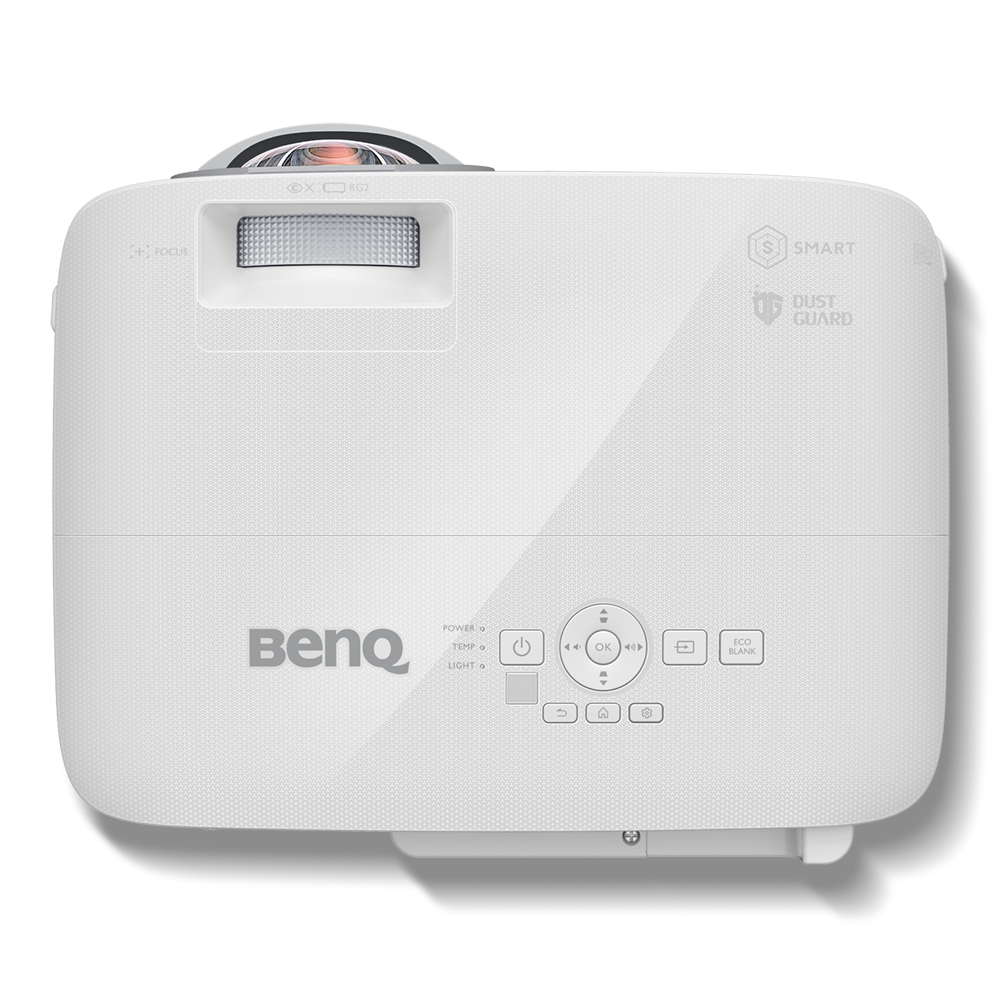

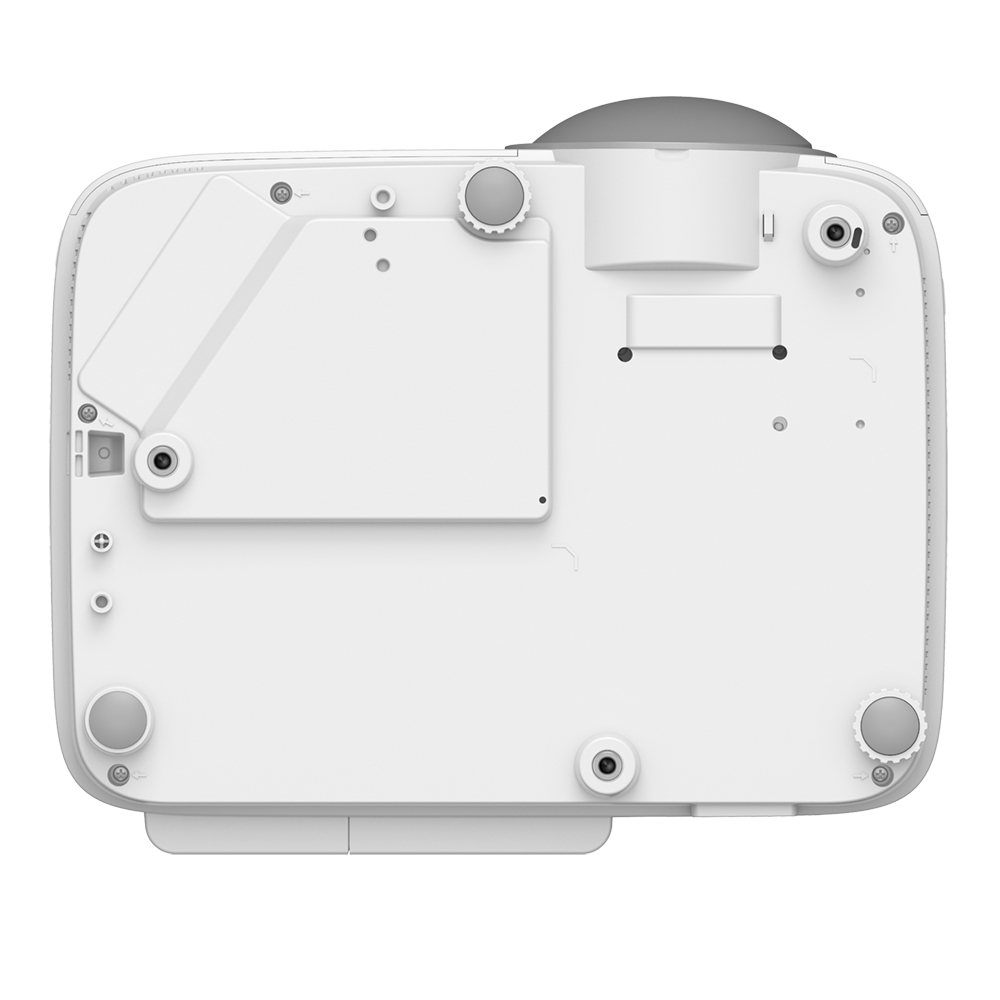

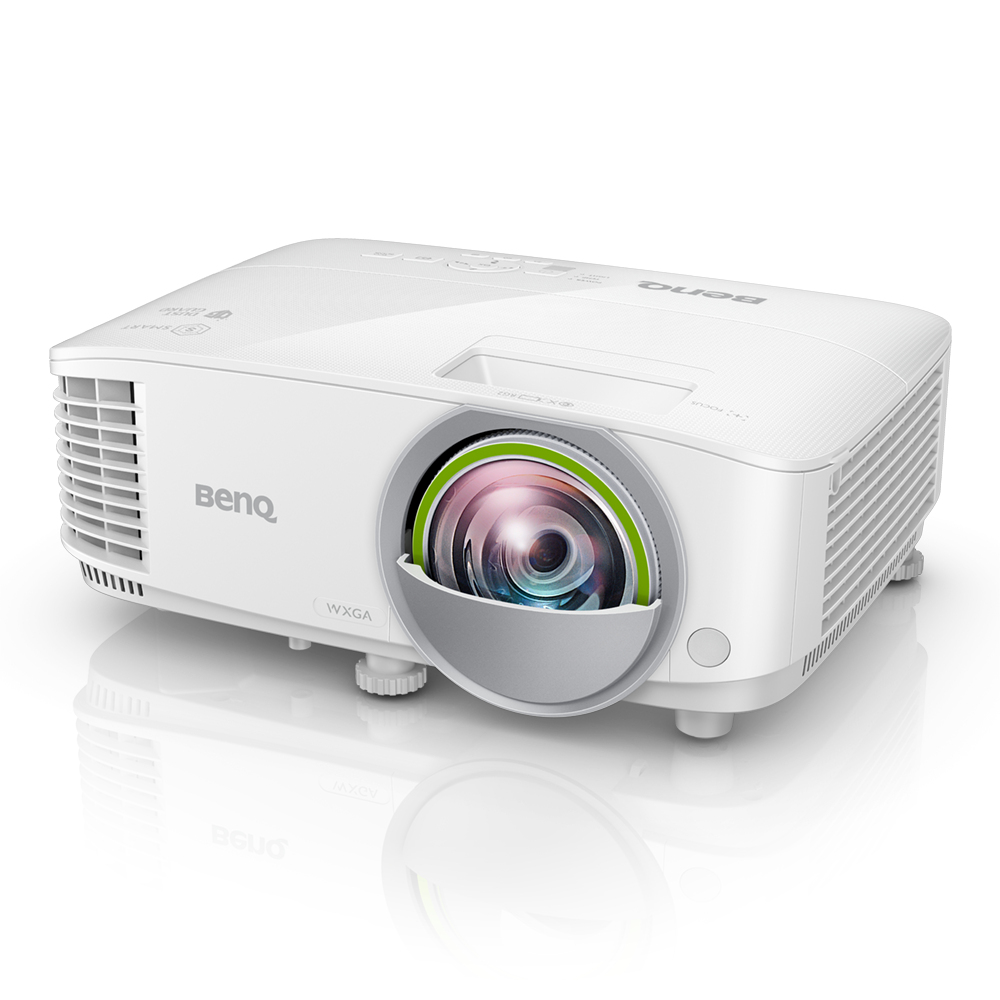

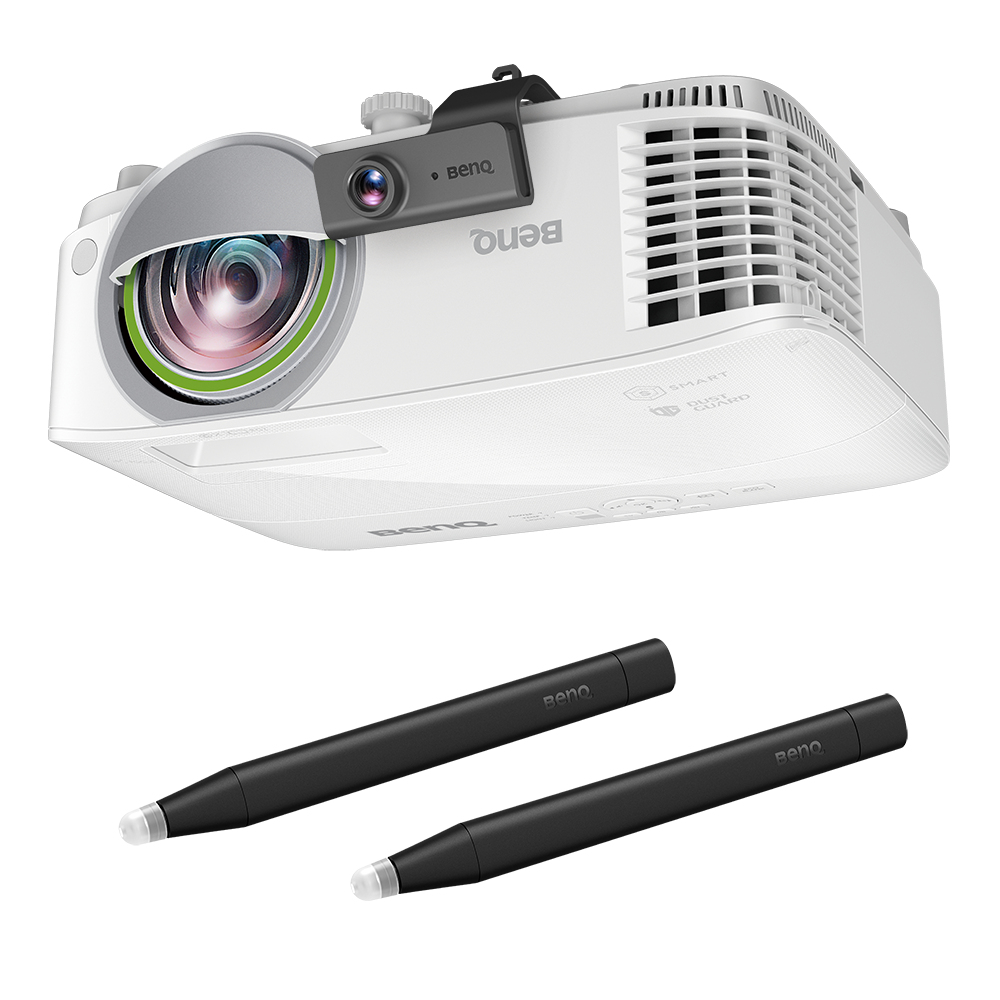

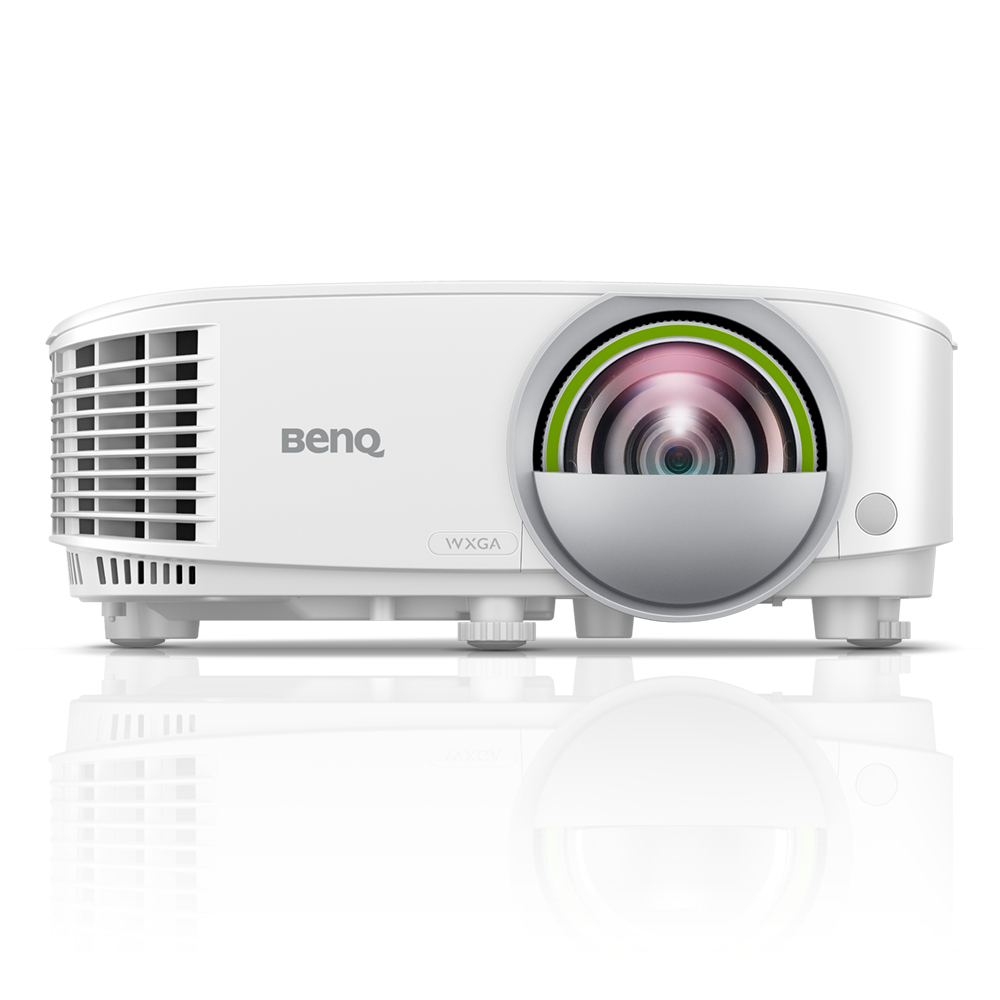

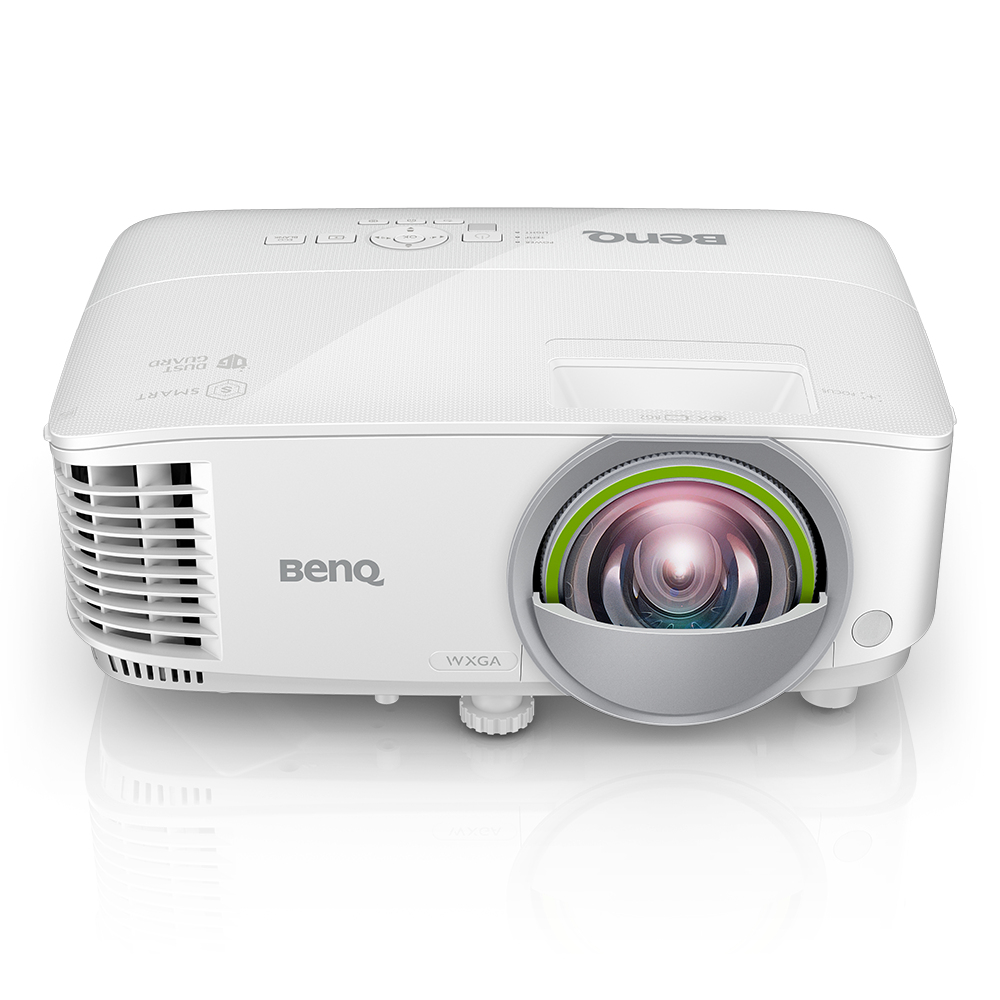

EW805ST data projector Short throw projector 3600 ANSI lumens DLP WXGA (1200x800) White
Model EW805STEAN 840046050092
70 specifications
- Memory2 GB
- Storage16 GB
- Noise33 dB
- TypeShort throw projector
- OSAndroid TV
- Weight2.8 kg
Overview
- Memory
- 2 GB
- Storage
- 16 GB
- Noise
- 33 dB
- Type
- Short throw projector
- OS
- Android TV
- Weight
- 2.8 kg
- Brand
- BenQ
- Category
- Data Projector
- Model
- EW805ST
- Part number
- EW805ST
- EAN / UPC
- 840046050092
- Also known as
- BenQ EW805ST data projector Short throw projector 3600 ANSI lumens DLP WXGA (1200x800) White
Specifications
70 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | Yes |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Aperture range (F-F) | 2.6 - 6.9 |
| Zoom capability | Yes |
| Zoom type | Fixed |
| Throw ratio | 0.49:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video colour modes | Bright cinema, Presentation, sRGB |

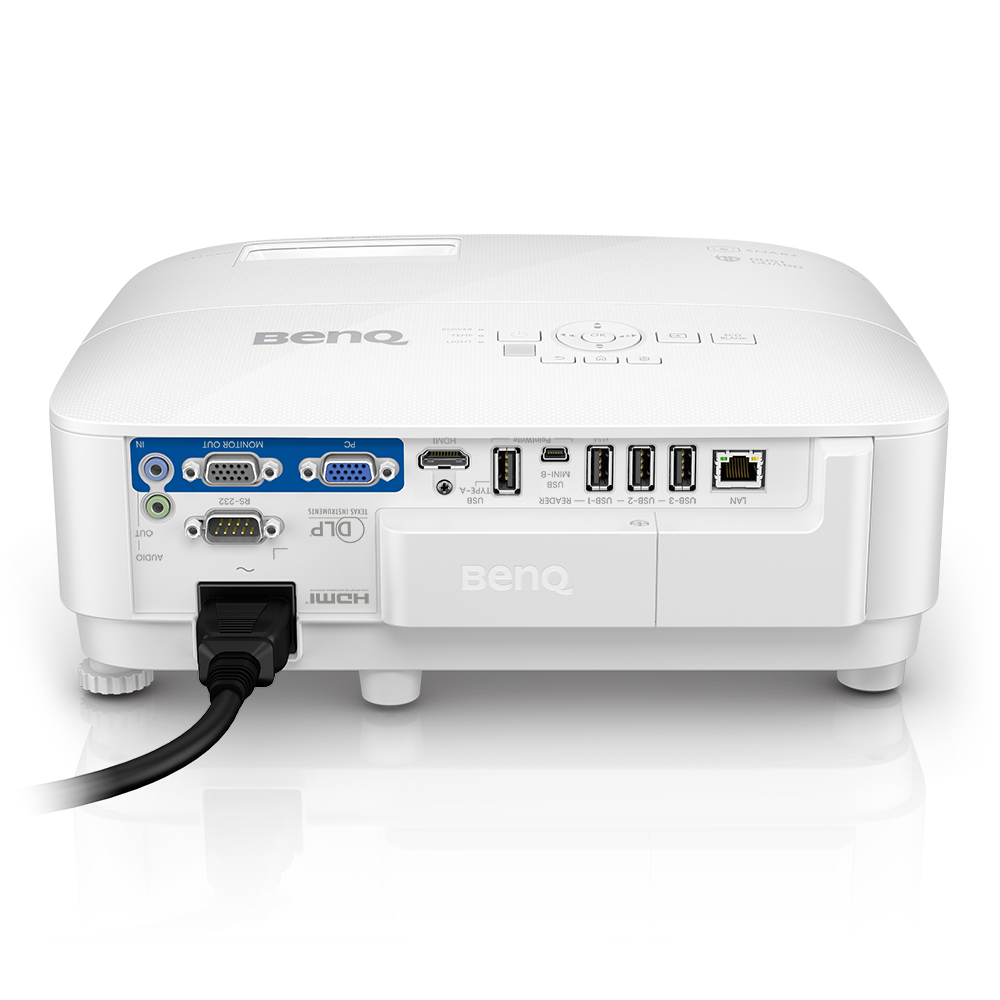

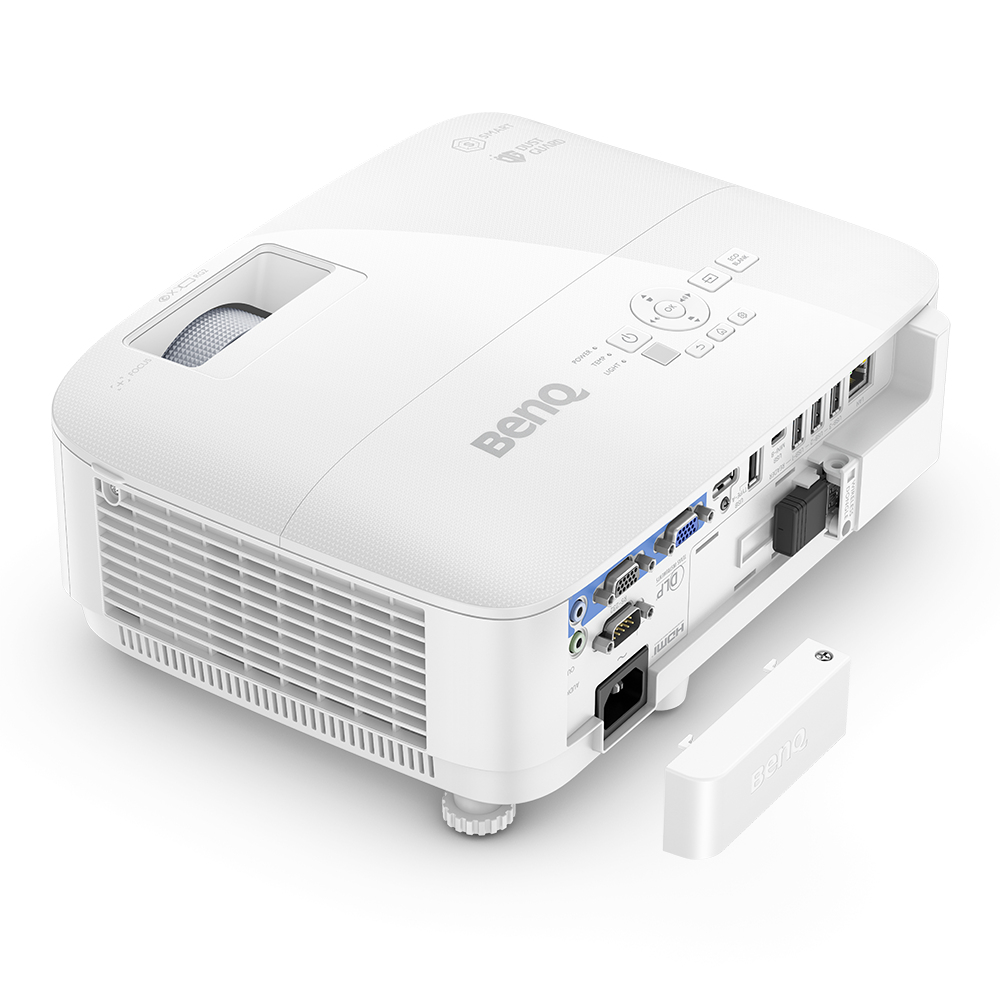

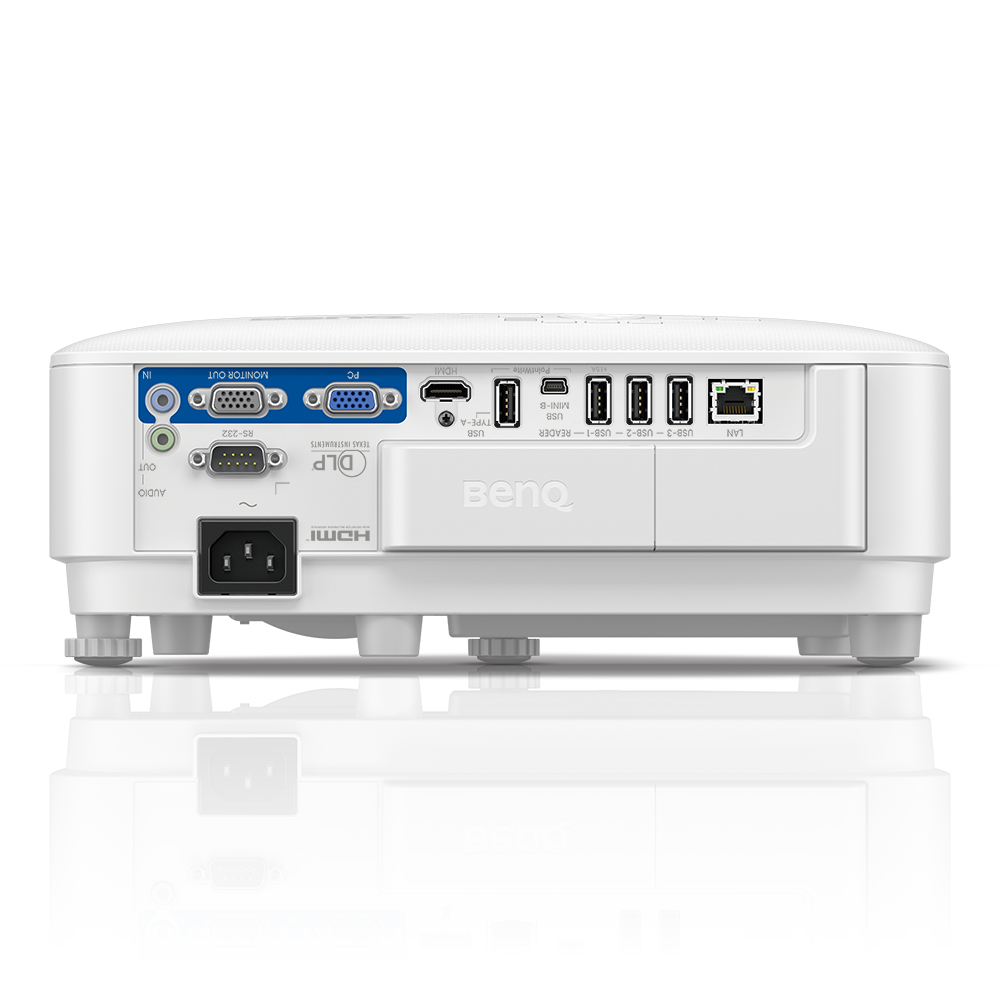

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 5 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Internal storage capacity | 16 GB |
| Internal memory | 2 GB |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| AirPlay | Yes |
| Works with the Google Assistant | Yes |
| Operating system installed | Android TV |
| Operating system version | 9.0 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Business |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 275 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 296 mm |
| Depth | 250 mm |
| Height | 120 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | Power |
| Carrying case | Yes |
| Mounting brackets included | Yes |
