AK700ST Short throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) Black
Model AK700STPart no. 9H.JSS77.13EEAN 840046050177
52 specifications
- Noise32 dB
- TypeShort throw projector
- Weight3.4 kg
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 32 dB
- Type
- Short throw projector
- Weight
- 3.4 kg
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- AK700ST
- Part number
- 9H.JSS77.13E
- EAN / UPC
- 840046050177, 4718755093784
- Also known as
- BenQ AK700ST Short throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) Black
Specifications
52 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |

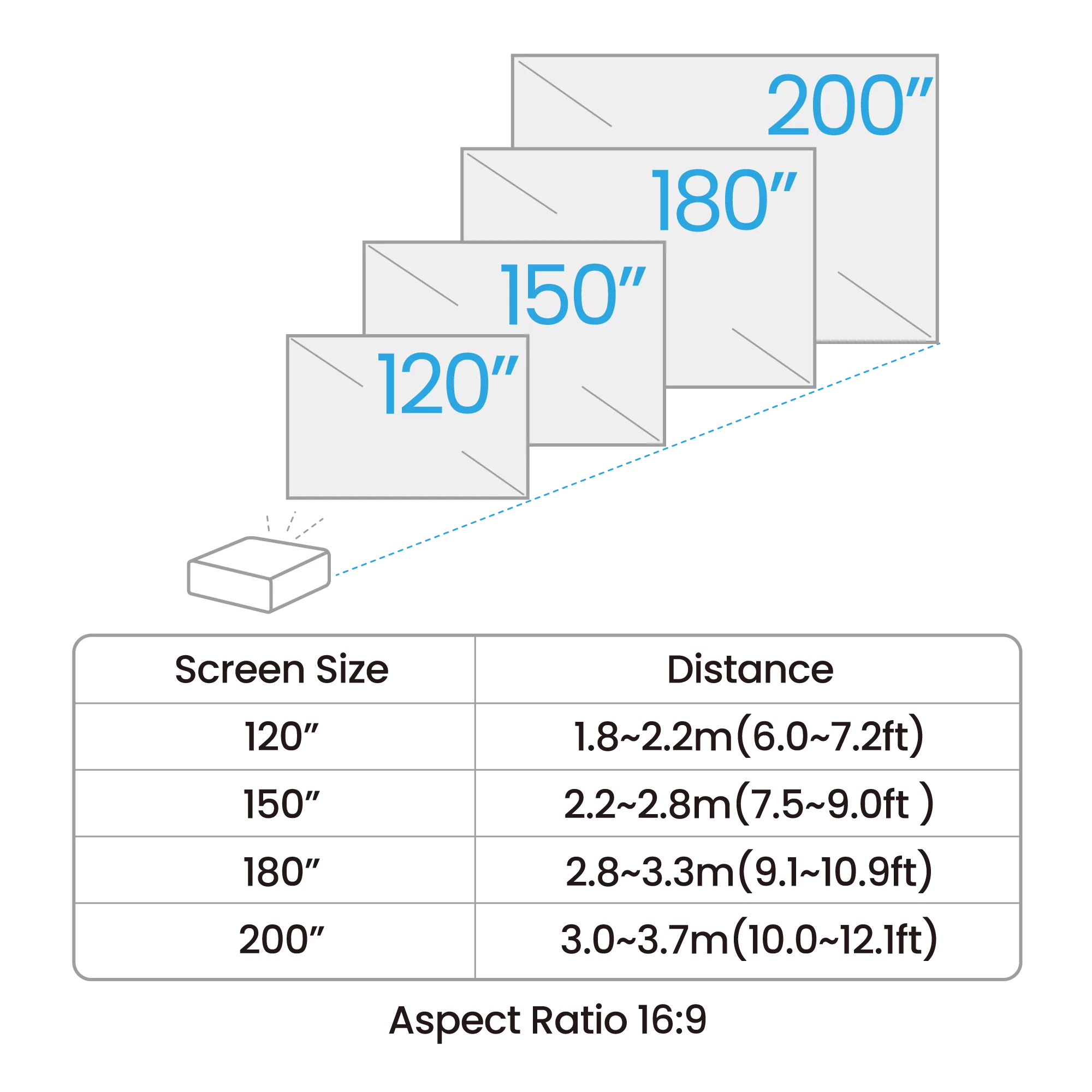

| Screen size compatibility | 3048 - 5080 mm (120 - 200") |
| Projection distance | 1.8 - 3.7 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 10.2 mm |
| F-number (relative aperture) | 2.53 |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
| Throw ratio | 0.69-0.83 |
| Offset | 102.5% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-C ports quantity | 1 |
| Serial interface type | RS-232 |
| Enhanced Audio Return Channel (eARC) | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 29 dB |
| International Protection (IP) code | IP5X |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Gaming |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 212 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.4 kg |
| Width | 303.5 mm |
| Depth | 234.5 mm |
| Height | 112.4 mm |
Packaging content
| Specification | Value |
|---|---|

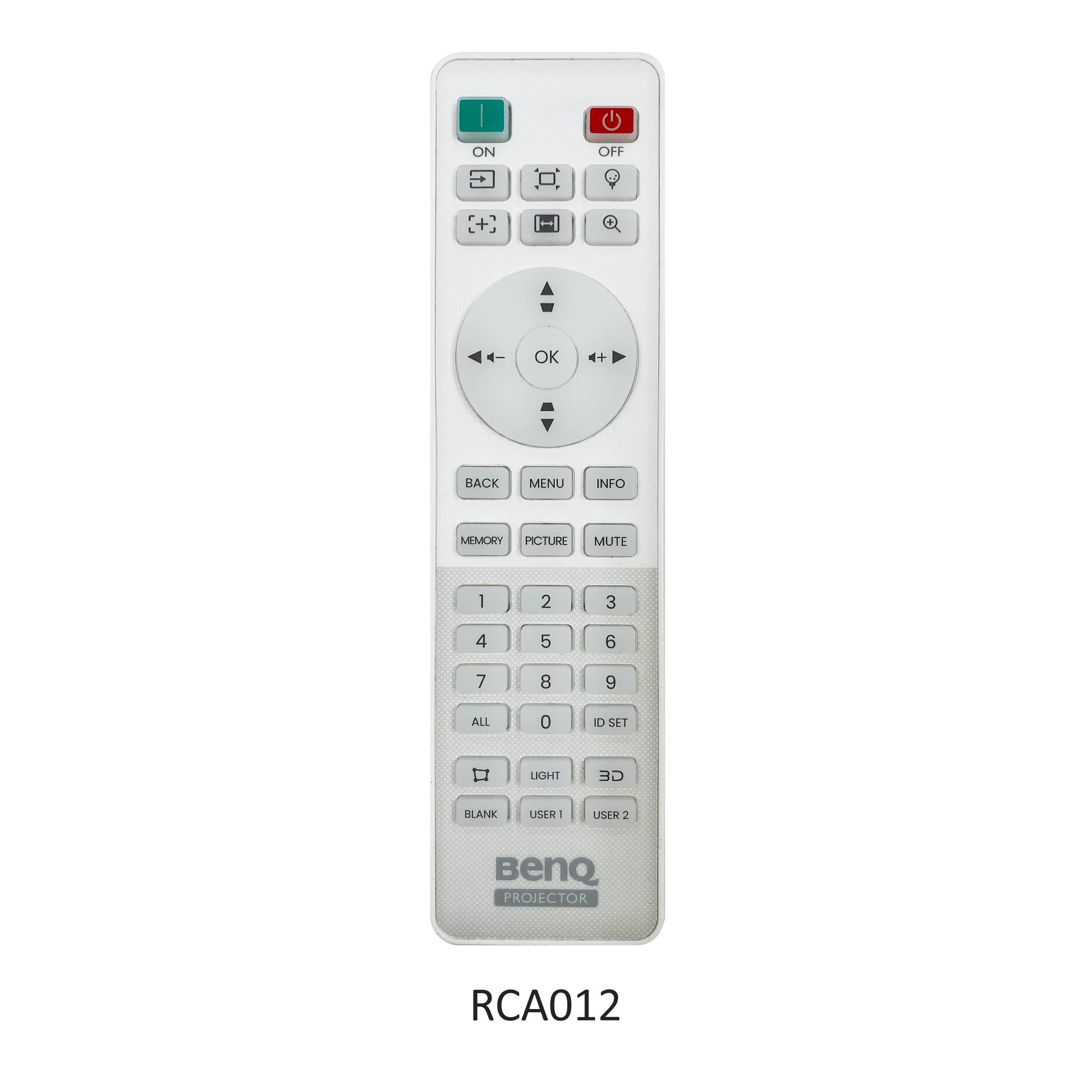

| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
