AH500ST Short throw projector 4000 ANSI lumens DLP 1080p (1920x1080) Black
Model AH500STPart no. 9H.R0377.23EEAN 4718755095603
53 specifications
- Noise35 dB
- TypeShort throw projector
- Weight5.1 kg
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 35 dB
- Type
- Short throw projector
- Weight
- 5.1 kg
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- BenQ
- Category
- Data Projector
- Model
- AH500ST
- Part numbers
- 9H.R0377.23E, AH500ST
- EAN / UPC
- 4718755095603, 840046051419
- Also known as
- BenQ AH500ST Short throw projector 4000 ANSI lumens DLP 1080p (1920x1080) Black
Specifications
53 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 3048 - 5080 mm (120 - 200") |
| Projection distance | 1.6 - 2.7 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | ± 30° |
| Keystone correction, vertical | ± 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 38000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Fixed focal length | 7.46 mm |
| F-number (relative aperture) | 2.8 |
| Throw ratio | 0.499 |
| Offset | 112% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0a |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Gaming |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

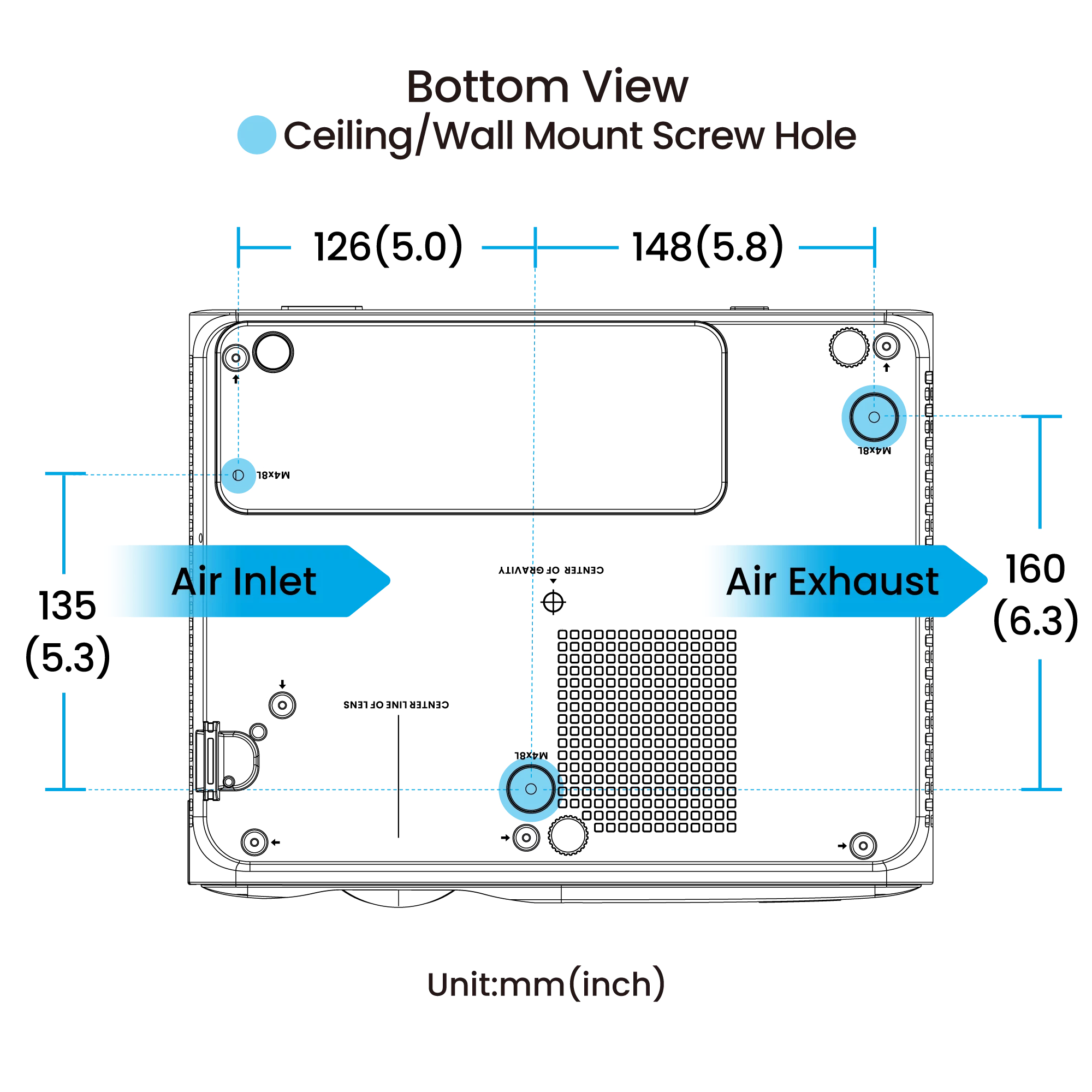

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.1 kg |
| Width | 320 mm |
| Depth | 255 mm |
| Height | 130.6 mm |
Packaging content
| Specification | Value |
|---|---|

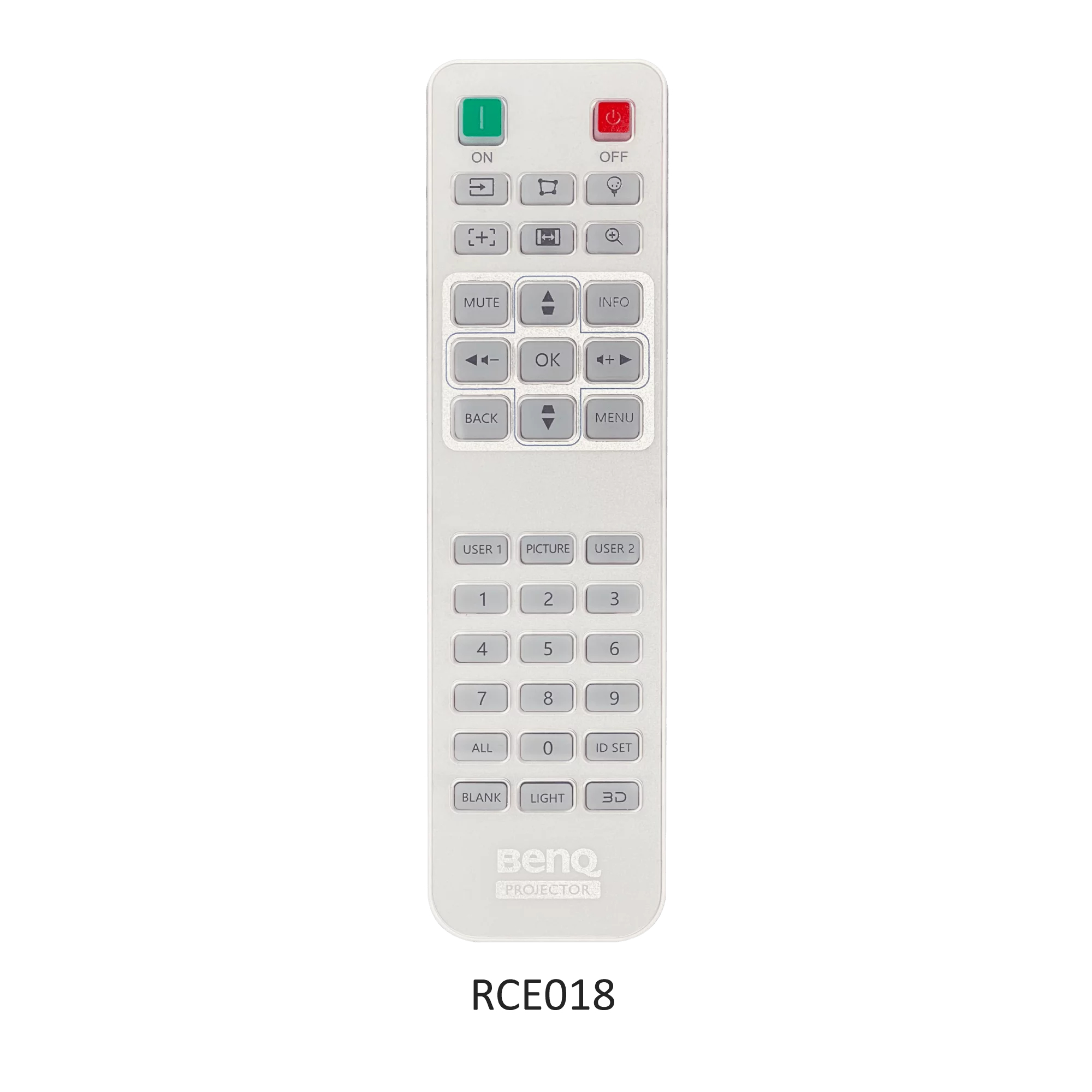

| Remote control included | Yes |
| Cables included | AC |
