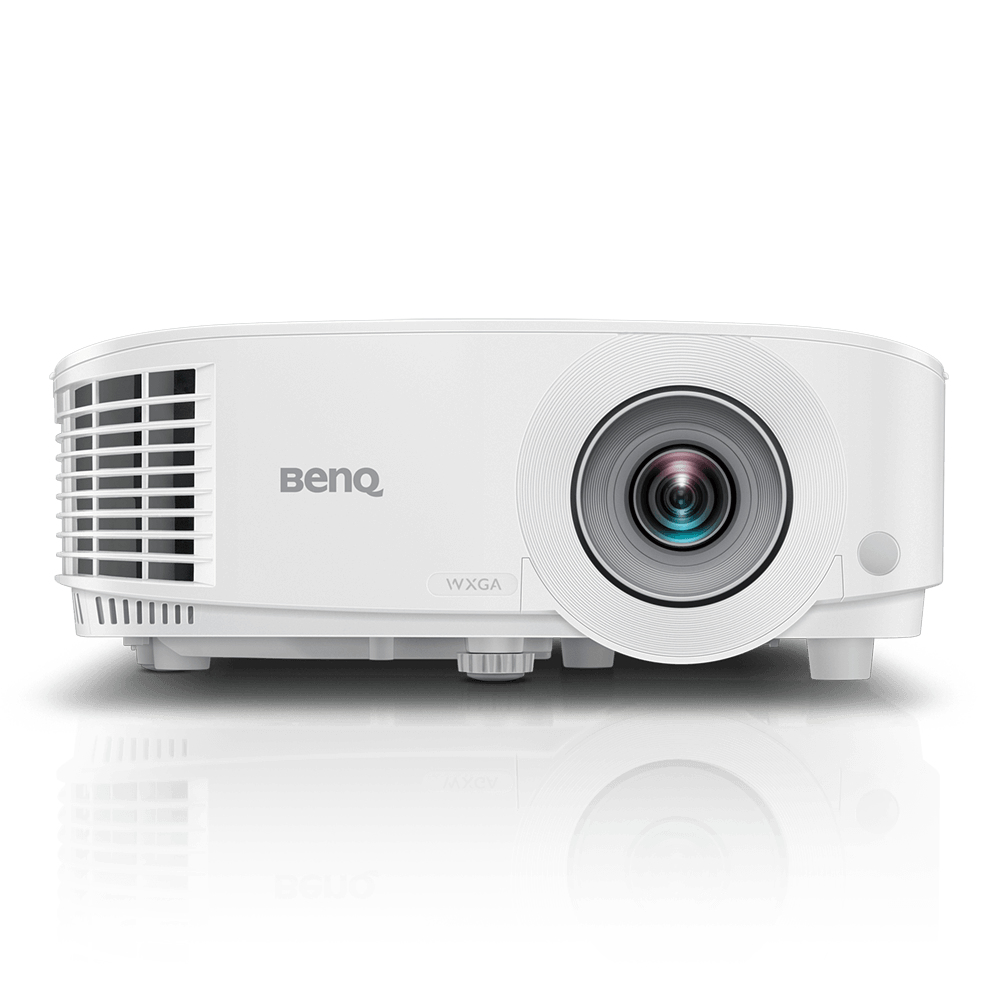

9H.JGS77.13L data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
Model 9H.JGS77.13L
66 specifications
- Noise33 dB
- TypeStandard throw projector
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Focal length range16.88 - 21.88 mm
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 16.88 - 21.88 mm
- Brand
- BenQ
- Category
- Data Projector
- Model
- 9H.JGS77.13L
- Part number
- 9H.JGS77.13L
- Also known as
- BenQ 9H.JGS77.13L data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
Specifications
66 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | -25 - 25° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 8000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 16.88 - 21.88 mm |
| Aperture range (F-F) | 2.59 - 2.87 |
| Zoom capability | Yes |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.21-1.57 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM 4.25/4.4 |
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 800 (WXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 2 |
| Mini-USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| Mobile High-Definition Link (MHL) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| HDCP version | 1.4 |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Desktop, Ceiling |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 320 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (network standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Quick start guide | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
