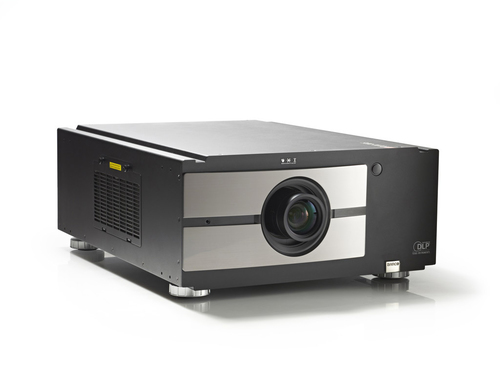

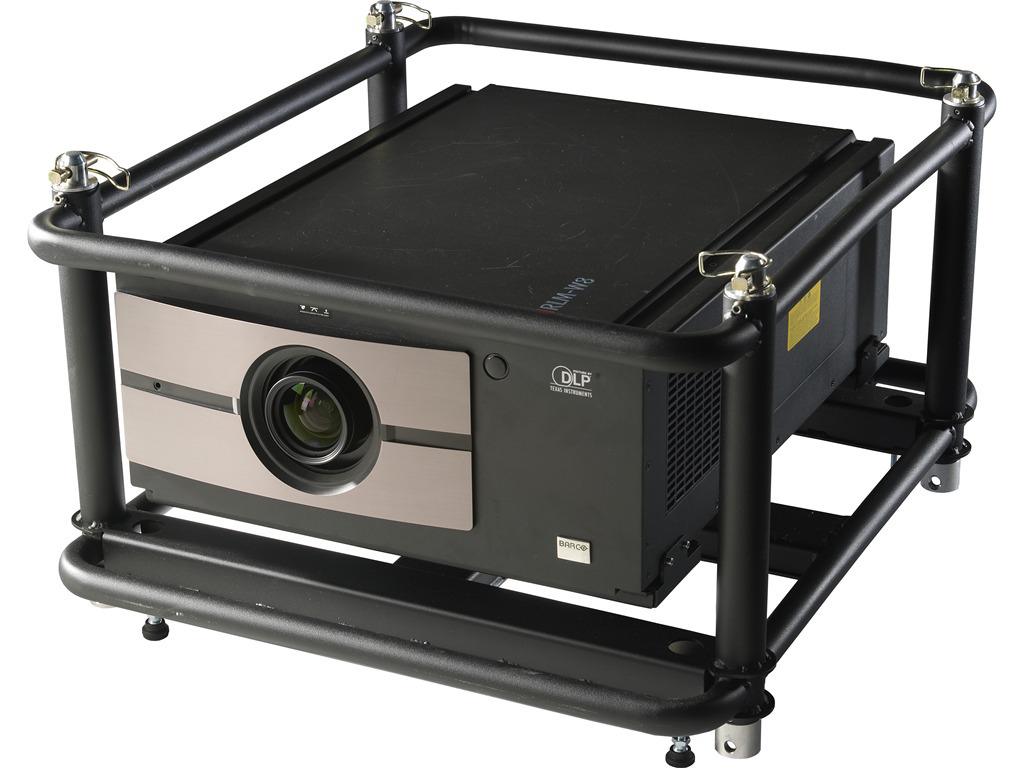

Barco RLM-W8 Large venue projector 7300 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Barco RLM-W8 Large venue projector 7300 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Model RLM-W8Part no. R9006310

71 specifications
  • ConnectivityWired
  • Noise39 dB
  • TypeLarge venue projector
  • Weight26 kg
  • ColourBlack
  • Projector brightness7300 ANSI lumens
See all specifications

Overview

Connectivity
Wired
Noise
39 dB
Type
Large venue projector
Weight
26 kg
Colour
Black
Projector brightness
7300 ANSI lumens
Brand
Barco
Model
RLM-W8
Part number
R9006310
Also known as
Barco RLM-W8 Large venue projector 7300 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Specifications

71 specifications in 17 groups

Projector

Projector brightness7300 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2200:1
Contrast ratio (dynamic)3000:1
Uniformity95%
Digital gamma correctionYes
Matrix size1.7 cm (0.67")
Heat dissipation2900 BTU/h

Light source

Light source typeLamp
Service life of light source1500 h
Service life of light source (economic mode)2000 h
Lamp power330 W
Lamps quantity2 lamp(s)

Lens system

Horizontal lens shift range-30 - 30%
Vertical lens shift range0 - 100%

Video

Analog signal format systemNTSC
Full HDYes
HD-ReadyYes
3DYes
Supported graphics resolutions1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in0
Serial interface typeRS-232
BNC input ports5
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level39 dB
HDCPYes
Preset modessRGB, Standard
Dot clock scanning frequency165 MHz
CertificationFCC, CE EN55022 Cl. A, CE, TUV, WEEE.

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Market positioningPresentation
Product colourBlack
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)850 W
Power consumption (standby)2 W
AC input voltage90 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Weight26 kg
Width516.7 mm
Depth669.7 mm
Height247 mm
Package weight30 kg

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, HDMI-DVI

Technical details

Compliance certificatesRoHS

Other features

Aspect ratio16:10
Package dimensions (WxDxH)660 x 820 x 380 mm
Connectivity technologyWired
Dimensions (WxDxH)516.7 x 669.74 x 247 mm
Maximum analog resolution1600 x 1200 pixels
Maximum digital resolution1920 x 1200 pixels
RS-232 ports1
