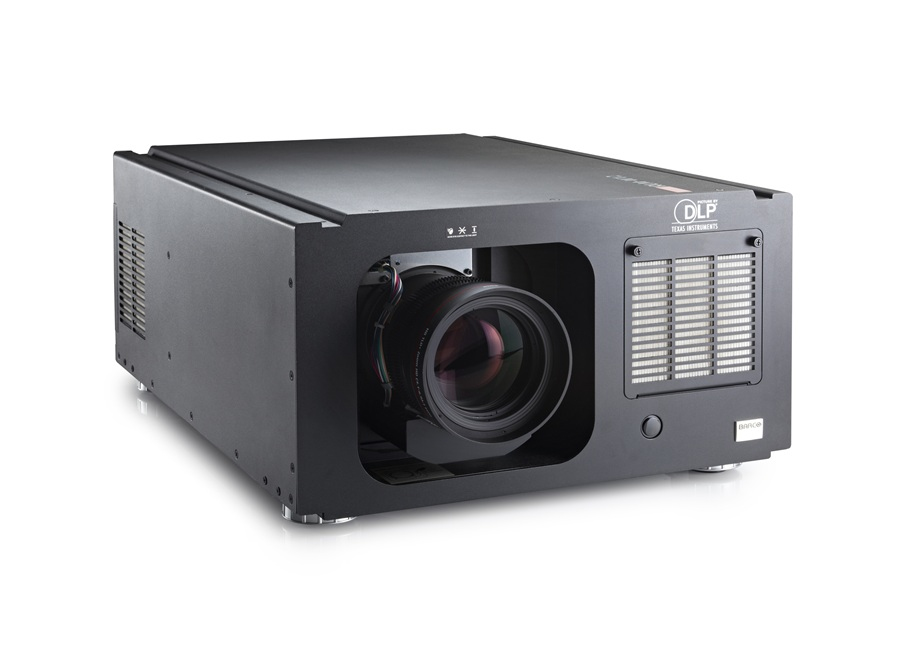

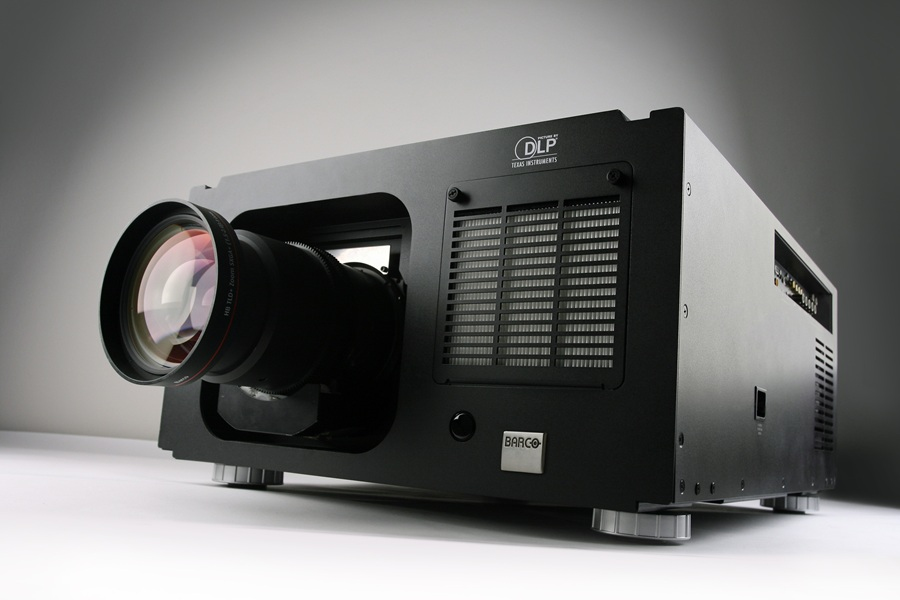

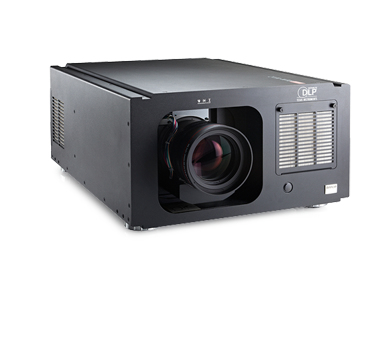

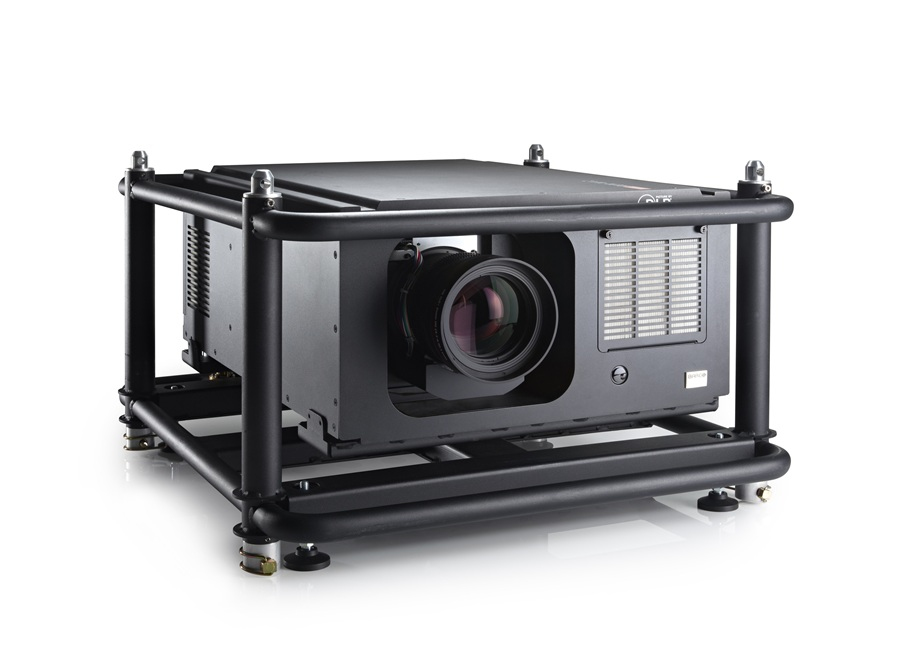

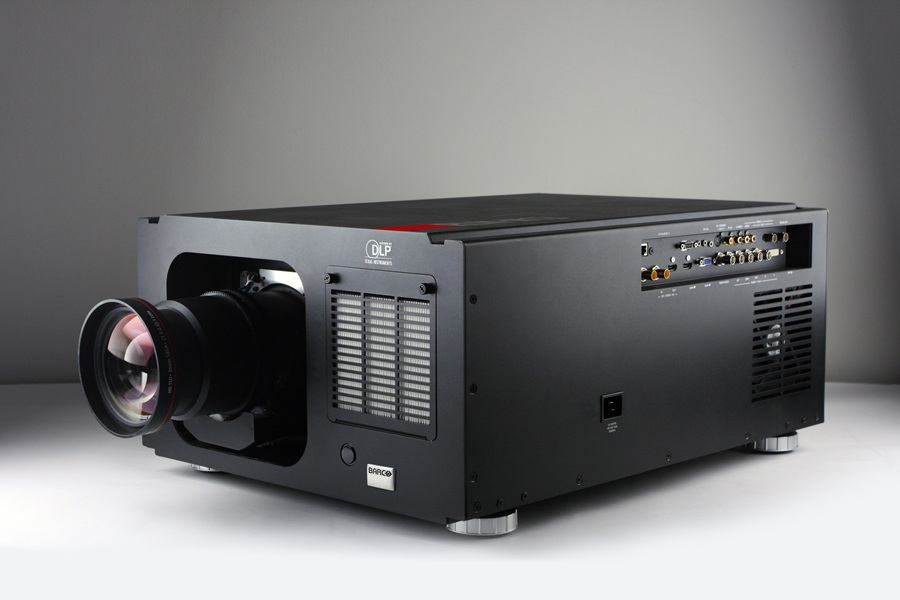

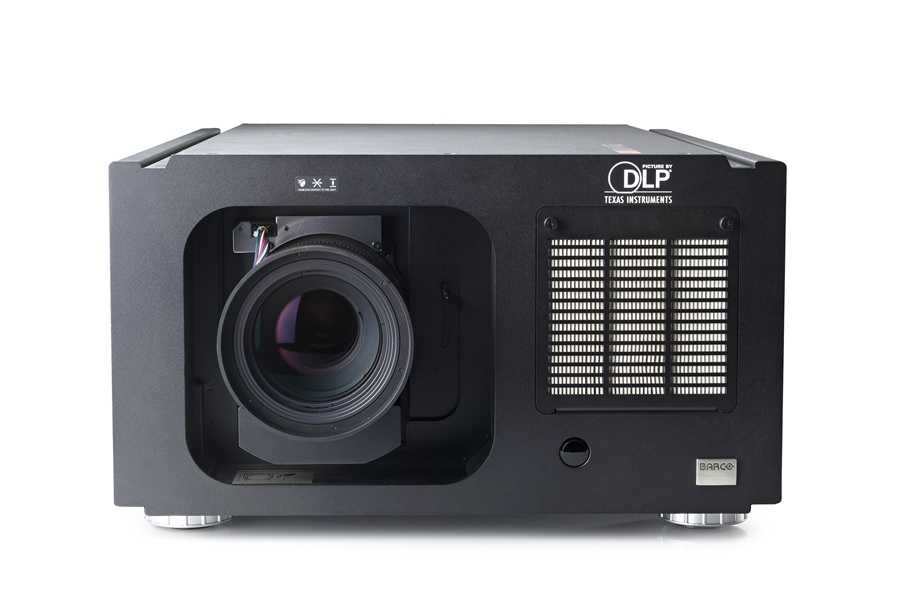

Barco RLM-W12 Large venue projector 10500 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Barco RLM-W12 Large venue projector 10500 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Model RLM-W12Part no. R9006320

59 specifications
  • Noise43 dB
  • TypeLarge venue projector
  • Weight32 kg
  • ColourBlack
  • Projector brightness10500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
43 dB
Type
Large venue projector
Weight
32 kg
Colour
Black
Projector brightness
10500 ANSI lumens
Light source type
Lamp
Brand
Barco
Model
RLM-W12
Part number
R9006320
Also known as
Barco RLM-W12 Large venue projector 10500 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Specifications

59 specifications in 14 groups

Projector

Projector brightness10500 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)1600:1
Native aspect ratio16:10
Supported aspect ratios16:10
Uniformity90%
Matrix size2.44 cm (0.96")
Heat dissipation3412 BTU/h

Light source

Light source typeLamp
Service life of light source1500 h
Service life of light source (economic mode)2000 h
Lamp power400 W
Lamps quantity2 lamp(s)

Video

Analog signal format systemNTSC
Full HDYes
3DYes
Supported graphics resolutions1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity0
Serial interface typeRS-232
BNC input ports5
CardBus PCMCIA slot typeNo

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo
Optical disc player typeNot included

Features

Noise level43 dB
HDCPYes
Dot clock scanning frequency165 MHz
CertificationFCC part 15 Class A, CE EN55022 Class A, CE, TUV, WEEE

Design

Product typeLarge venue projector
Market positioningPresentation
Product colourBlack
PlacementDesktop, Ceiling
LED indicatorsYes

Power

Power sourceAC
Power consumption (standby)2 W
Power consumption (max)1000 W
AC input voltage90 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Weight32 kg
Width500 mm
Depth631 mm
Height270 mm
Package width669 mm
Package depth830 mm
Package height448 mm

Packaging content

Remote control includedYes
Remote control typeIR

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
