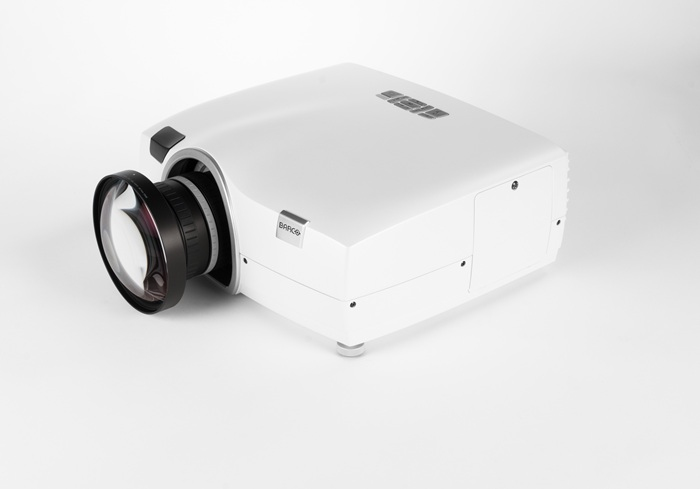

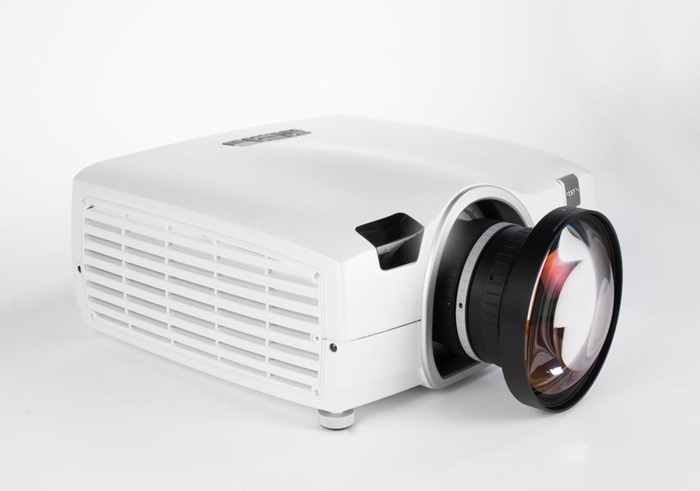

Barco CTWU-61B Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D White

Barco CTWU-61B Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D White

Model CTWU-61BPart no. R9023252EAN 783555028957

58 specifications
  • Noise33 dB
  • TypeLarge venue projector
  • Weight7.5 kg
  • ColourWhite
  • Projector brightness5500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
33 dB
Type
Large venue projector
Weight
7.5 kg
Colour
White
Projector brightness
5500 ANSI lumens
Light source type
Lamp
Brand
Barco
Model
CTWU-61B
Part number
R9023252
EAN / UPC
783555028957, 5499778005020
Also known as
Barco CTWU-61B Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D White

Specifications

58 specifications in 14 groups

Projector

Projector brightness5500 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)5300:1
Native aspect ratio16:10
Uniformity80%
Matrix typeDMD
Heat dissipation1.807 BTU/h

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)2500 h
Lamp typeUHP
Lamp power350 W
Lamps quantity1 lamp(s)

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DYes
Supported graphics resolutions2560 x 1600 (WQXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4a
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
DisplayPorts quantity2
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level33 dB
Noise level (economic mode)30 dB
CertificationCE, FCC Class A, cCSAus, cUL, UL

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight7.5 kg
Width342 mm
Depth306 mm
Height143 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC

Other features

RS-232 ports1
I/O ports3G-SDI, HDBaseT
