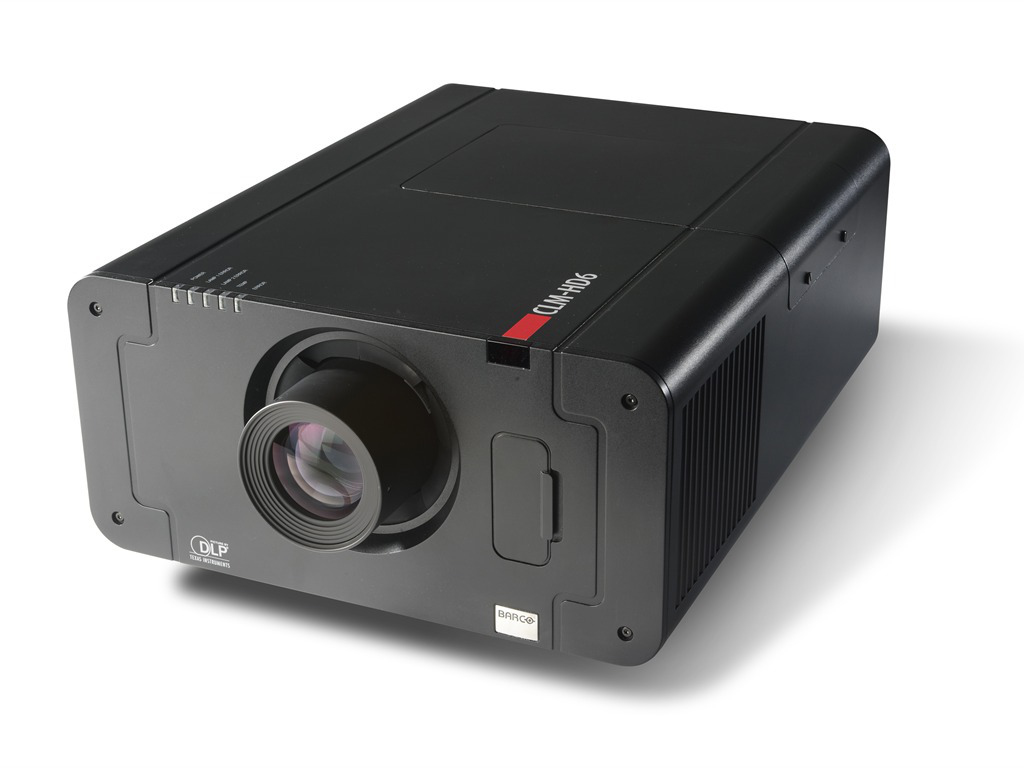

Barco CLM HD6

Barco CLM HD6

Model CLM HD6Part no. R9006410

68 specifications
  • Noise40 dB
  • TypeLarge venue projector
  • Weight24 kg
  • ColourBlack
  • Projector brightness5700 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
40 dB
Type
Large venue projector
Weight
24 kg
Colour
Black
Projector brightness
5700 ANSI lumens
Light source type
Lamp
Brand
Barco
Model
CLM HD6
Part number
R9006410
Also known as
Barco CLM HD6 Large venue projector 5700 ANSI lumens DLP 1080p (1920x1080) Black

Specifications

68 specifications in 17 groups

Projector

Projector brightness5700 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)1300:1
Uniformity95%
Digital gamma correctionYes
Matrix size1.65 cm (0.65")
Heat dissipation3087 BTU/h

Light source

Light source typeLamp
Service life of light source1500 h
Service life of light source (economic mode)2000 h
Lamp power330 W
Lamps quantity2 lamp(s)

Lens system

Focal length range1.27 - 7.32 mm
Horizontal lens shift range-20 - 20%
Vertical lens shift range-20 - 120%

Video

Analog signal format systemNTSC
Full HDYes
HD-ReadyYes
Supported graphics resolutions1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Supported video modes1080p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in0
Serial interface typeRS-232
BNC input ports5
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level40 dB
HDCPYes
Dot clock scanning frequency165 MHz
CertificationFCC, CE EN55022 Cl. A.

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)905 W
Power consumption (standby)2 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Weight24 kg
Width436 mm
Depth550 mm
Height236 mm
Package weight27 kg

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, HDMI-DVI

Technical details

Compliance certificatesRoHS

Other features

Aspect ratio16:9
Package dimensions (WxDxH)661 x 822 x 380 mm
Dimensions (WxDxH)436 x 550 x 236 mm
Maximum analog resolution1600 x 1200 pixels
Maximum digital resolution1920 x 1080 pixels
RS-232 ports1
