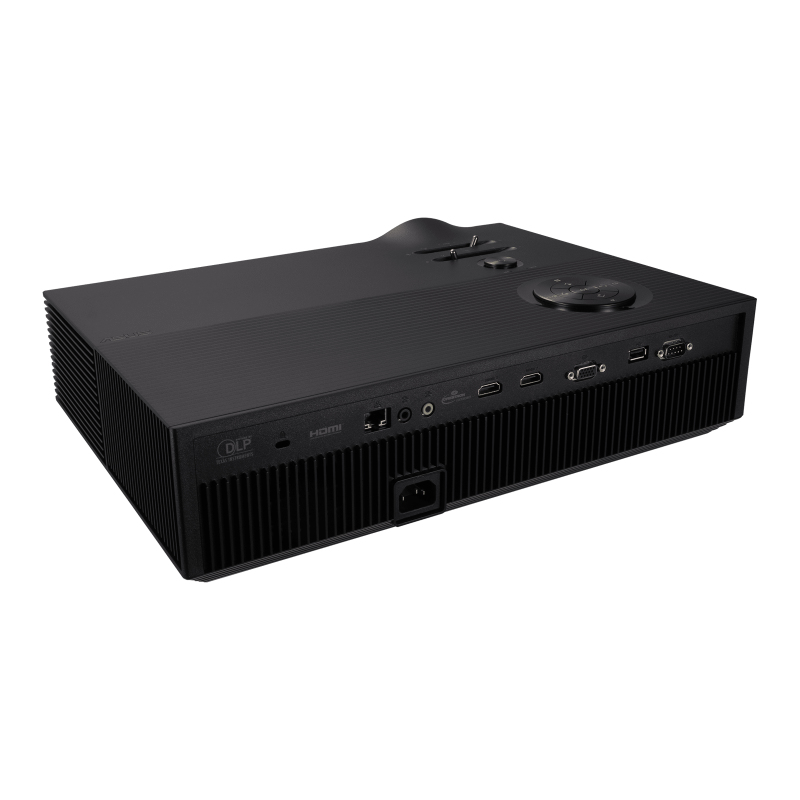

H1 Standard throw projector 3000 ANSI lumens DLP 1080p (1920x1080) 3D Black
Model H1Part no. 90LJ00F0-B00210
59 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight5.7 kg
- ColourBlack
- Projector brightness3000 ANSI lumens
- Light source typeLED
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 5.7 kg
- Colour
- Black
- Projector brightness
- 3000 ANSI lumens
- Light source type
- LED
- Brand
- ASUS
- Category
- Data Projector
- Model
- H1
- Part number
- 90LJ00F0-B00210
- Also known as
- ASUS H1 Standard throw projector 3000 ANSI lumens DLP 1080p (1920x1080) 3D Black
Specifications
59 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 800:1 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 1016 - 5080 mm (40 - 200") |
| Projection distance | 1.15 - 5.7 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 101 kHz |
| Vertical scan range | 24 - 120 Hz |
| Colour gamut | 125% |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.3:1 - 1.56:1 |
| Offset | 83% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Video colour modes | sRGB |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Preset modes | 3D, Dynamic, Game, Standard, Theatre, sRGB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling, Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | USB |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 360 W |
| AC adapter output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.7 kg |
| Width | 405 mm |
| Depth | 283 mm |
| Height | 99 mm |
| Package width | 560 mm |
| Package depth | 430 mm |
| Package height | 274 mm |
| Package weight | 8.1 kg |
