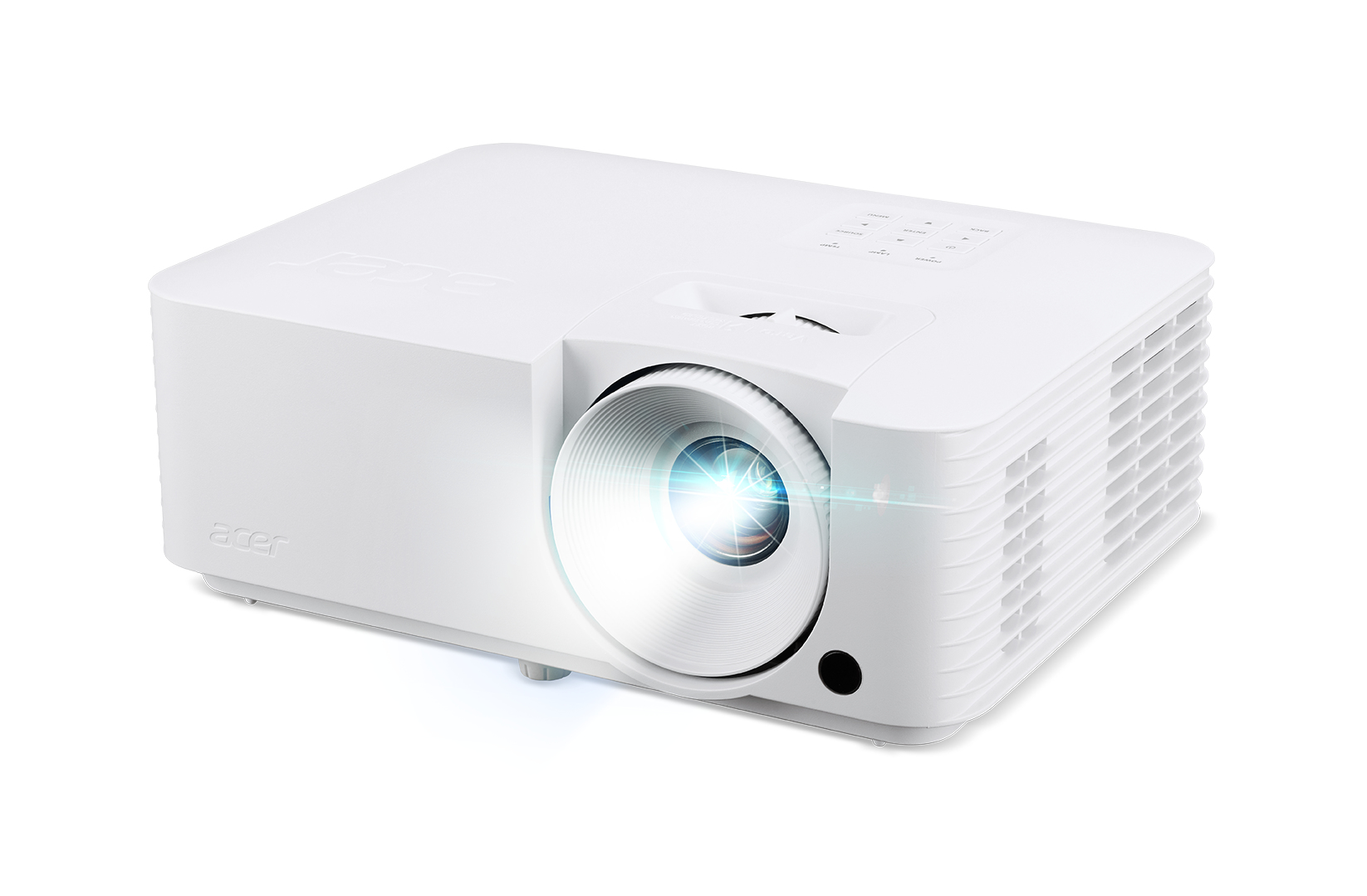

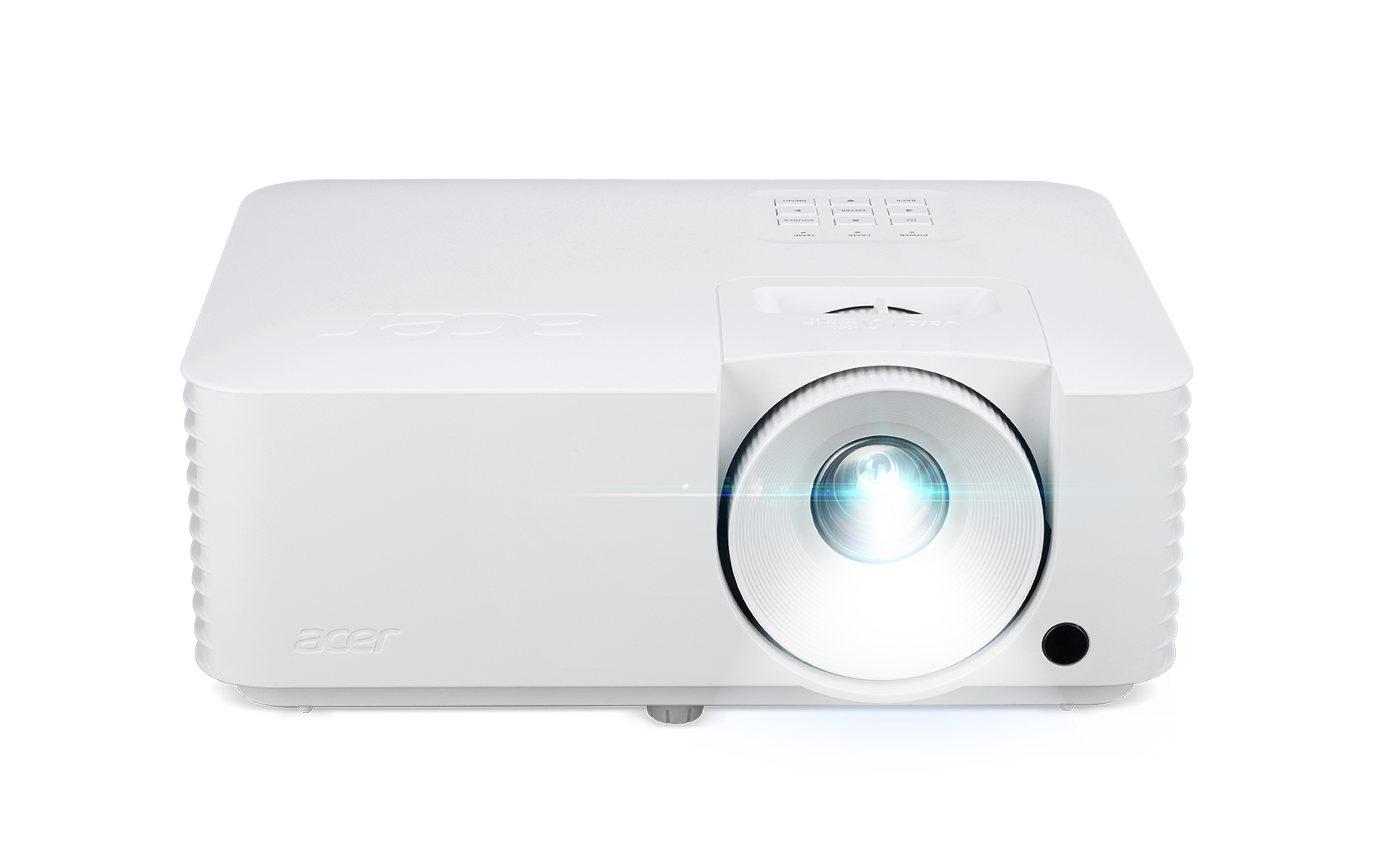

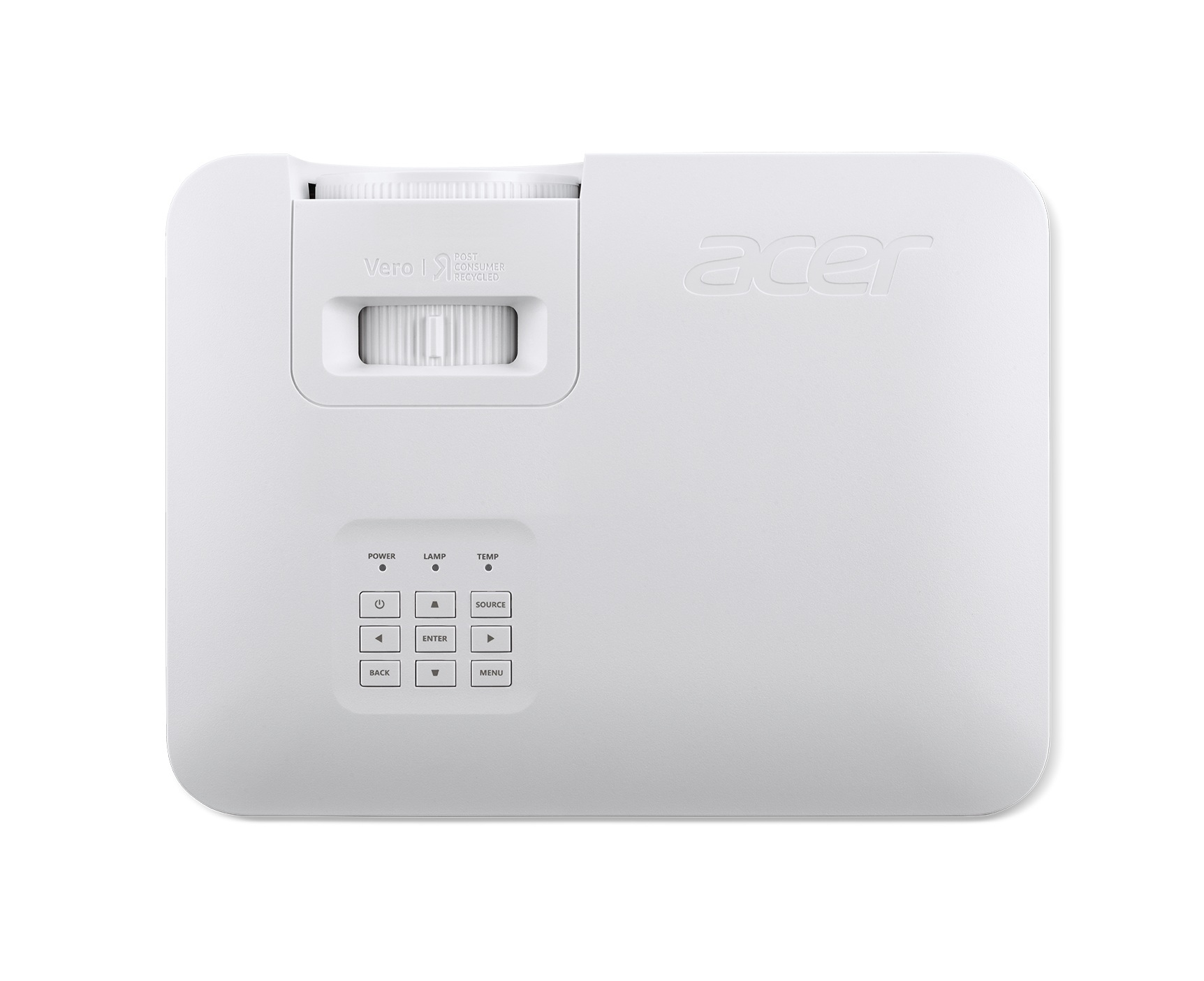

XL2530 4800 ANSI lumens DLP WXGA (1200x800) White
Model XL2530Part no. MR.JWS11.001EAN 4711121610509
68 specifications
- Noise26 dB
- Weight2.9 kg
- ColourWhite
- Projector brightness4800 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 26 dB
- Weight
- 2.9 kg
- Colour
- White
- Projector brightness
- 4800 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- XL2530
- Part number
- MR.JWS11.001
- EAN / UPC
- 4711121610509
- Also known as
- Acer XL2530 4800 ANSI lumens DLP WXGA (1200x800) White
Specifications
68 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4800 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 50000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 685.8 - 7620 mm (27 - 300") |
| Projection distance | 1 - 9.8 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3600 ANSI lumens |
| Uniformity | 75% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 21.86 - 24 mm |
| Aperture range (F-F) | 2.5 - 2.67 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |

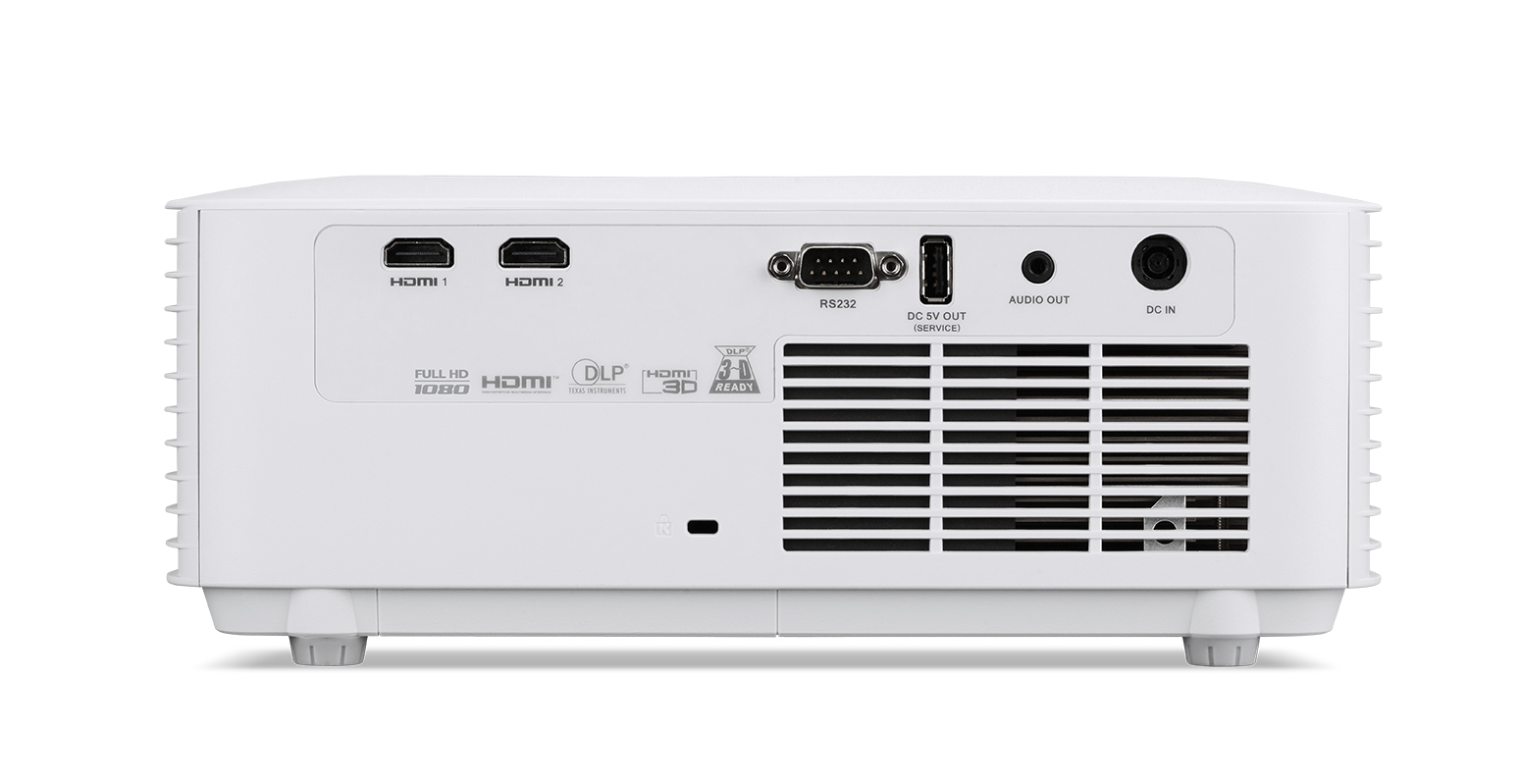

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4b |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front |
| High Dynamic Range (HDR) supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 145 W |
| AC input voltage | 100 - 240 V |
| Auto power off | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.9 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 115 mm |
| Package width | 400 mm |
| Package depth | 158 mm |
| Package height | 280 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | HDMI, Power |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
