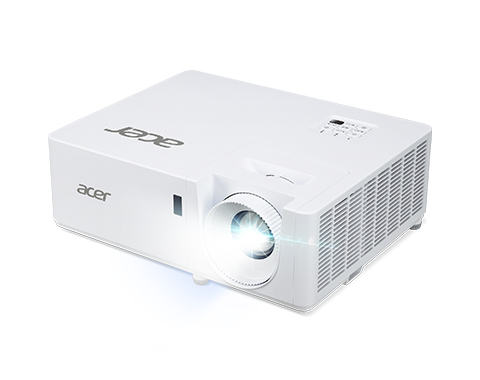

Essential XL1520i Standard throw projector 3100 ANSI lumens DLP 1080p (1920x1080) 3D White
Model XL1520iPart no. MR.JUD11.001
64 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight4.1 kg
- ColourWhite
- Projector brightness3100 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 4.1 kg
- Colour
- White
- Projector brightness
- 3100 ANSI lumens
- Light source type
- Laser
- Brand
- Acer
- Category
- Data Projector
- Model
- XL1520i
- Part number
- MR.JUD11.001
- Also known as
- Acer Essential XL1520i Standard throw projector 3100 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
64 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3100 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | No |
| Number of colours | 1.07 billion colours |
| Uniformity | 80% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12.81 - 16.74 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.48 - 1.62 |
| Offset | 116% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 29 dB |
| Projection modes | Ceiling, Front, Rear |
| 4K Ultra HD upscaling | Yes |
| Country of origin | China |
| Compatible operating systems | Windows, MacOS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.1 kg |
| Width | 337 mm |
| Depth | 265 mm |
| Height | 119 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
