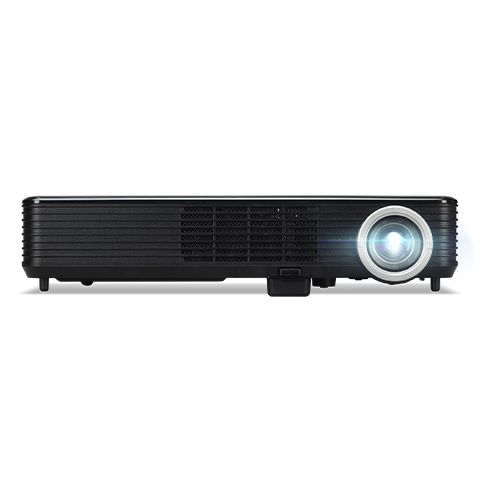

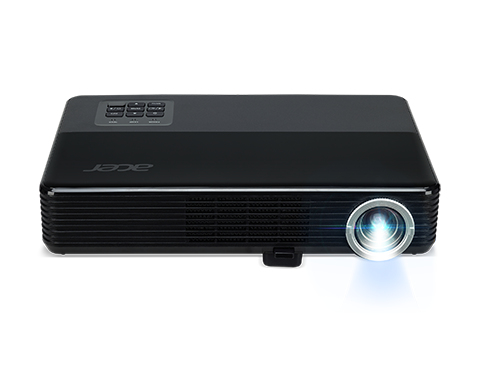

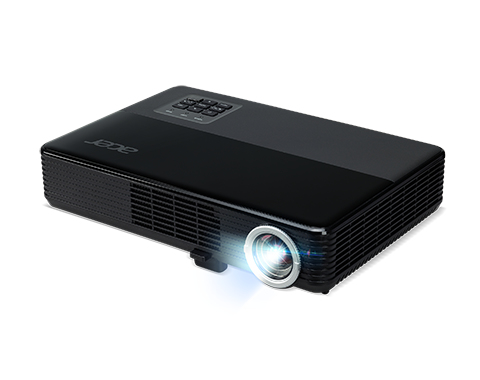

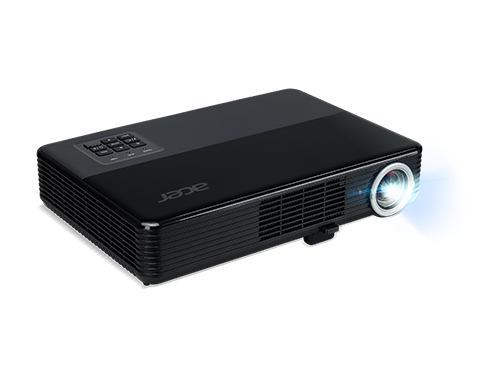

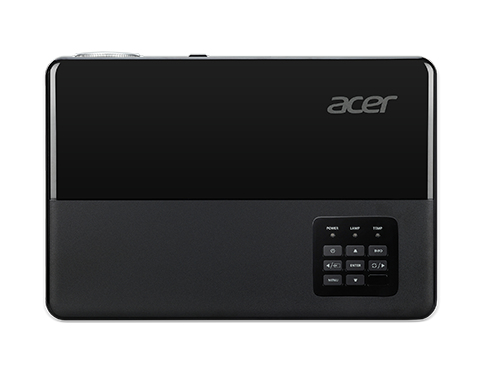

Portable LED XD1320Wi Standard throw projector 1600 ANSI lumens DLP WXGA (1280x800) Black
Model XD1320WiPart no. MR.JU311.001EAN 4710886314554
63 specifications
- TypeStandard throw projector
- Weight2.1 kg
- ColourBlack
- Projector brightness1600 ANSI lumens
- Light source typeLED
- Zoom capabilityYes
Overview
- Type
- Standard throw projector
- Weight
- 2.1 kg
- Colour
- Black
- Projector brightness
- 1600 ANSI lumens
- Light source type
- LED
- Zoom capability
- Yes
- Brand
- Acer
- Category
- Data Projector
- Model
- XD1320Wi
- Part number
- MR.JU311.001
- EAN / UPC
- 4710886314554
- Also known as
- Acer Portable LED XD1320Wi Standard throw projector 1600 ANSI lumens DLP WXGA (1280x800) Black
Specifications
63 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 1000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Smart projector | No |
| Projection distance | 0.8 - 8.2 m |
| Number of colours | 16.78 million colours |
| Uniformity | 85% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Zoom ratio | 1:1 |
| Throw ratio | 1.27 |
| Offset | 103% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
| Country of origin | China |
| Compatible operating systems | Windows, MacOS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | Black |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 177 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
| Width | 297 mm |
| Depth | 200 mm |
| Height | 68.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Carrying case | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
