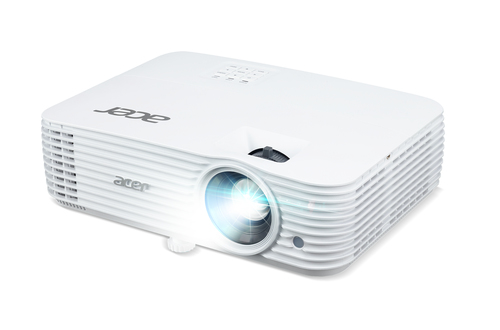

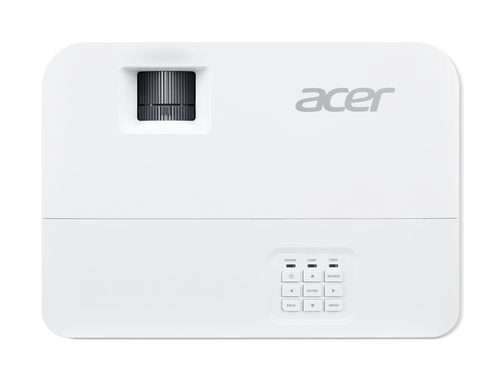

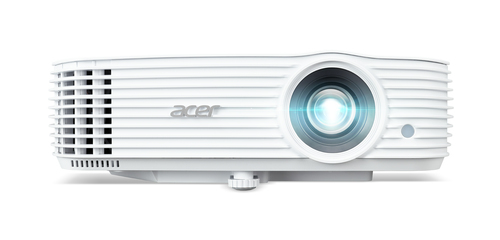

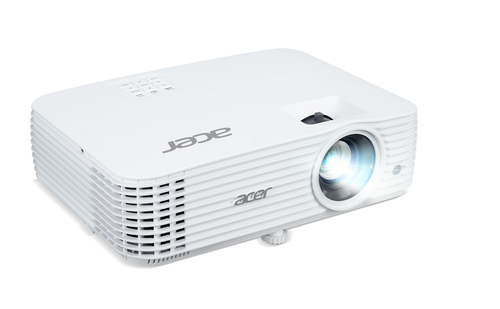

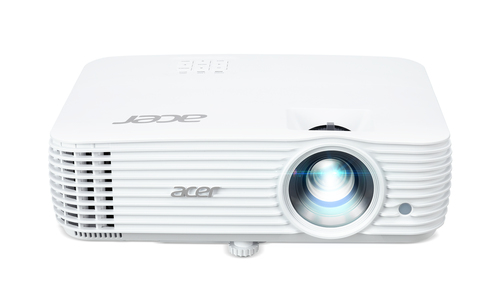

Essential X1629H Ceiling-mounted projector 4500 ANSI lumens DLP WUXGA (1920x1200) White
Model X1629HPart no. MR.JU111.001EAN 4710886319948
61 specifications
- TypeCeiling-mounted projector
- Weight2.6 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Ceiling-mounted projector
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- X1629H
- Part number
- MR.JU111.001
- EAN / UPC
- 4710886319948
- Also known as
- Acer Essential X1629H Ceiling-mounted projector 4500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
61 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 0 - 7620 mm (0 - 300") |
| Projection distance | 1 - 9.7 m |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -40 - 40° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 15.85 - 17.44 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.5 - 1.65 (2540 mm@3.23 m) |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling-mounted projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 322 mm |
| Depth | 225 mm |
| Height | 91 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
