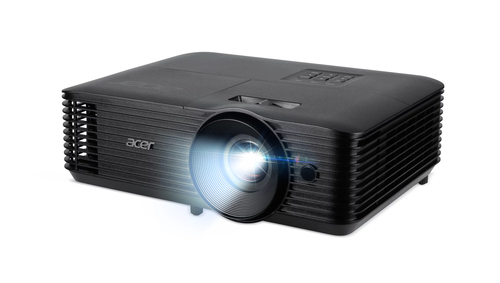

X1328WHn 5000 ANSI lumens DLP WXGA (1200x800) Black
Model X1328WHnPart no. MR.JX211.001EAN 4711121799365
54 specifications
- Weight2.8 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLamp
- FocusManual
- VGA (D-Sub) ports quantity1
Overview
- Weight
- 2.8 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- VGA (D-Sub) ports quantity
- 1
- Brand
- Acer
- Category
- Data Projector
- Model
- X1328WHn
- Part number
- MR.JX211.001
- EAN / UPC
- 4711121799365
- Also known as
- Acer X1328WHn 5000 ANSI lumens DLP WXGA (1200x800) Black
Specifications
54 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 685.8 - 7620 mm (27 - 300") |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4000 ANSI lumens |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 21.85 - 24 mm |
| Aperture range (F-F) | 2.41 - 2.53 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1 |
| Throw ratio | 1.54 - 1.72 |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1280 x 800 (WXGA), 1920 x 1200 (WUXGA) |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| Compatible operating systems | Windows PC Mac PC Google Chrome PC |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Presentation |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 275 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 205 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Packaging content | Security Card Lens Cap |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
