X1328AF DLP WXGA (1280x800) Black
Model X1328AFPart no. MR.JXU11.001EAN 4711474154019
39 specifications
- Weight2.8 kg
- ColourBlack
- Projection technologyDLP
- Light source typeLamp
- FocusManual
- Full HDYes
Overview
- Weight
- 2.8 kg
- Colour
- Black
- Projection technology
- DLP
- Light source type
- Lamp
- Focus
- Manual
- Full HD
- Yes
- Brand
- Acer
- Category
- Data Projector
- Model
- X1328AF
- Part numbers
- MR.JXU11.001, MR.JXU11.002
- EAN / UPC
- 4711474154019, 4711474271273
- Also known as
- Acer X1328AF DLP WXGA (1280x800) Black
Specifications
39 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Smart projector | No |
| Screen size compatibility | 584.2 - 7620 mm (23 - 300") |
| Horizontal scan range | 30 - 100 kHz |
| Vertical scan range | 50 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Aperture range (F-F) | 2.41 - 2.53 |
| Zoom capability | Yes |
| Zoom ratio | 1:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

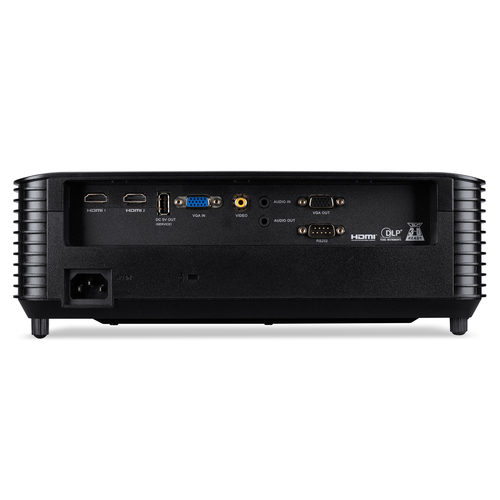

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| Component video (YPbPr/YCbCr) in | 1 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 240 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
