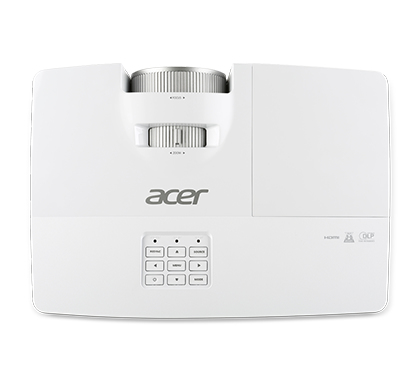

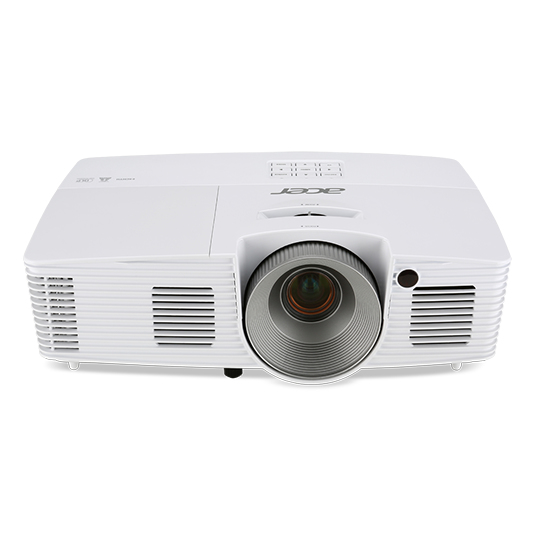

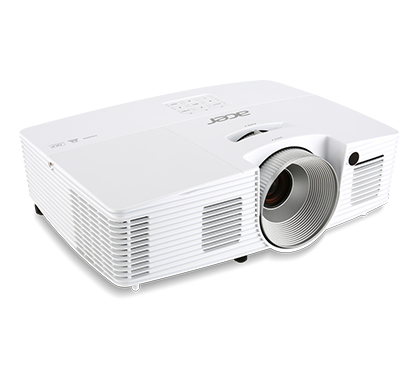

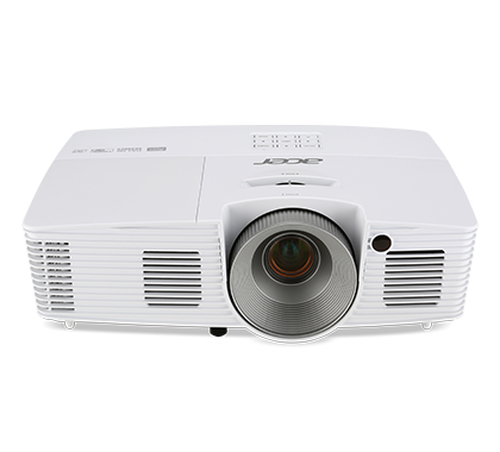

Acer Basic X125H Standard throw projector 3300 ANSI lumens DLP XGA (1024x768) 3D White

Acer Basic X125H Standard throw projector 3300 ANSI lumens DLP XGA (1024x768) 3D White

Model X125HPart no. MR.JN911.001EAN 4713392531767

72 specifications
  • Noise31 dB
  • TypeStandard throw projector
  • Weight2.5 kg
  • ColourWhite
  • Projector brightness3300 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
31 dB
Type
Standard throw projector
Weight
2.5 kg
Colour
White
Projector brightness
3300 ANSI lumens
Light source type
Lamp
Brand
Acer
Model
X125H
Part numbers
MR.JN911.001, MR.JN911.002
EAN / UPC
4713392531767, 4713392531774
Also known as
Acer Basic X125H Standard throw projector 3300 ANSI lumens DLP XGA (1024x768) 3D White

Specifications

72 specifications in 16 groups

Projector

Projector brightness3300 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Native aspect ratio4:3
Supported aspect ratios16:9
Screen size compatibility685.8 - 7620 mm (27 - 300")
Projection distance1.2 - 11.8 m
Contrast ratio (dynamic)20000:1
Number of colours1.073 billion colours
Uniformity85%
Horizontal synchronization (max)100 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical-40 - 40°
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.024 kHz

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp typeOSRAM
Lamp power195 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range21.85 - 24.01 mm
Aperture range (F-F)2.41 - 2.53
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.1:1
Digital zoom2x
Optical zoom1.1x
Throw ratio1.94 - 2.16:1

Video

Analog signal format systemNTSC, PAL, SECAM
3DYes
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4a
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
USB connector typeMini-USB B
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level31 dB
Noise level (economic mode)28 dB
HDCPYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power3 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)235 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight2.5 kg
Width314 mm
Depth223 mm
Height93 mm

Other features

Audio input1
RS-232 ports1
