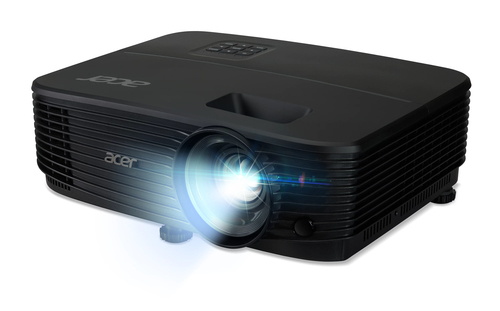

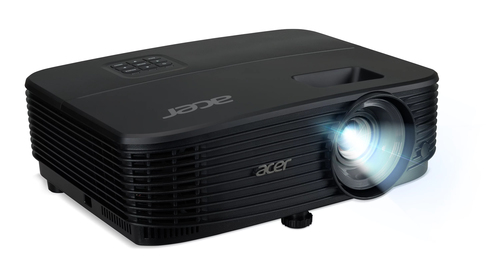

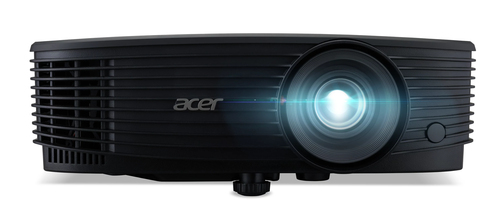

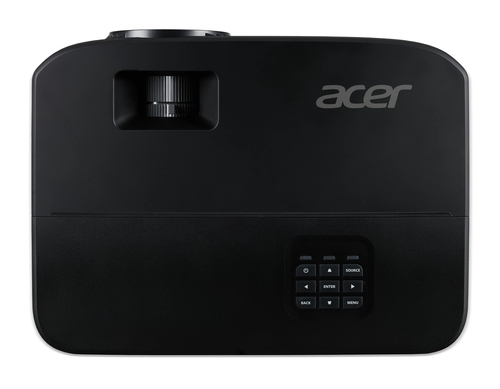

X1229HP Standard throw projector 4800 ANSI lumens DLP XGA (1024x768) White
Model X1229HPPart no. MR.JUJ11.00FEAN 4710886600619
48 specifications
- TypeStandard throw projector
- Weight2.4 kg
- ColourWhite
- Projector brightness4800 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- White
- Projector brightness
- 4800 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- X1229HP
- Part numbers
- MR.JUJ11.00F, MR.JUJ11.001
- EAN / UPC
- 4710886600619, 4710886600480
- Also known as
- Acer X1229HP Standard throw projector 4800 ANSI lumens DLP XGA (1024x768) White
Specifications
48 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4800 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 584.2 - 7620 mm (23 - 300") |
| Contrast ratio (dynamic) | 2000000:1 |
| Projector brightness (economic mode) | 3840 ANSI lumens |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 203 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 22 - 24.10 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.96 - 2.15 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1024 x 768 (XGA), 1920 x 1200 (WUXGA) |

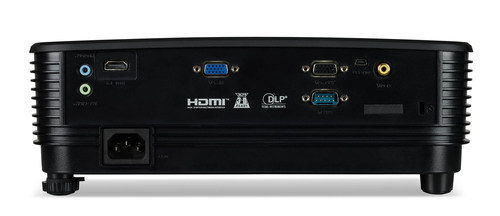

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 205 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 299.5 mm |
| Depth | 220 mm |
| Height | 105.1 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
