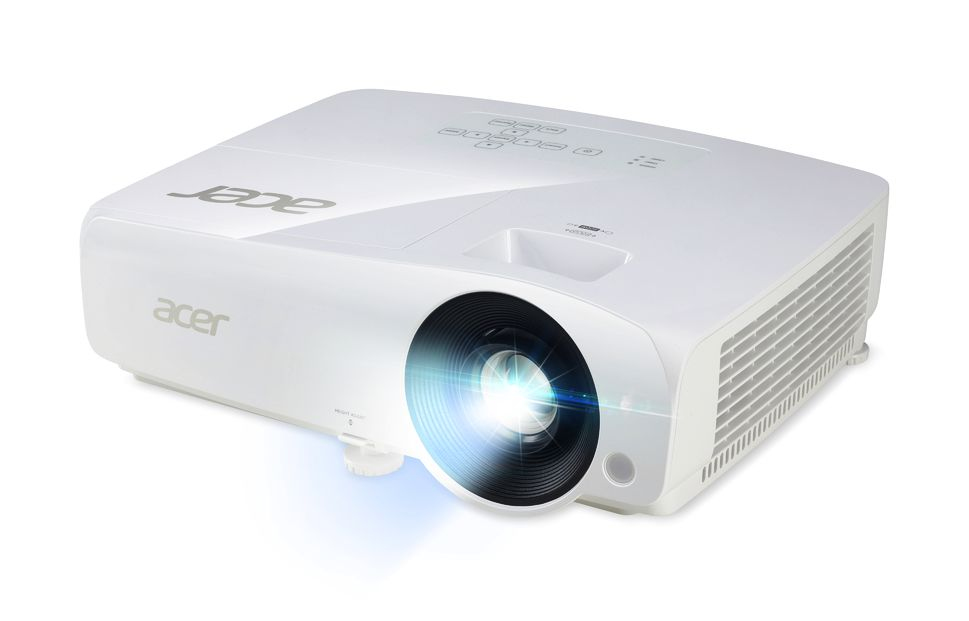

X1225i Ceiling-mounted projector 3600 ANSI lumens DLP XGA (1024x768) White
Model X1225iPart no. MR.JRB11.001EAN 4710180073232
67 specifications
- Noise29 dB
- TypeCeiling-mounted projector
- Weight2.6 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 29 dB
- Type
- Ceiling-mounted projector
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- X1225i
- Part numbers
- MR.JRB11.001, MR.JRB11.002
- EAN / UPC
- 4710180073232, 4710180073249
- Also known as
- Acer X1225i Ceiling-mounted projector 3600 ANSI lumens DLP XGA (1024x768) White
Specifications
67 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 1021.1 - 7620 mm (40.2 - 300") |
| Projection distance | 1 - 12.1 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 2880 ANSI lumens |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -+30° |
| Keystone correction, vertical | -+30° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 22 - 25.79 mm |
| Aperture range (F-F) | 2.42 - 2.62 |
| Zoom capability | Yes |
| Digital zoom | 1.8x |
| Throw ratio | 1.94 - 2.33:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

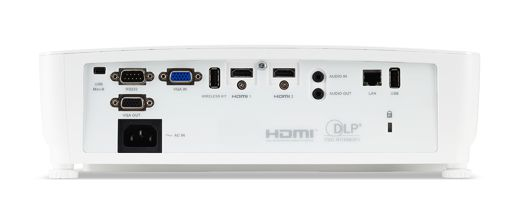

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 29 dB |
| Noise level (economic mode) | 26 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling-mounted projector |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 332 mm |
| Depth | 244 mm |
| Height | 108 mm |
| Package width | 420 mm |
| Package depth | 320 mm |
| Package height | 148 mm |
| Package weight | 3.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
