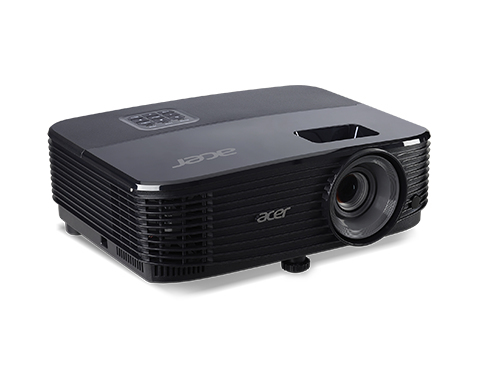

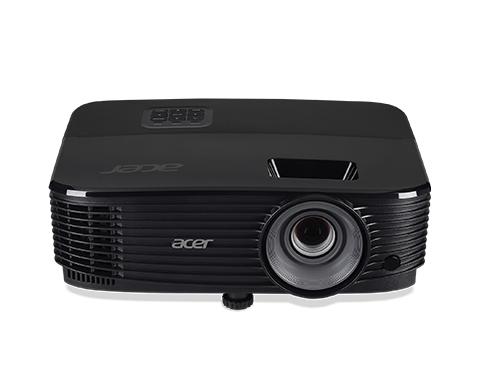

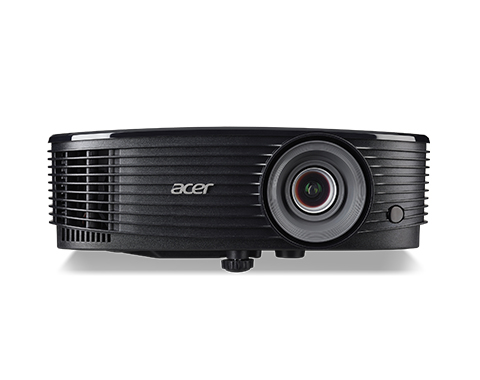

X1123HP + Carrycase
Model X1123HP + CarrycasePart no. MR.JSA11.001+MC.JPV11.005
54 specifications
- TypeCeiling-mounted projector
- Weight2.4 kg
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Focal length range22 - 24.1 mm
Overview
- Type
- Ceiling-mounted projector
- Weight
- 2.4 kg
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 22 - 24.1 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- X1123HP + Carrycase
- Part number
- MR.JSA11.001+MC.JPV11.005
- Also known as
- Acer Essential X1123HP + Carrycase Ceiling-mounted projector 4000 ANSI lumens DLP SVGA (800x600) Black
Specifications
54 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 584.2 - 7620 mm (23 - 300") |
| Projection distance | 1 - 12 m |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom ratio | 1.11:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| Compatible operating systems | Windows Mac |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling-mounted projector |
| Market positioning | Portable |
| Product colour | Black |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 299.5 mm |
| Depth | 220 mm |
| Height | 105.1 mm |
Packaging content
| Specification | Value |
|---|---|
| Carrying case | Yes |
