Essential X1123HP Standard throw projector 4000 ANSI lumens DLP SVGA (800x600) Black
Model X1123HPPart no. MR.JSA11.001EAN 4710180733556
58 specifications
- TypeStandard throw projector
- Weight2.4 kg
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- X1123HP
- Part numbers
- MR.JSA11.001, MR.JSA11.002
- EAN / UPC
- 4710180733556, 4710180735147
- Also known as
- Acer Essential X1123HP Standard throw projector 4000 ANSI lumens DLP SVGA (800x600) Black
Specifications
58 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Smart projector | No |
| Screen size compatibility | 584.2 - 7620 mm (23 - 300") |
| Projection distance | 0.58 - 7.62 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Horizontal synchronization (max) | 0.12 kHz |
| Horizontal synchronization (min) | 0.02 kHz |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 22 - 24.10 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1 |
| Throw ratio | 1.96 - 2.15 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |

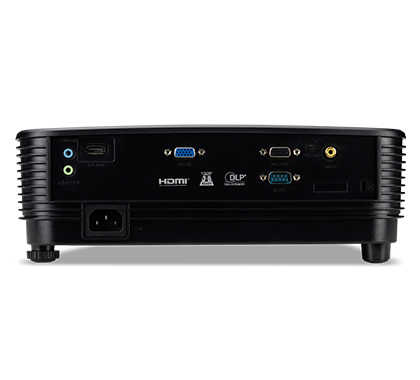

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| S/PDIF out port | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | Black |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (economy mode) | 205 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 299.5 mm |
| Depth | 220 mm |
| Height | 105.1 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
