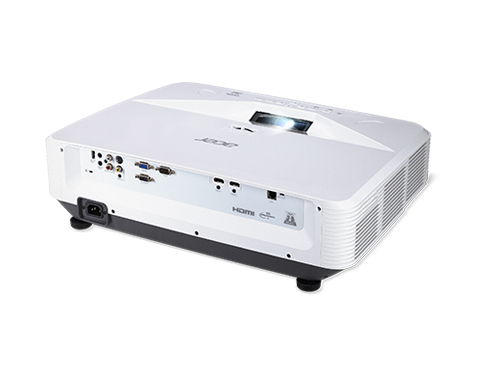

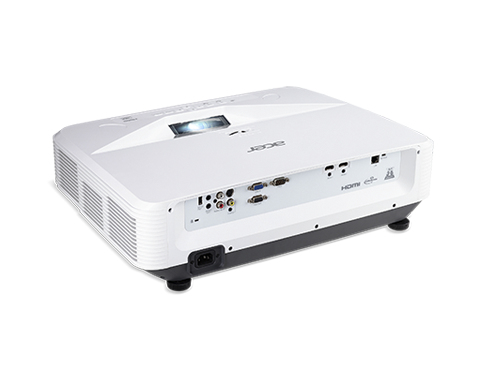

U5 UL6500 Ultra short throw projector 5500 ANSI lumens DLP 1080p (1920x1080) White
Model UL6500Part no. MR.JQM11.005EAN 4713883817837
57 specifications
- Noise30 dB
- TypeUltra short throw projector
- Weight10 kg
- ColourWhite
- Projector brightness5500 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 30 dB
- Type
- Ultra short throw projector
- Weight
- 10 kg
- Colour
- White
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Acer
- Category
- Data Projector
- Model
- UL6500
- Part numbers
- MR.JQM11.005, MR.JQM11.006, MR.JQM11.007
- EAN / UPC
- 4713883817837, 4713883664516, 4713883664523
- Also known as
- Acer U5 UL6500 Ultra short throw projector 5500 ANSI lumens DLP 1080p (1920x1080) White
Specifications
57 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 2032 - 3810 mm (80 - 150") |
| Projection distance | 0.075 - 0.448 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 102 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -+30° |
| Keystone correction, vertical | -+30° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.023 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 34.9 mm |
| Digital zoom | 2x |
| Optical zoom | 1x |
| Throw ratio | 0.23:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |

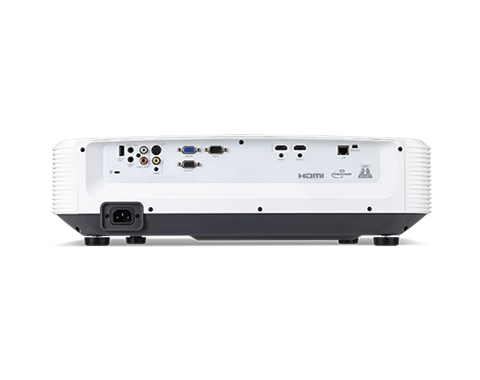

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Noise level (economic mode) | 28 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | White |
| Placement | Ceiling, Floor |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 480 W |
| AC input voltage | 100 - 240 V |
Software
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Carrying case | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
Other features
| Specification | Value |
|---|---|
| Maximum digital resolution | 1920 x 1200 pixels |
