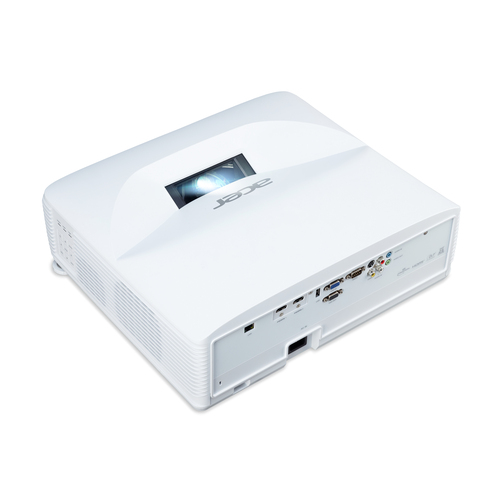

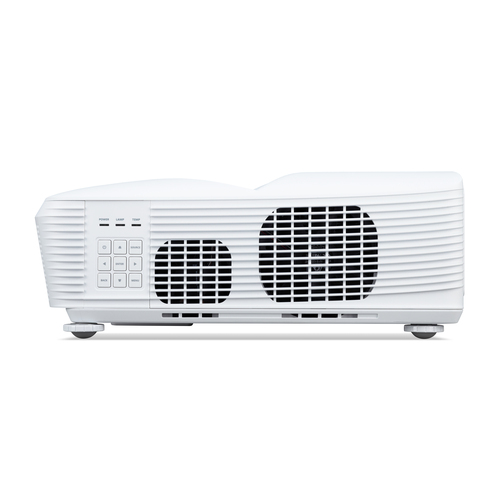

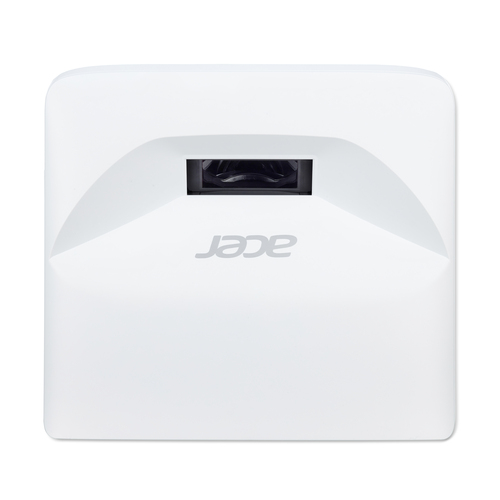

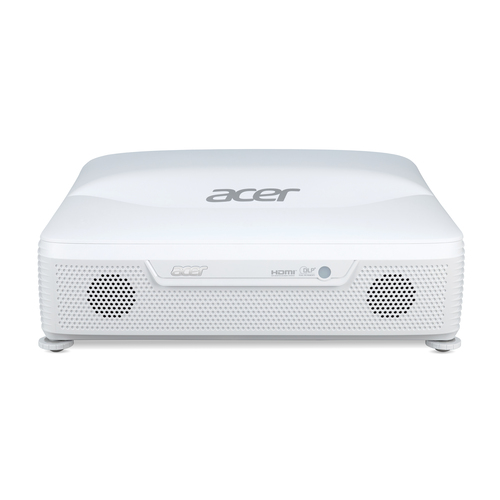

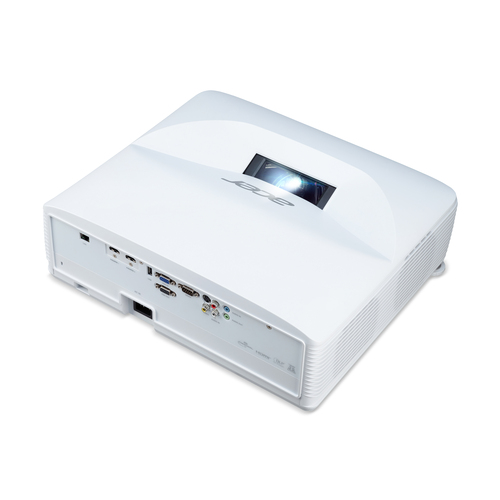

UL5630 projector
Model UL5630 projectorPart no. MR.JT711.002
40 specifications
- Noise30 dB
- TypeUltra short throw projector
- Weight7.7 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 30 dB
- Type
- Ultra short throw projector
- Weight
- 7.7 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- UL5630 projector
- Part number
- MR.JT711.002
- Also known as
- Acer UL5630 projector Ultra short throw projector 4500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
40 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:10 |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |

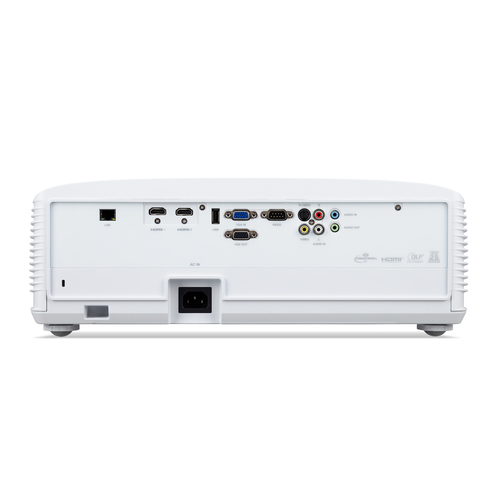

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RJ-45 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 30 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.7 kg |
| Width | 429 mm |
| Depth | 389 mm |
| Height | 158 mm |
