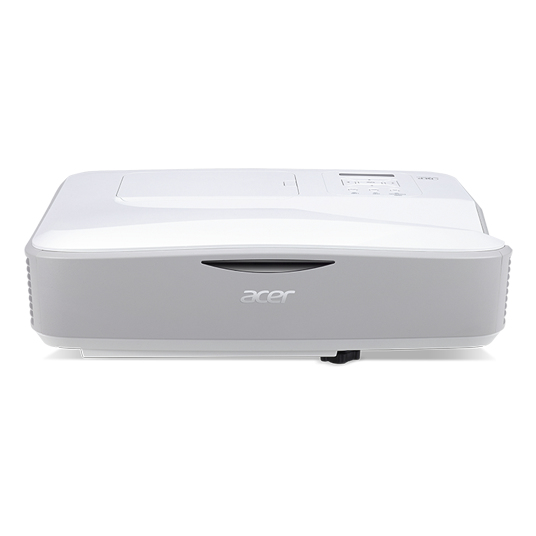

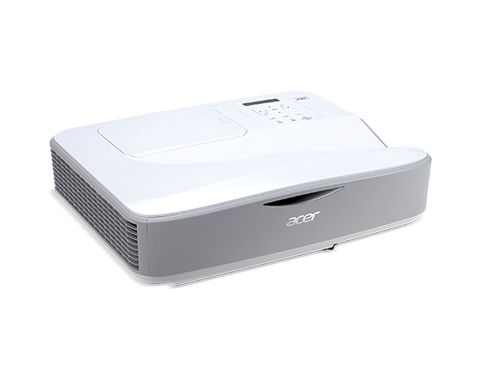

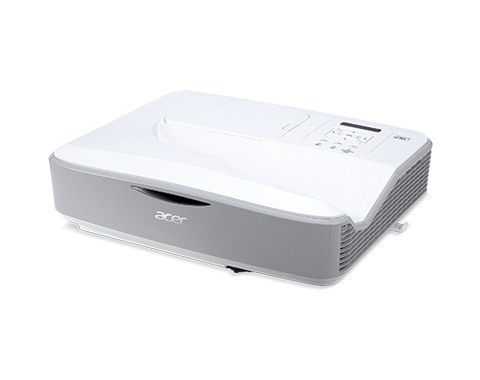

Acer U5530 LAN

Acer U5530 LAN

Model U5530 LANPart no. MR.JQV11.003EAN 4713883790413

62 specifications
  • Noise31 dB
  • TypeCeiling-mounted projector
  • Weight4.6 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
31 dB
Type
Ceiling-mounted projector
Weight
4.6 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
Acer
Model
U5530 LAN
Part number
MR.JQV11.003
EAN / UPC
4713883790413
Also known as
Acer U5 U5530 LAN Ceiling-mounted projector 3000 ANSI lumens DLP 1080p (1920x1080) White

Specifications

62 specifications in 15 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)18000:1
Native aspect ratio16:9
Supported aspect ratios4:3, 16:9
Screen size compatibility2032 - 3048 mm (80 - 120")
Projection distance0.45 - 0.67 m
Number of colours1.073 billion colours
Horizontal synchronization (max)100 kHz
Horizontal synchronization (min)24 kHz
Keystone correction, vertical-5 - 5°
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.024 kHz

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)5000 h
Lamp typeUHP
Lamp power260 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length3.72 mm
Digital zoom2x
Optical zoom1x
Throw ratio0.25:1

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DNo
Supported graphics resolutions1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

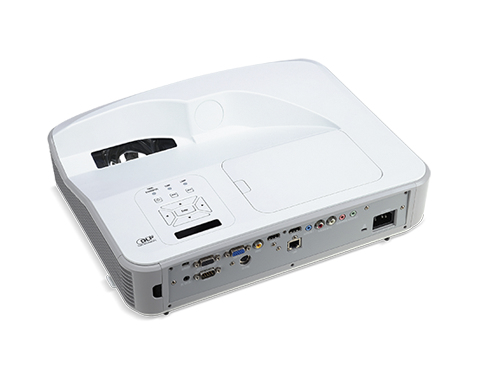

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Composite video in1
Audio (L/R) in3
Audio (L/R) out1

Network

Smart TVNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

Noise level31 dB
Noise level (economic mode)26 dB
Projection modesCeiling, Front, Rear

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeCeiling-mounted projector
Market positioningPresentation
Product colourWhite
PlacementCeiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)320 W
Power consumption (economy mode)270 W
AC input voltage100 - 240 V

Software

Mac compatibilityYes
Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)0 - 85%

Weight & dimensions

Weight4.6 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
Quick start guideYes
