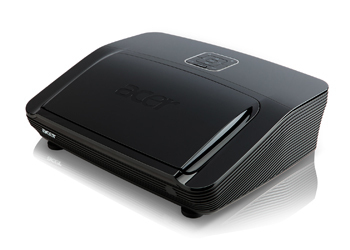

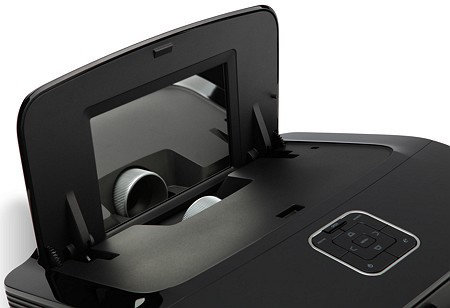

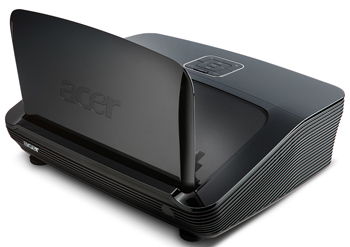

Acer U5200 Short throw projector 2500 ANSI lumens DLP XGA (1024x768)
Model U5200Part no. EY.JC205.001EAN 4717276270568
39 specifications
- Noise33 dB
- TypeShort throw projector
- Weight7 kg
- Projector brightness2500 ANSI lumens
- Light source typeLamp
- Digital zoom2x
Overview
- Noise
- 33 dB
- Type
- Short throw projector
- Weight
- 7 kg
- Projector brightness
- 2500 ANSI lumens
- Light source type
- Lamp
- Digital zoom
- 2x
- Brand
- Acer
- Category
- Data Projector
- Model
- U5200
- Part numbers
- EY.JC205.001, EY.JC205.001/KIT
- EAN / UPC
- 4717276270568, 4717276271732
- Also known as
- Acer U5200 Short throw projector 2500 ANSI lumens DLP XGA (1024x768)
Specifications
39 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Screen size compatibility | 38.6 - 193.5 mm (1.52 - 7.62") |
| Projection distance | 0.024 - 1.49 m |
| Uniformity | 90% |
| Horizontal scan range | 30 - 100 kHz |
| Vertical scan range | 50 - 120 Hz |
| Keystone correction, vertical | ±40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp type | UHP |
| Lamp power | 230 W |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 2x |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Short throw |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 380 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3, 16:9 |
| Dimensions (WxDxH) | 422 x 345 x 140 mm |
| RS-232 ports | 1 |
