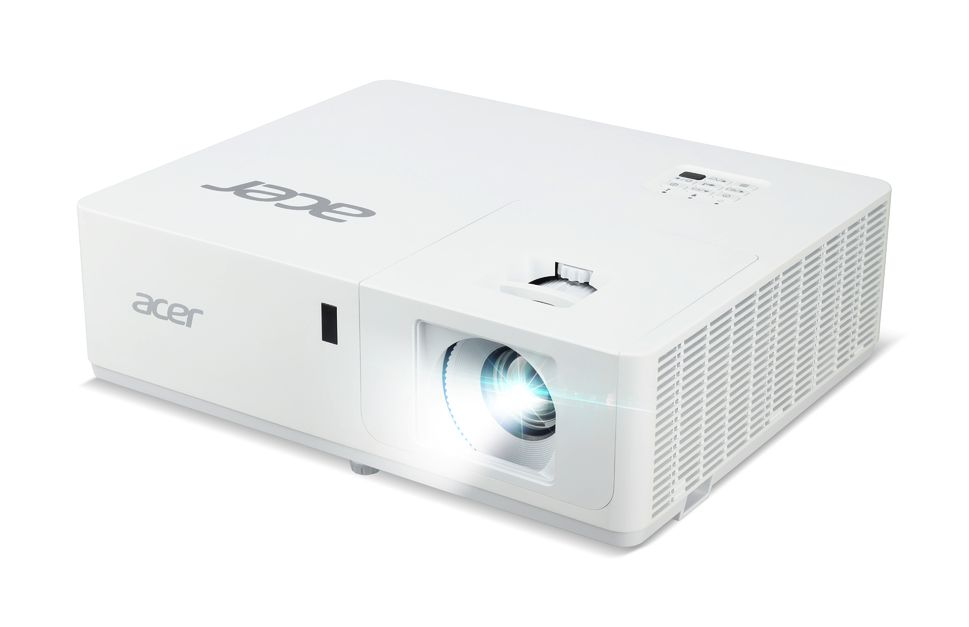

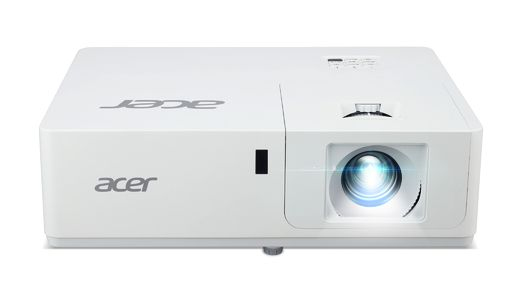

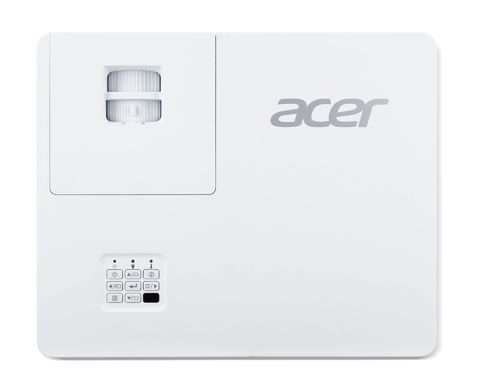

PL6610T Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) White
Model PL6610TPart no. MR.JR611.001EAN 4710180131338
66 specifications
- Noise31 dB
- TypeLarge venue projector
- Weight6 kg
- ColourWhite
- Projector brightness5500 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 31 dB
- Type
- Large venue projector
- Weight
- 6 kg
- Colour
- White
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Acer
- Category
- Data Projector
- Model
- PL6610T
- Part numbers
- MR.JR611.001, MR.JR611.002, MR.JR611.003
- EAN / UPC
- 4710180131338, 4710180131321, 4710180131345
- Also known as
- Acer PL6610T Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
66 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 509.8 - 7620 mm (20.1 - 300") |
| Projection distance | 1 - 9.3 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 4400 ANSI lumens |
| Uniformity | 80% |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -+30° |
| Keystone correction, vertical | -+30° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 20.91 - 32.63 mm |
| Aperture range (F-F) | 2.5 - 3.26 |
| Zoom capability | Yes |
| Zoom ratio | 1.61:1 |
| Digital zoom | 2x |
| Throw ratio | 1.4 - 2.24:1 |
| Vertical lens shift range | 103 - 118% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D Ready | Yes |

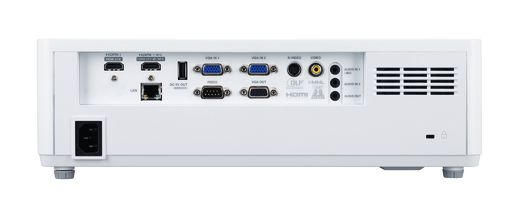

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
| HDBaseT port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 28 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 321 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6 kg |
| Width | 374 mm |
| Depth | 302 mm |
| Height | 117 mm |
| Package width | 520 mm |
| Package depth | 425 mm |
| Package height | 225 mm |
| Package weight | 8.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, HDMI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
