PL3515ATV Large venue projector 5500 ANSI lumens DLP 1080p (1920x1080) White
Model PL3515ATVPart no. MR.JXM11.002EAN 4711474122728
58 specifications
- TypeLarge venue projector
- Weight3.1 kg
- ColourWhite
- Projector brightness5500 ANSI lumens
- Light source typeLaser/LED hybrid
- FocusManual
Overview
- Type
- Large venue projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Laser/LED hybrid
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- PL3515ATV
- Part numbers
- MR.JXM11.002, MR.JXM11.001
- EAN / UPC
- 4711474122728, 4711474122711
- Also known as
- Acer PL3515ATV Large venue projector 5500 ANSI lumens DLP 1080p (1920x1080) White
Specifications
58 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 4:3 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0 - 2 m |
| Contrast ratio (dynamic) | 50000:1 |
| Projector brightness (economic mode) | 4400 ANSI lumens |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | +/- 30° |
| Keystone correction, vertical | +/- 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.8821.88 mm |
| Aperture range (F-F) | 2.59 - 2.87 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.15 - 1.5 |
| Vertical lens shift range | 55 - 65% |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |

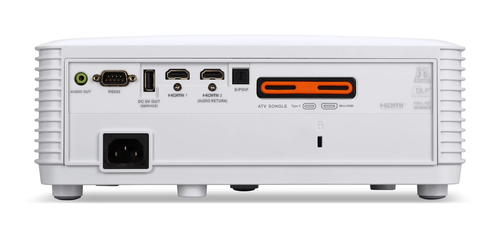

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0b |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 155 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 304 mm |
| Depth | 226 mm |
| Height | 119 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Power |
| Carrying case | Yes |
| Manual | Yes |
