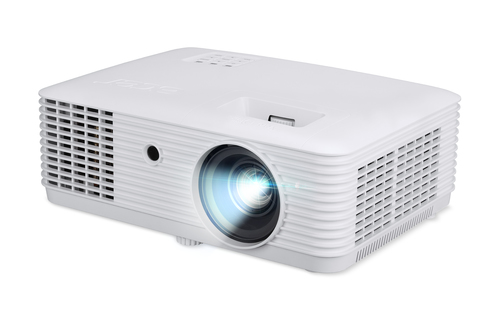

PL3510ATV 5000 ANSI lumens DLP 1080p (1920x1080) White
Model PL3510ATVPart no. MR.JWT11.001EAN 4711121618123
72 specifications
- Noise34 dB
- Weight3 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 34 dB
- Weight
- 3 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- PL3510ATV
- Part numbers
- MR.JWT11.001, MR.JWT11.003
- EAN / UPC
- 4711121618123, 4711121752575
- Also known as
- Acer PL3510ATV 5000 ANSI lumens DLP 1080p (1920x1080) White
Specifications
72 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 50000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 736.6 - 7620 mm (29 - 300") |
| Projection distance | 1 - 7.6 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4000 ANSI lumens |
| Uniformity | 85% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.88 - 21.88 mm |
| Aperture range (F-F) | 2.59 - 2.87 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.15 - 1.5:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |

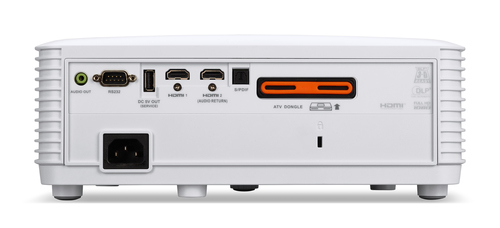

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 3 |
| HDMI connector type | Full-size |
| HDMI version | 2.0b |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| S/PDIF out port | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front |
| High Dynamic Range (HDR) supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 155 W |
| AC input voltage | 100 - 240 V |
| Auto power off | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 304 mm |
| Depth | 226 mm |
| Height | 119 mm |
| Package width | 415 mm |
| Package depth | 17 mm |
| Package height | 297 mm |
| Package weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | HDMI, Power |
| Carrying case | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
