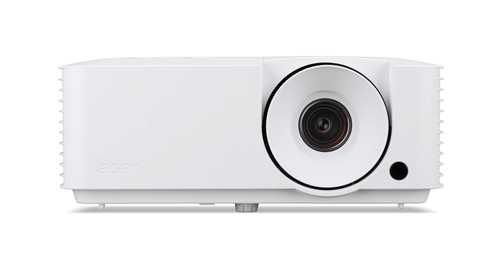

PL2530i Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) White
Model PL2530iPart no. MR.JWU11.001EAN 4711121703928
66 specifications
- Display7.62 m (300")
- Noise26 dB
- TypeStandard throw projector
- Weight2.9 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
Overview
- Display
- 7.62 m (300")
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 2.9 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Brand
- Acer
- Category
- Data Projector
- Model
- PL2530i
- Part number
- MR.JWU11.001
- EAN / UPC
- 4711121703928
- Also known as
- Acer PL2530i Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) White
Specifications
66 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projector brightness | 5000 LED lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 50000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | No |
| Projection distance | 1 - 7.4 m |
| Number of colours | 1.07 billion colours |
| Uniformity | 75% |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamp power | 66 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 21.61 mm |
| Aperture range (F-F) | 2.4 - 2.78 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.3:1 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Digital signal format system | HDTV |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| USB 2.0 Type-A ports quantity | 3 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 26 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| Colour depth | 30 bit |
| Display diagonal | 7.62 m (300") |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 210 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.9 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 115.5 mm |
Packaging content
| Specification | Value |
|---|---|

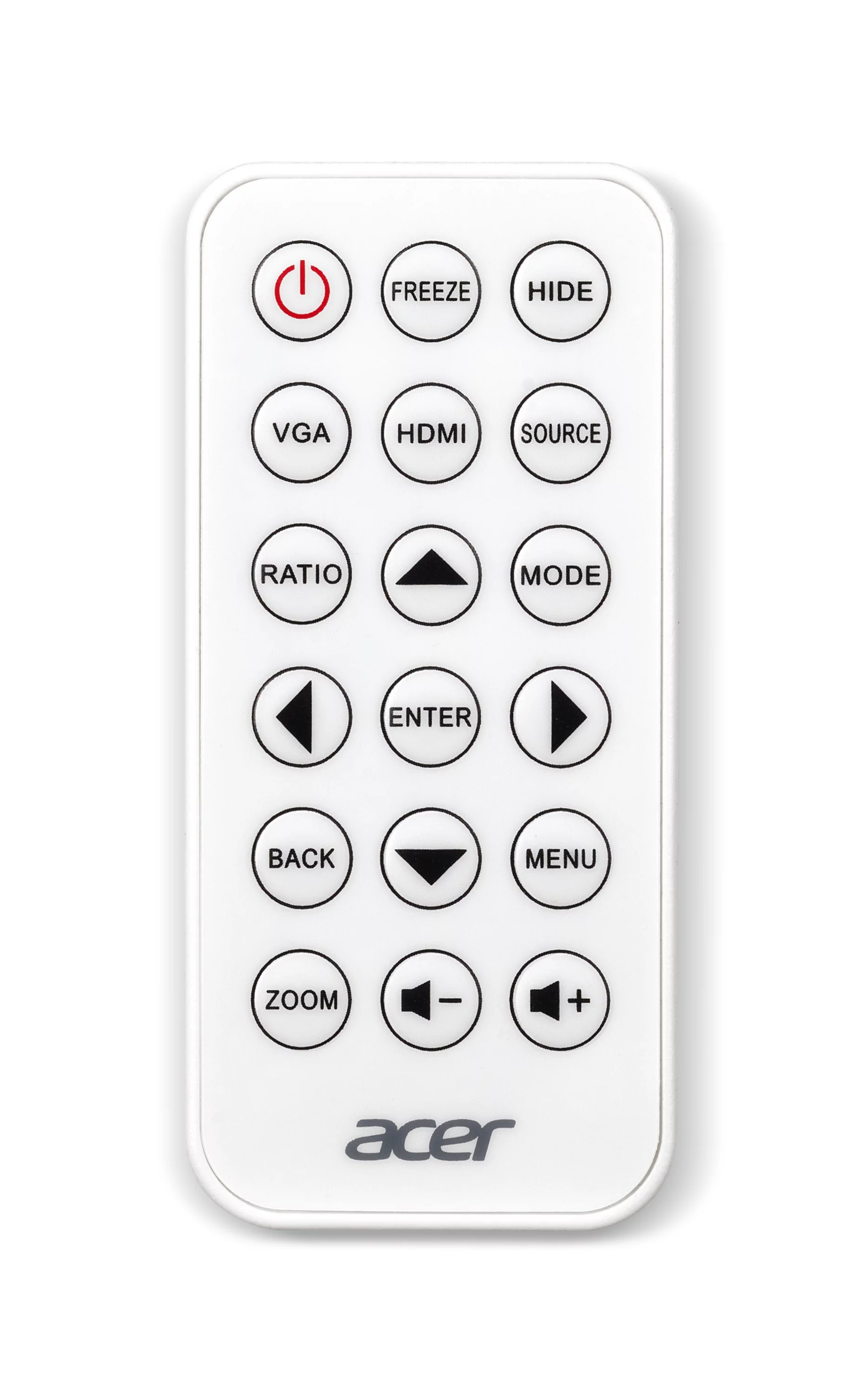

| Remote control included | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| Cables included | AC, HDMI, Power |
| Carrying case | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
