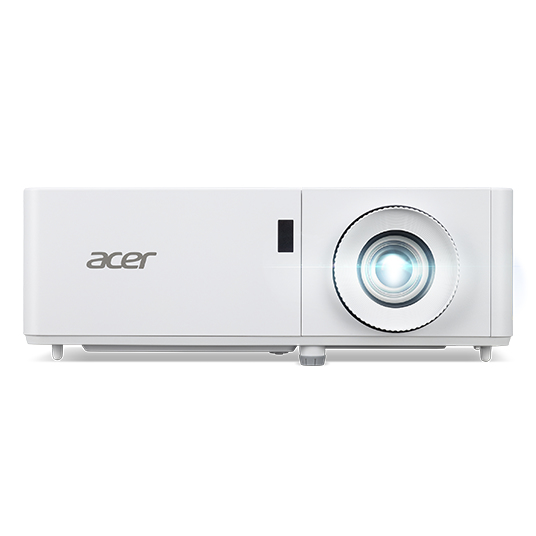

Essential PL1520i Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) White
Model PL1520iPart no. MR.JRU11.003EAN 4710180568028
53 specifications
- TypeStandard throw projector
- Weight4.5 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser
- Focal length range15.98 - 21.42 mm
Overview
- Type
- Standard throw projector
- Weight
- 4.5 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Focal length range
- 15.98 - 21.42 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- PL1520i
- Part number
- MR.JRU11.003
- EAN / UPC
- 4710180568028
- Also known as
- Acer Essential PL1520i Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) White
Specifications
53 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 711.2 - 7620 mm (28 - 300") |
| Projection distance | 1 - 8 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.98 - 21.42 mm |
| Aperture range (F-F) | 2.5 - 2.93 |
| Zoom capability | Yes |
| Throw ratio | 1.21 to 1.59 (1905 mm @ 2000 mm) |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |

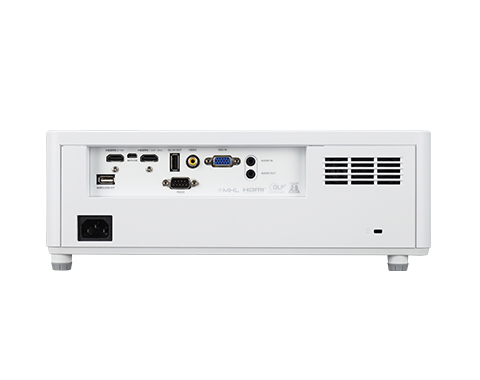

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| Compatible operating systems | Mac PC, Windows PC |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
