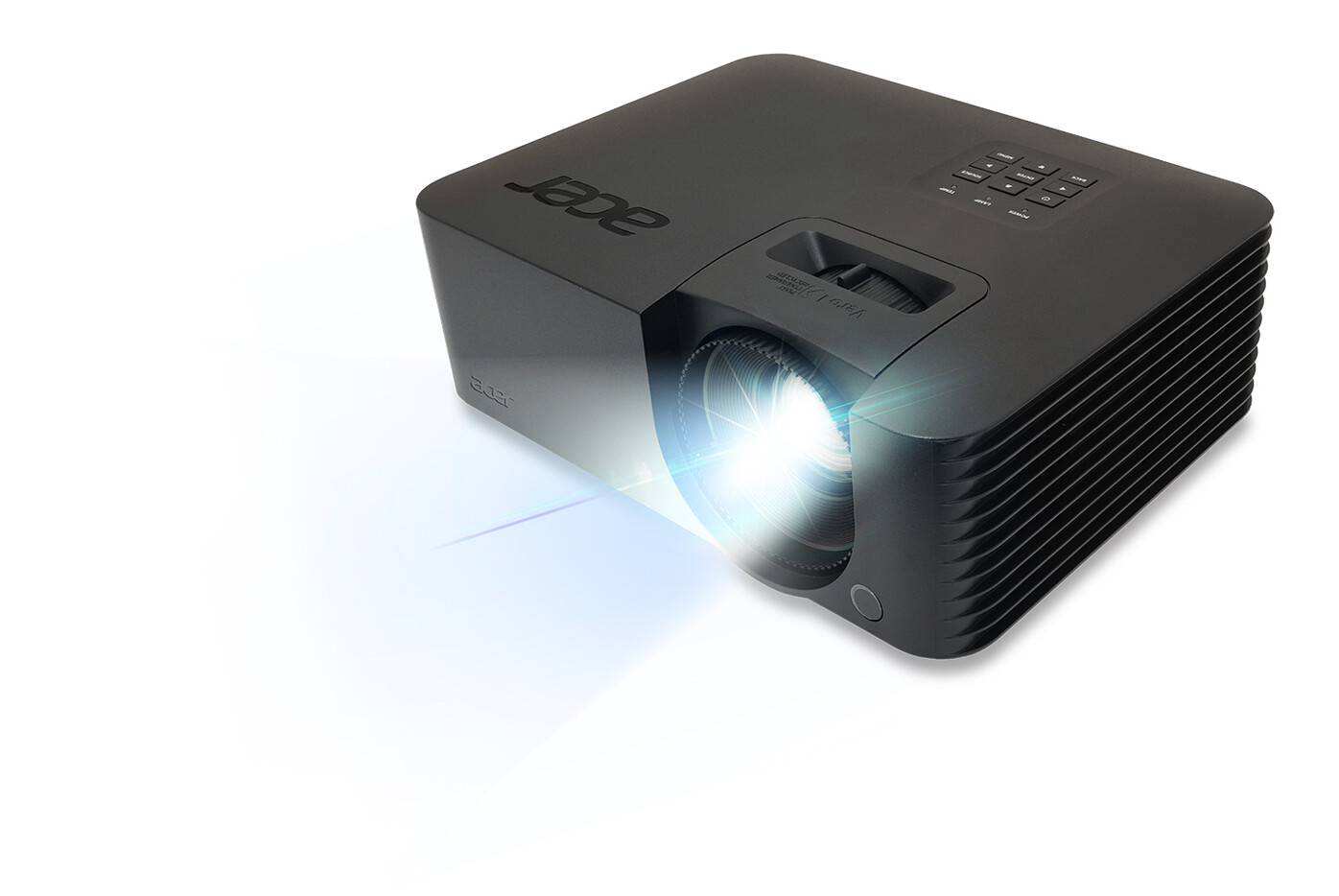

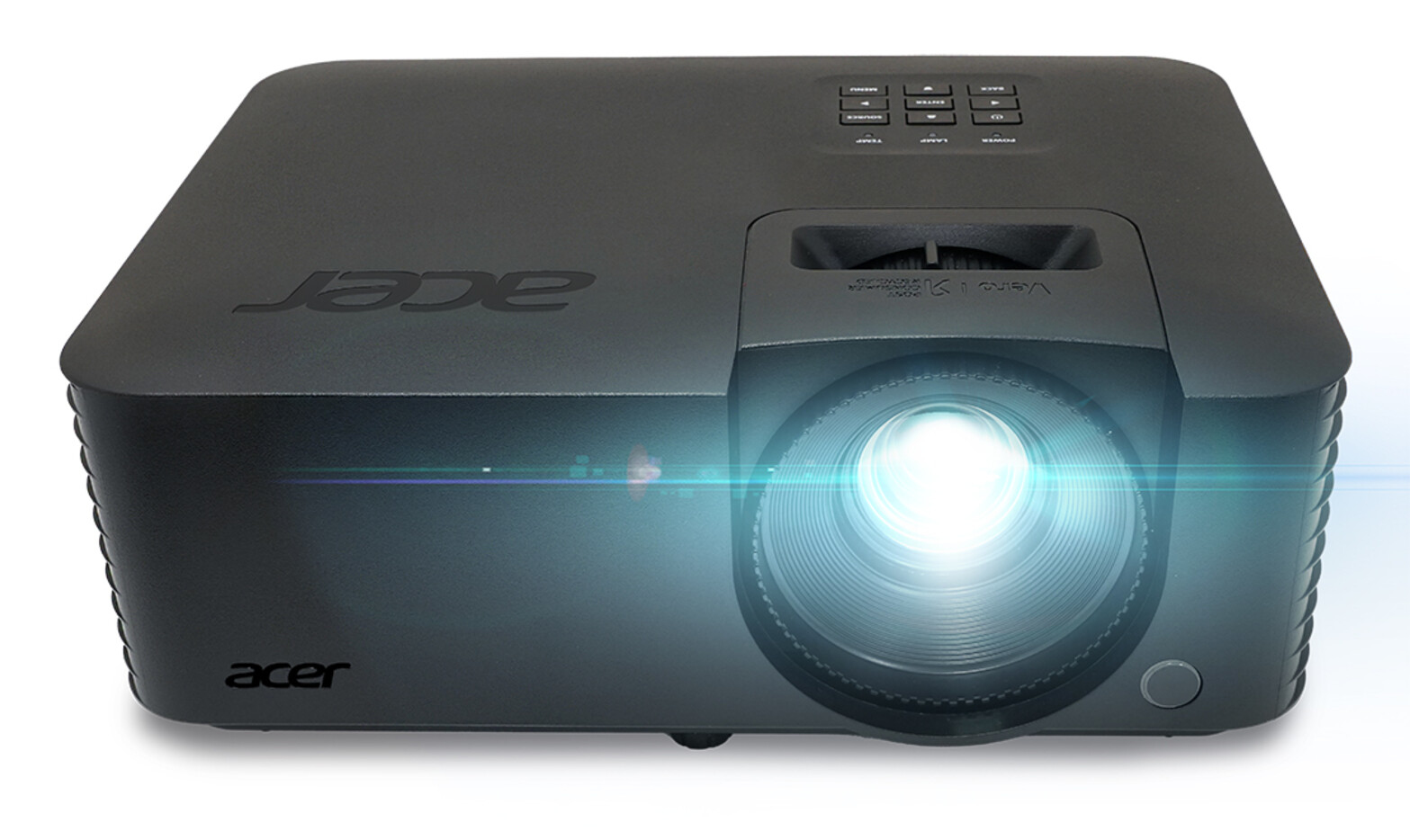

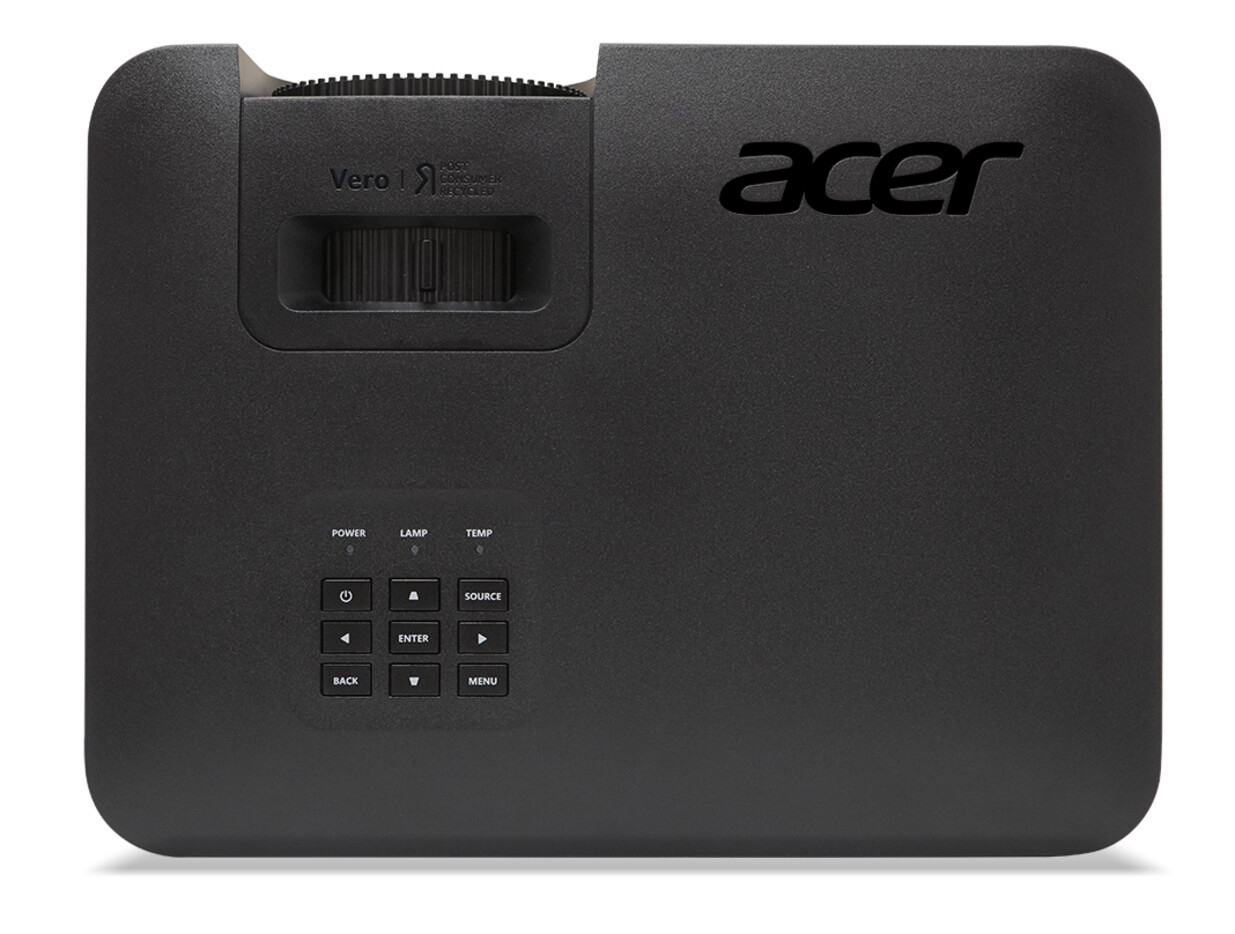

PL Serie - PL2520i
Model PL Serie - PL2520iPart no. MR.JWG11.001EAN 4711121255304
43 specifications
- Noise29 dB
- TypeProjector module
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLaser
- Focal length range2.43 - 2.78 mm
Overview
- Noise
- 29 dB
- Type
- Projector module
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Focal length range
- 2.43 - 2.78 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- PL Serie - PL2520i
- Part number
- MR.JWG11.001
- EAN / UPC
- 4711121255304
- Also known as
- Acer PL Serie - PL2520i Projector module 4000 ANSI lumens DMD 1080p (1920x1080) Black
Specifications
43 specifications in 10 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 13 - 135 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.43 - 2.78 mm |
| Aperture range (F-F) | 2.43 - 2.78 |
| Zoom ratio | 1.3:1 |
| Offset | 116% |

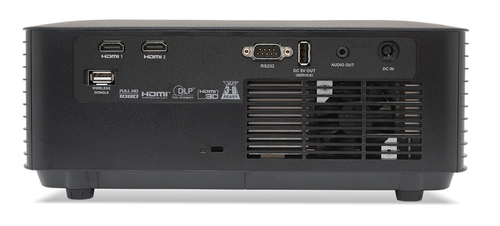

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Noise level | 29 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | Power |
| Carrying case | Yes |
| Manual | Yes |
| Tripod included | No |
| Packaging content | PIN Sicherheitskarte 1x Netzkabel an IEC 320 C13 1x (Euro-Stecker) HDMI Kabel 1x (1,80 m) IR Fernbedienung 1x Linsenkappe 1x Tasche 1x Schnellstartanleitung gedruckt 1x Sonstiges Zubehör 1x Wireless Adapter (UWA5) |
