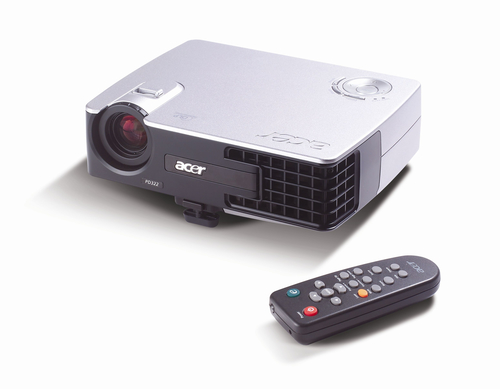

PD322 1600 ANSI lumens DLP XGA (1024x768)
Model PD322Part no. EY.J1901.001EAN 4718235359607
22 specifications
- Display80.5 cm (31.7")
- Resolution1024 x 768 pixels
- Noise34 dB
- Weight1 kg
- Projector brightness1600 ANSI lumens
- Light source typeLamp
Overview
- Display
- 80.5 cm (31.7")
- Resolution
- 1024 x 768 pixels
- Noise
- 34 dB
- Weight
- 1 kg
- Projector brightness
- 1600 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- PD322
- Part number
- EY.J1901.001
- EAN / UPC
- 4718235359607
- Also known as
- Acer PD322 1600 ANSI lumens DLP XGA (1024x768)
Specifications
22 specifications in 8 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 2000:1 |
| Projection distance | 1.5 - 12.2 m |
| Number of colours | 16.78 million colours |
| Horizontal scan range | 15 - 80 kHz |
| Vertical scan range | 50 - 85 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3000 h |
| Lamp type | P-VIP |
| Lamp power | 156 W |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Presentation |
Display
| Specification | Value |
|---|---|
| Display diagonal | 80.5 cm (31.7") |
| Display resolution | 1024 x 768 pixels |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 195 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3 |
| Dimensions (WxDxH) | 200 x 155 x 71 mm |
| Digital keystone correction | +/-8 |
| I/O ports | Computer Input: HDB 15-Pin D-Sub (VGA/Component/HDTV) AV In: Mini DIN for S-Video Input Connector 1 RCA Jack, USB |
