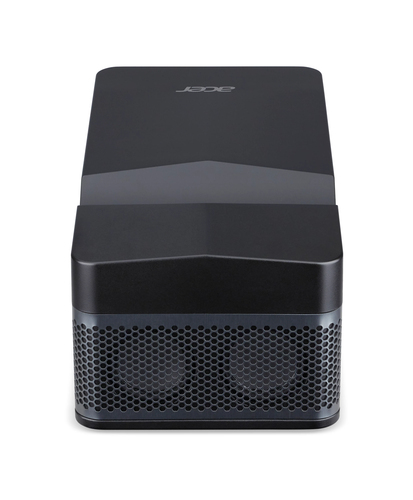

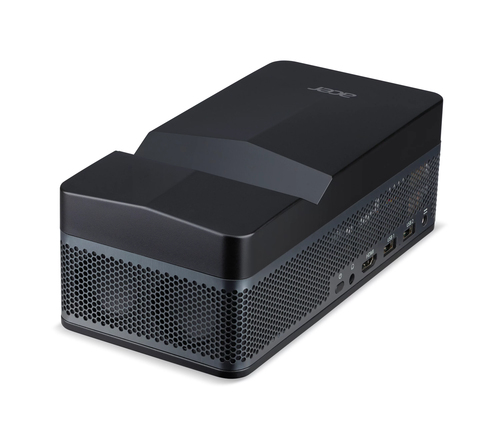

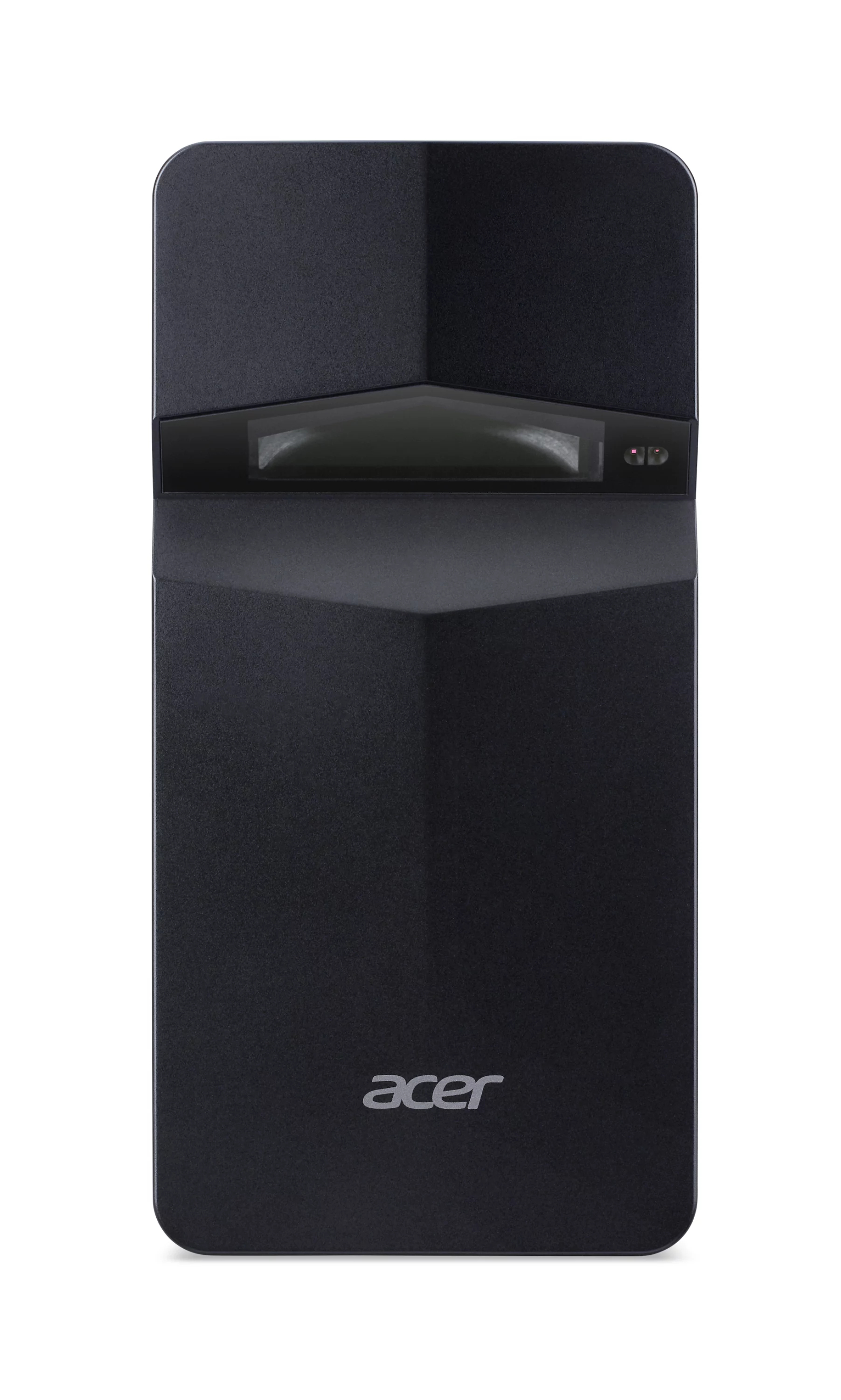

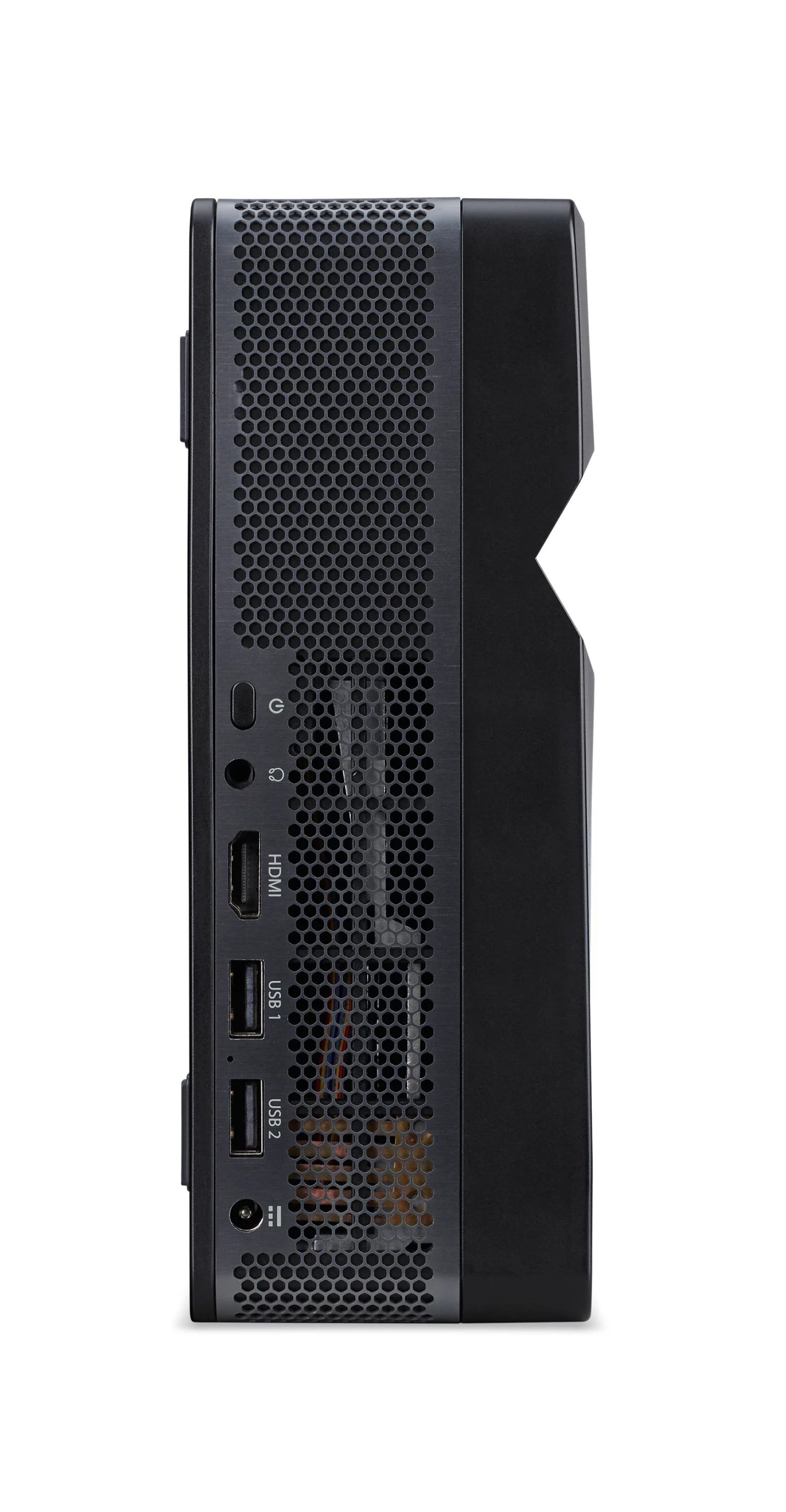

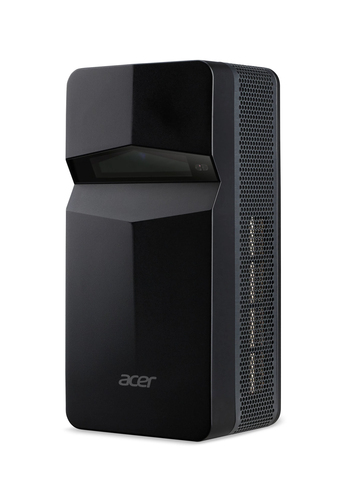

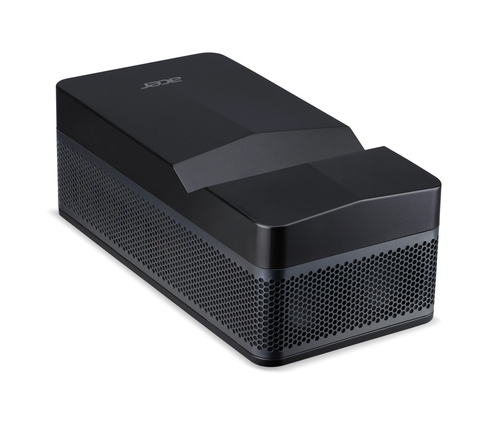

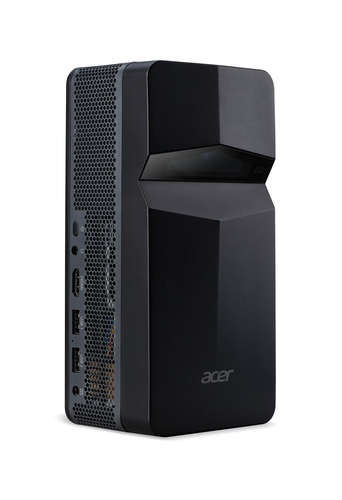

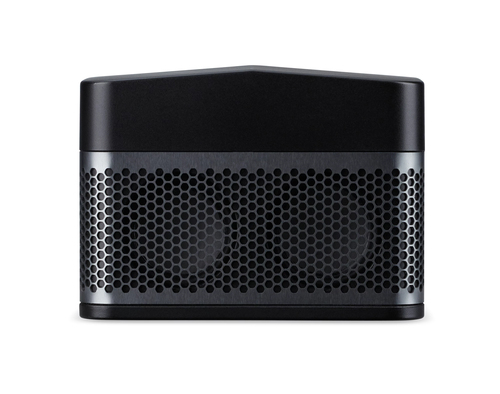

PD1520Us Ultra short throw projector 500 ANSI lumens DLP 1080p (1920x1080) Black
Model PD1520UsPart no. MR.JYE11.003EAN 4711474438676
83 specifications
- ProcessorARM Cortex-A55
- Memory2 GB
- Storage16 GB
- Noise24 dB
- TypeUltra short throw projector
- Weight730 g
Overview
- Processor
- ARM Cortex-A55
- Memory
- 2 GB
- Storage
- 16 GB
- Noise
- 24 dB
- Type
- Ultra short throw projector
- Weight
- 730 g
- Brand
- Acer
- Category
- Data Projector
- Model
- PD1520Us
- Part numbers
- MR.JYE11.003, MR.JYE11.001
- EAN / UPC
- 4711474438676, 4711474442581
- Also known as
- Acer PD1520Us Ultra short throw projector 500 ANSI lumens DLP 1080p (1920x1080) Black
Specifications
83 specifications in 19 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 500 ANSI lumens |
| Projector brightness | 2000 LED lumens |
| Projection technology | DLP |
| Projector brightness | 400 ISO lumens |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 2540 mm (30 - 100") |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 350 ANSI lumens |
| Uniformity | 85% |
| Horizontal scan range | 33.2 - 33.2 kHz |
| Vertical scan range | 50 - 60 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Fixed focal length | 30 mm |
| F-number (relative aperture) | 3 |
| Zoom capability | No |
| Throw ratio | 0.26 (2540 mm@440 mm) |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Digital signal format system | EDTV, HDTV, SDTV |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Miracast | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Internal storage capacity | 16 GB |
| Internal memory | 2 GB |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Noise level | 24 dB |
| HDCP | Yes |
| Projection modes | Front |
| On Screen Display (OSD) | Yes |
| HDCP version | 1.4 |
| AirPlay | Yes |
| Country of origin | China |
| Video apps | Disney+, YouTube |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 6 W |
| Audio formats supported | ACC, FLAC, M4A, M4R, MP3, OGG |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Home cinema |
| Product colour | Black |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC/Battery |
| Power consumption (typical) | 70 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 40 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A55 |
| Processor cores | 4 |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 730 g |
| Width | 190 mm |
| Depth | 94 mm |
| Height | 67 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Warranty card | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | EAC |
| Display diagonal (metric) | 76.2 cm |
| Operating system | Android V9.0 |
Other features
| Specification | Value |
|---|---|
| Audio output | x1, 3.5mm mini jack |
