Value PD1330W Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) White
Model PD1330WPart no. MR.JT911.001EAN 4710180969634
62 specifications
- TypeStandard throw projector
- Weight6 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLED
- Focal length range19.16 - 23.02 mm
Overview
- Type
- Standard throw projector
- Weight
- 6 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- LED
- Focal length range
- 19.16 - 23.02 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- PD1330W
- Part numbers
- MR.JT911.001, MR.JT911.003, MR.JT911.002
- EAN / UPC
- 4710180969634, 4710886074823
- Also known as
- Acer Value PD1330W Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) White
Specifications
62 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Projection distance | 1 - 8.9 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 19.16 - 23.02 mm |
| Aperture range (F-F) | 1.6 - 1.76 |
| Zoom capability | Yes |
| Throw ratio | 1.37 - 1.64 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 1280 x 800 (WXGA), 1920 x 1200 (WUXGA) |

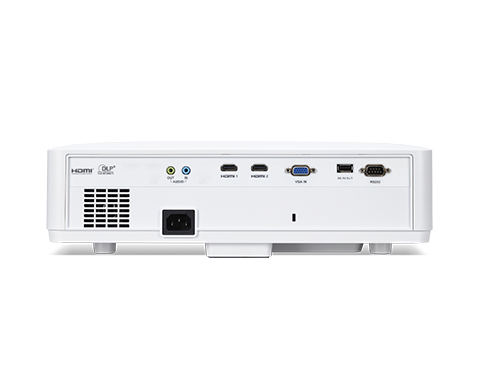

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Mobile High-Definition Link (MHL) | No |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
| Compatible operating systems | MacOS, Windows |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 320 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6 kg |
| Width | 386 mm |
| Depth | 276 mm |
| Height | 101 mm |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
