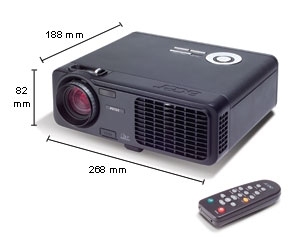

PD125 2000 ANSI lumens DLP XGA (1024x768)
Model PD125Part no. EY.J1601.001
23 specifications
- Noise30 dB
- Weight2.4 kg
- Projector brightness2000 ANSI lumens
- Light source typeLamp
- Digital zoom1.2x
- Number of built-in speakers1
Overview
- Noise
- 30 dB
- Weight
- 2.4 kg
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Lamp
- Digital zoom
- 1.2x
- Number of built-in speakers
- 1
- Brand
- Acer
- Category
- Data Projector
- Model
- PD125
- Part number
- EY.J1601.001
- Also known as
- Acer PD125 2000 ANSI lumens DLP XGA (1024x768)
Specifications
23 specifications in 9 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 2000:1 |
| Projection distance | 1.2 - 12.2 m |
| Number of colours | 16.78 million colours |
| Uniformity | 85% |
| Horizontal scan range | 31.5 - 100 kHz |
| Vertical scan range | 56 - 85 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 2000 h |
| Lamp type | P-VIP |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 1.2x |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
Multimedia
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Design
| Specification | Value |
|---|---|
| Market positioning | Presentation |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 265 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3 |
| Dimensions (WxDxH) | 277 x 237 x 107 mm |
| Digital keystone correction | +/-16° |
| I/O ports | 1 x HDB 15-Pin D-Sub 1 x 3.5mm Audio Mini Jack 1 x RS232 1 x Composite Video RCA Jack 1 x S-Video Mini DIN 1 x 15-Pin D-Sub 1 x USB |
