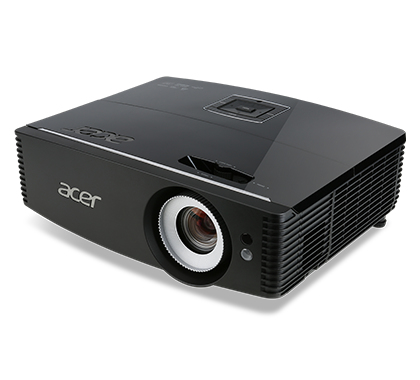

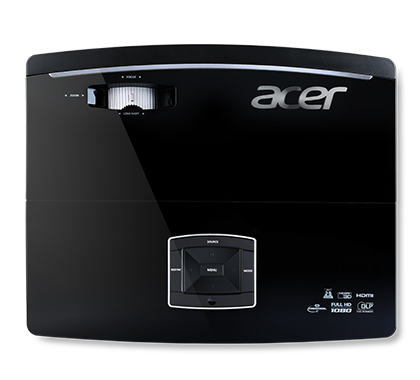

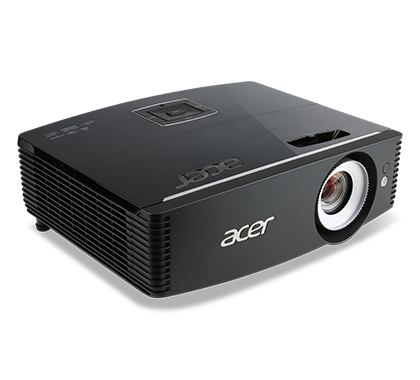

P6600 5000 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Model P6600Part no. MR.JMH11.002EAN 4713392096396
55 specifications
- Noise35 dB
- Weight4.5 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 35 dB
- Weight
- 4.5 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- P6600
- Part numbers
- MR.JMH11.002, MR.JMH11.001+SV.WPRAF.A02, MR.JMH11.001, MR.JMH11.001+SV.WPRAF.A01
- EAN / UPC
- 4713392096396, 4713392096402
- Also known as
- Acer P6600 5000 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Specifications
55 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Projection distance | 1 - 9.1 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30/+30° |
| Keystone correction, vertical | -30/+30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3000 h |
| Service life of light source (economic mode) | 4000 h |
| Lamp type | UHP |
| Lamp power | 365 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 32.6 mm |
| Aperture range (F-F) | 2.5 - 3.26 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |

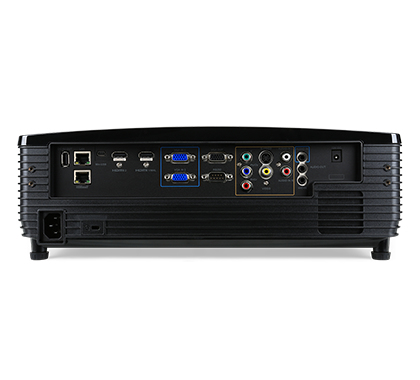

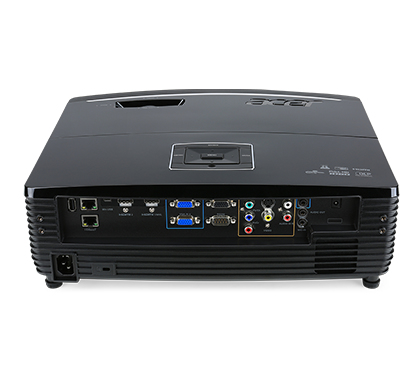

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 4 |
| HDMI ports quantity | 3 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 30 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 460 W |
| Power consumption (economy mode) | 367 W |
| AC input voltage | 100 - 240 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
