P6505 Projector module 5500 ANSI lumens DLP 1080p (1920x1080) Black
Model P6505Part no. MR.JUL11.001EAN 4710886603702
53 specifications
- TypeProjector module
- Weight4.5 g
- ColourBlack
- Projector brightness5500 ANSI lumens
- Light source typeLamp
- Focal length range20.91 - 32.63 mm
Overview
- Type
- Projector module
- Weight
- 4.5 g
- Colour
- Black
- Projector brightness
- 5500 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 20.91 - 32.63 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- P6505
- Part numbers
- MR.JUL11.001, MR.JUL11.002
- EAN / UPC
- 4710886603702, 4710886603719
- Also known as
- Acer P6505 Projector module 5500 ANSI lumens DLP 1080p (1920x1080) Black
Specifications
53 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 508 - 7620 mm (20 - 300") |
| Projection distance | 1 - 9.4 m |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 365 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 20.91 - 32.63 mm |
| Aperture range (F-F) | 2.5 - 3.6 |
| Zoom ratio | 2.0:1 |
| Offset | 66% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |

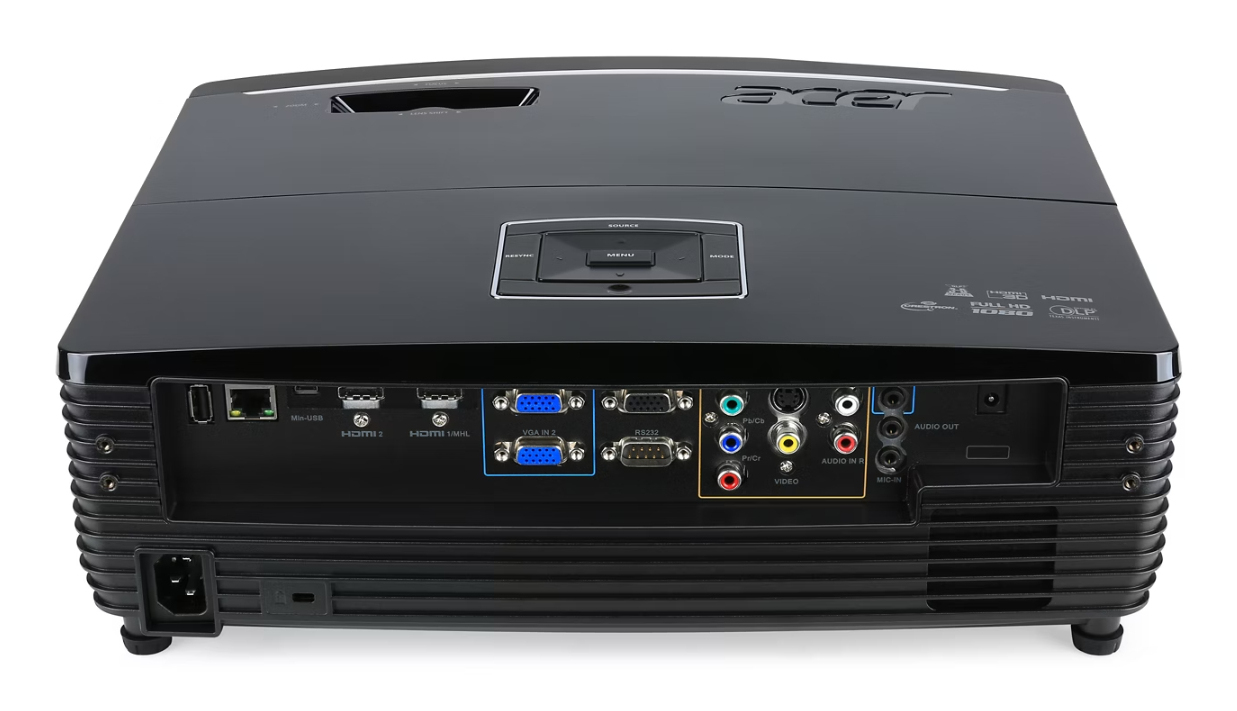

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RJ-45 |
| Composite video out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| Display number of colours | 1.07 billion colours |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 460 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
