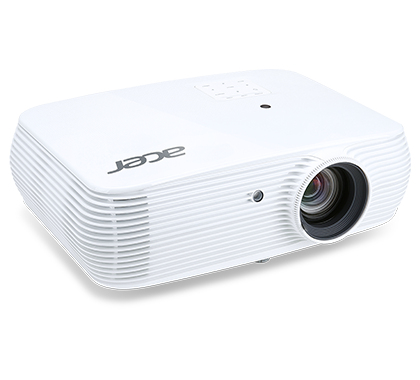

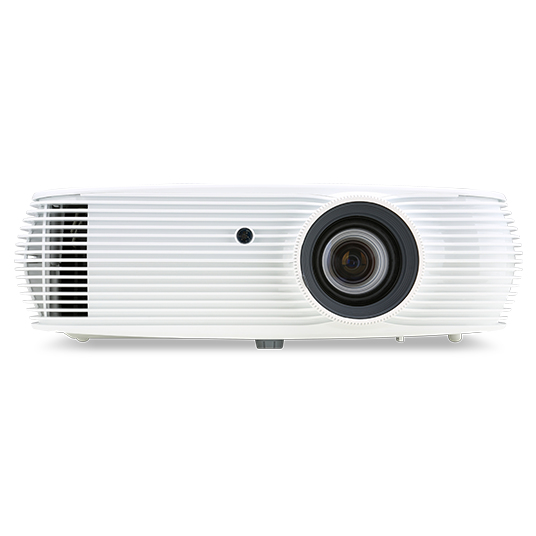

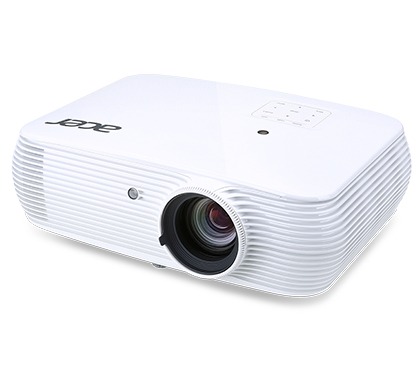

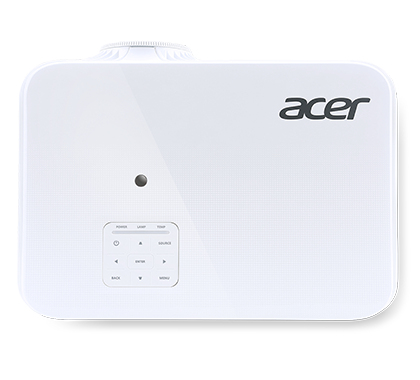

P5535 Standard throw projector 4500 ANSI lumens DLP WUXGA (1920x1200) White
Model P5535Part no. MR.JUM11.001EAN 4710886603740
49 specifications
- TypeStandard throw projector
- Weight2.73 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLamp
- Focal length range16.91 - 21.60 mm
Overview
- Type
- Standard throw projector
- Weight
- 2.73 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 16.91 - 21.60 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- P5535
- Part numbers
- MR.JUM11.001, MR.JUM11.002
- EAN / UPC
- 4710886603740, 4710886603757
- Also known as
- Acer P5535 Standard throw projector 4500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
49 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | No |
| Screen size compatibility | 787.4 - 7620 mm (31 - 300") |
| Projection distance | 1 - 7.5 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 16.91 - 21.60 mm |
| Zoom capability | Yes |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 290 W |
| AC input voltage | 120 - 230 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.73 kg |
| Width | 315 mm |
| Depth | 214 mm |
| Height | 103 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
